Sterilizačná UV lampa vody HyUV 55W pre domácnosti
Kód: DNM_HYUV-S55Podrobný popis

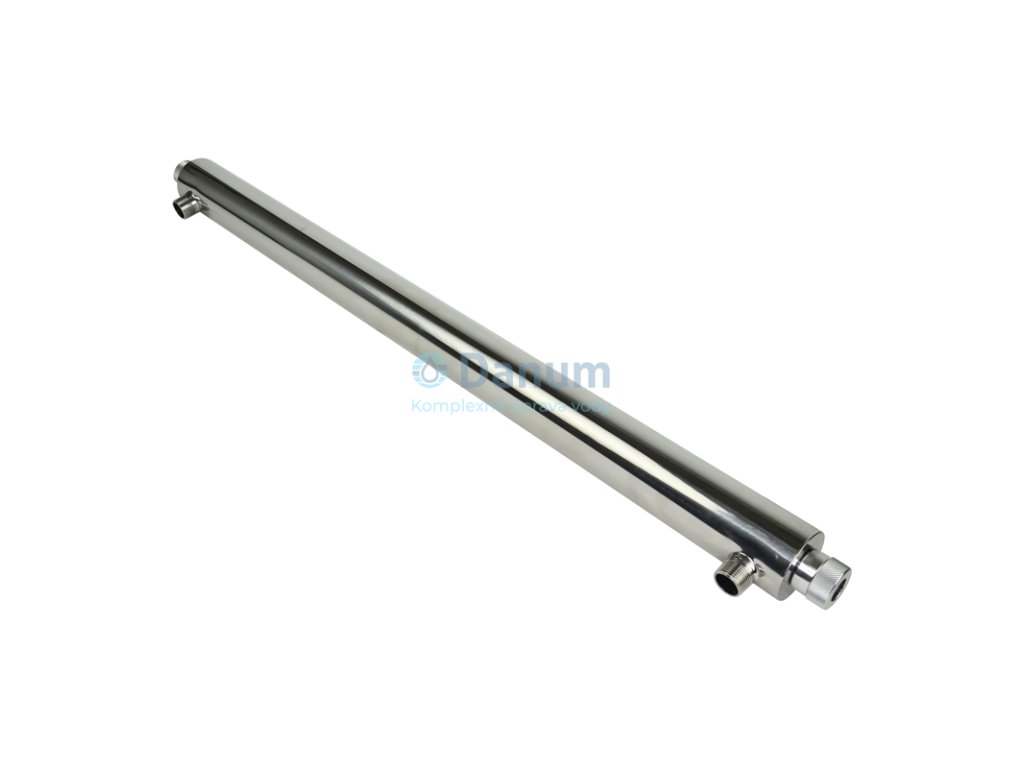

Sterilizačná UV lampa vody HyUV 55W pre domácnosti
Sterilizačná UV lampa HyUV 55W predstavuje spoľahlivé riešenie na dezinfekciu pitnej vody v rodinných domoch, chatách a objektoch zásobovaných zo studne alebo verejného vodovodu. Pomocou UV-C žiarenia účinne inaktivuje baktérie, vírusy a ďalšie mikroorganizmy bez použitia chemických látok. Voda si pritom zachováva svoju prirodzenú chuť, vôňu aj obsah minerálnych látok.
UV dezinfekcia je ekologická, bezpečná a neprodukuje žiadne vedľajšie chemické látky. Pri správne upravenej vstupnej vode predstavuje dlhodobé a bezúdržbové riešenie na zabezpečenie zdravotne nezávadnej pitnej vody pre celú domácnosť.
Prietokové údaje
| Dávka UV žiarenia | Prietok |
| 16 mJ/cm² | < 6,90 m³/h |
| 30 mJ/cm² | < 3,70 m³/h |
| 40 mJ/cm² | < 2,80 m³/h |
| Životnosť | 9 000 hod. | |||||
| Materiál telesa | SS 304 | |||||

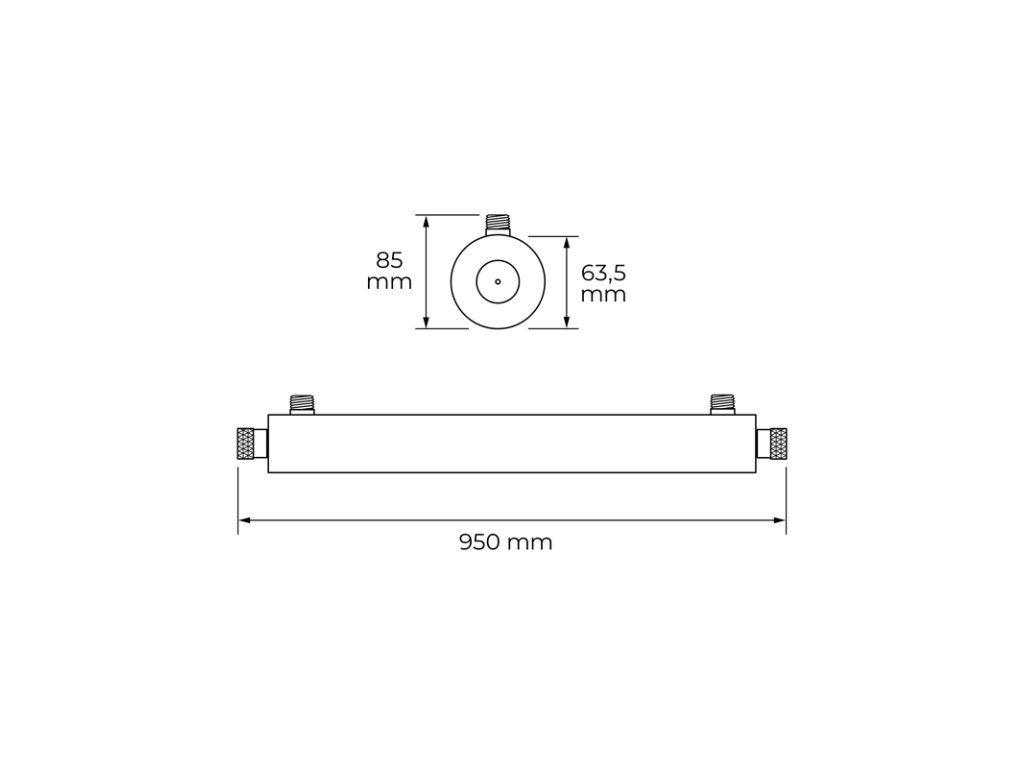

| Rozmery (V׊×H) | 85 × 63,5 × 950 mm | |||||
Hmotnosť
Dodatočné parametre
Hodnotenie tovaruBuďte prvý, kto napíše príspevok k tejto položke. DiskusiaVýpis diskusií
R
Raphael
Dear Sales Team,
My name is Raphael, and I represent *Evodrop Portugal*, a company providing
Swiss-engineered residential and commercial water treatment solutions.
We are currently sourcing a UV-C disinfection system for a residential
whole-house installation in Portugal and are also interested in exploring a
potential long-term B2B supply partnership.
Our requirements are:
-
*Minimum flow:* 45 L/min (2.7 m³/h) at a verified UV dose of at least 40
mJ/cm²
-
*Connection:* Preferably 1-inch BSP
-
*Power:* 220–240 V, 50 Hz
-
*Application:* Whole-house drinking-water disinfection
-
*Construction:* Stainless-steel reactor, with replaceable UV lamps
Could you please provide:
1.
Your recommended model, technical datasheet, UV dose/flow performance
and applicable certifications.
2.
Your retail price and B2B distributor pricing.
3.
Replacement lamp prices, maintenance requirements and spare-parts
availability.
4.
Stock availability, delivery time and shipping costs to Portugal.
5.
Your conditions for a potential reseller or distribution partnership.
We have an active residential project and would welcome the opportunity to
discuss broader cooperation if your products are a good technical and
commercial fit.
Thank you in advance. I look forward to your response.
Best regards,
*Raphael Kiepura *Founder - CTO
[email protected]
Direct: +421 917 133 662
* Evodrop Portugal LDA*
This correspondence may contain confidential or proprietary information.
Only the intended recipient is authorized to read, copy or otherwise use
this communication. If you have received this communication in error,
please delete it and any copies and notify us immediately.
A
ATRIA.SK
Dear Raphael,
from our range, the model that meets your flow requirement is the HyUV 55W UV Water Sterilization Lamp for Households (stainless-steel SS 304 reactor, replaceable UV lamp):
https://www.atriashop.eu/hyuv-55w-uv-water-sterilization-lamp-for-households/
Flow vs. UV dose (manufacturer's data):
- 16 mJ/cm²: up to 6.9 m³/h
- 30 mJ/cm²: up to 3.7 m³/h
- 40 mJ/cm²: up to 2.8 m³/h (your 45 L/min = 2.7 m³/h is therefore covered, with a small reserve only)
Other data: power consumption 55 W, connection 3/4" (not 1"; a reducer or adapter would be needed on your side), max. water pressure 6.8 bar, water temperature 2 – 40 °C, lamp life 9,000 hours, dimensions 85 × 63.5 × 950 mm, weight in the product description.
Prices (sales price per piece):
- HyUV 55W UV lamp unit: 139,76 € excl. VAT (171,90 € incl. VAT)
- Replacement UV lamp HyUV 55W (for HyUV-S55 and S165): 36,51 € excl. VAT (44,91 € incl. VAT)
https://www.atriashop.eu/replacement-uv-lamp-hyuv-55w-for-uv-lamps-hyuv-s55-and-s165/
Maintenance: the UV lamp should be replaced after its service life of 9,000 hours; the replacement lamp is a standard stock item.
Availability: both items are in stock at our supplier and delivery is approximately 3 – 7 days. We sell against a proforma invoice and ship after it is paid. The shipping cost to Portugal depends on weight, dimensions and delivery method and is shown on the proforma invoice.
For reseller / distribution conditions and wholesale pricing, please contact our export department directly: Lenka Chobotová, [email protected], +421 917 133 662.
