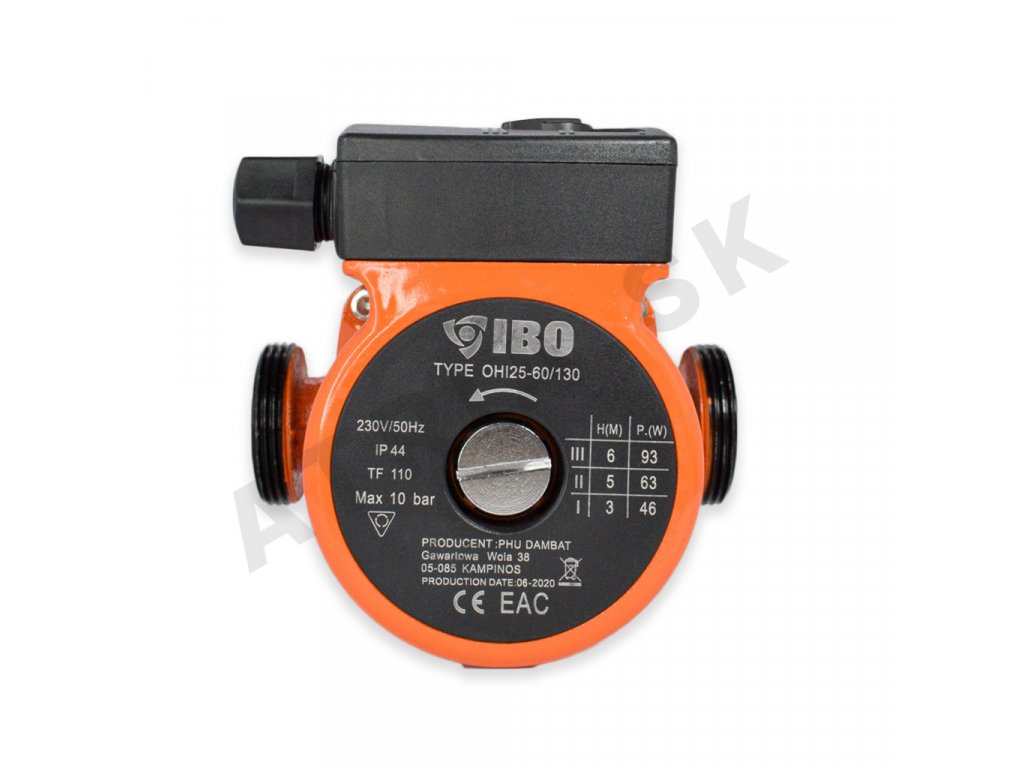

IBO OHI 25/60-130

• Autor:

  hroch hrochovic

  Dátum:

  12. 4. 2017



  Bezproblemove dodanie,po namontovani prekvapivo tichy chod,pretoze nim nahanam iba jeden(vacsi) radiator,aj pri najnizsom stupni stale dost velky prietok - vyziadalo si doplnkovy termostat,priamo na vystupe radiatora,aby neslo trvale - inak ovplyvnovanie zvysku samotazneho systemu. Za mna 99% vyrobok,-1% len pre zbytocne velky vykon.

• Autor:

  ATRIA.SK

  Dátum:

  13. 4. 2017



  Ďakujeme, sme radi, že ste s výrobkom spokojný :)

• Autor:

  pajo

  Dátum:

  28. 2. 2017



  rychle dorucenie, za tu cenu slusna kvalita

• Autor:

  ludo

  Dátum:

  29. 12. 2016



  cerpadlo vyzera dobre a dufam ze aj tak pojde

• Autor:

  milan

  Dátum:

  16. 12. 2016



  cerpadlo tiche, spolahlive, kvalitne

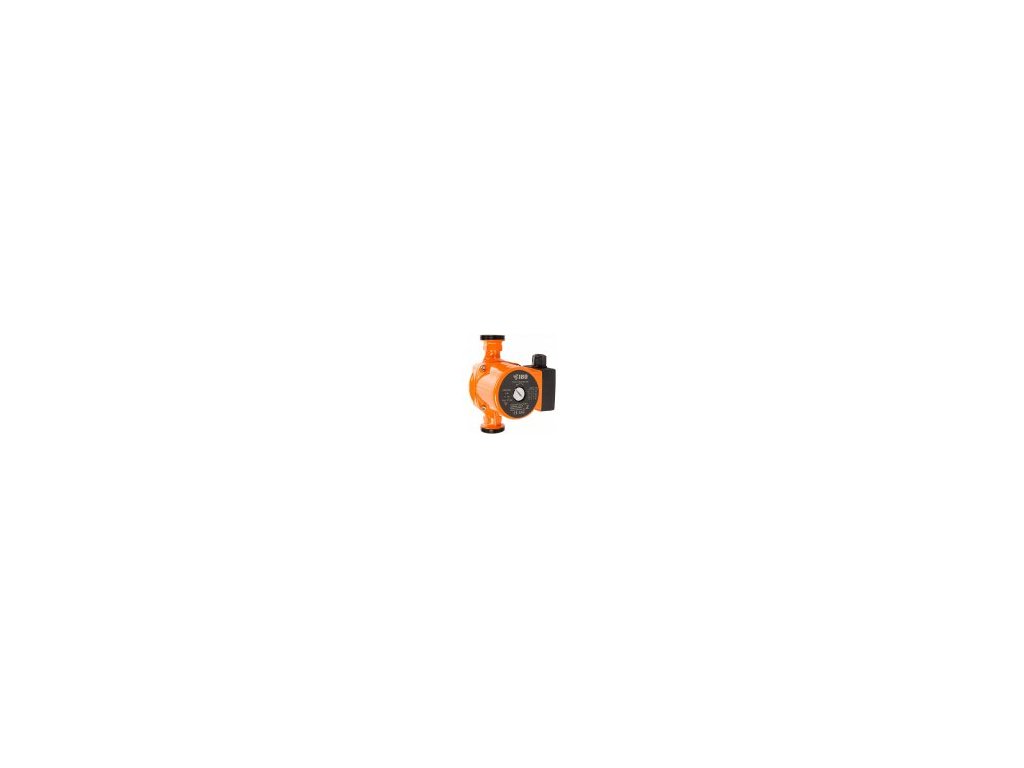

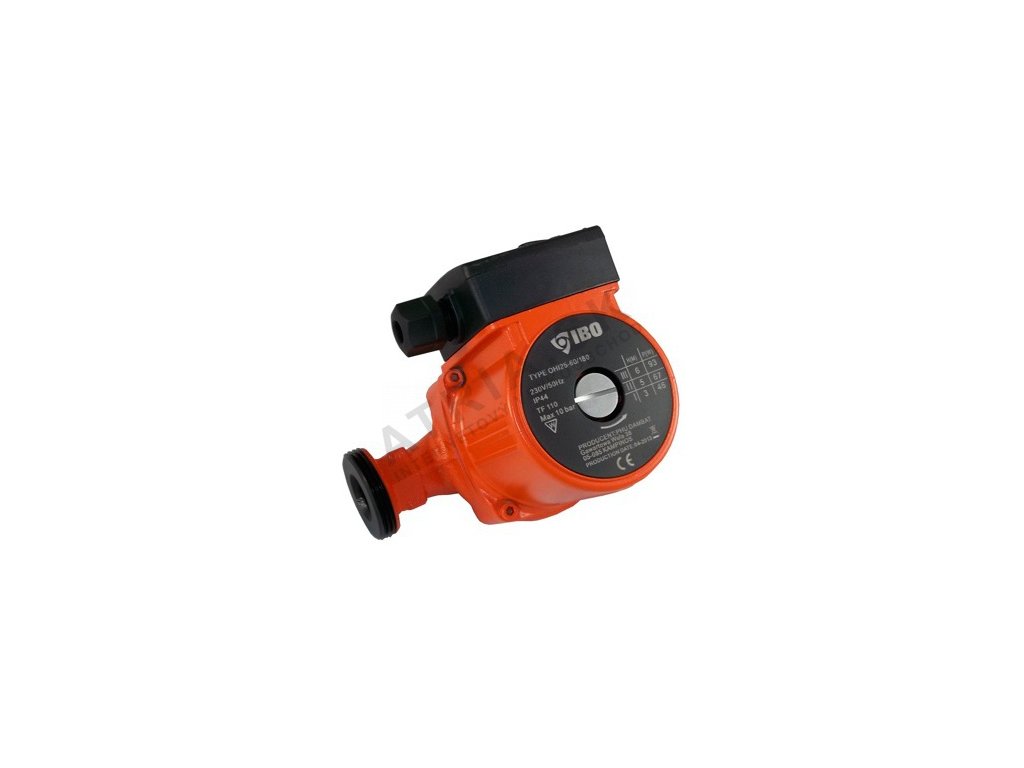

Circulating pump for heating systems IBO OHI 25/40-180

Circulating pumps IBO Ohi are equipped with a switch of 3 speeds of mechanical rotation of motor. This nesures optimal electricity consuption that depends on the specific conditions of the heating in the house.

Main advantages of the circulating pumps of OHI model series:

 • power saving and economy of boiler fuel
 • standart measurments
 • ease of installation and use
 • long failure-free performance
 • materials and parts are resistant agains aggressive water enviroment and do not require additional maintenance
 • pump design allows to separate control unit from the pump in case of failure or maintenance
 • quiet performance even in high speeds due to the materials used

Technical parameters:

 • material: cast iron
 • bearing material: ceramics
 • input: 220-230V / 50Hz
 • rated: 0,41 A
 • performace based on speed level (1/2/3): 46W / 63W / 93W
 • max flow based on sleed level (1/2/3): 22L/min / 38L/min / 55L/min
 • fluid temperature: 2-110 °C
 • max pressure: 10 bar
 • protection: IP44
 • delivery: 6 m
 • length: 130 mm
 • pipe: 1" / DN25
 • connection: 1 1/2" (6/4")
