IBO OHI 25/60-180

• Autor:

  Peter

  Dátum:

  16. 4. 2020



  Vcelku fajn, len by mohlo byt pribalene aj tesnenie.

• Autor:

  ivan

  Dátum:

  23. 11. 2017



  som spokojný,rýchle vybavenie

• Autor:

  Eugen

  Dátum:

  2. 12. 2016



  dobré čerpadielko - dobre že predávate kvalitné výrobky a nie šmejdy - vydržte s touto kvalitou

• Autor:

  milan

  Dátum:

  11. 7. 2016



  dobre a tiché čerpadlo, za tu cenu som čakal horšie inač. ale dobre

• Autor:

  igor

  Dátum:

  26. 11. 2015



  vynikajuce cerpadlo za tu cenu dokonca sa mi zda ze je tichsie ako elektronicke od inych vyrobcov co montujem

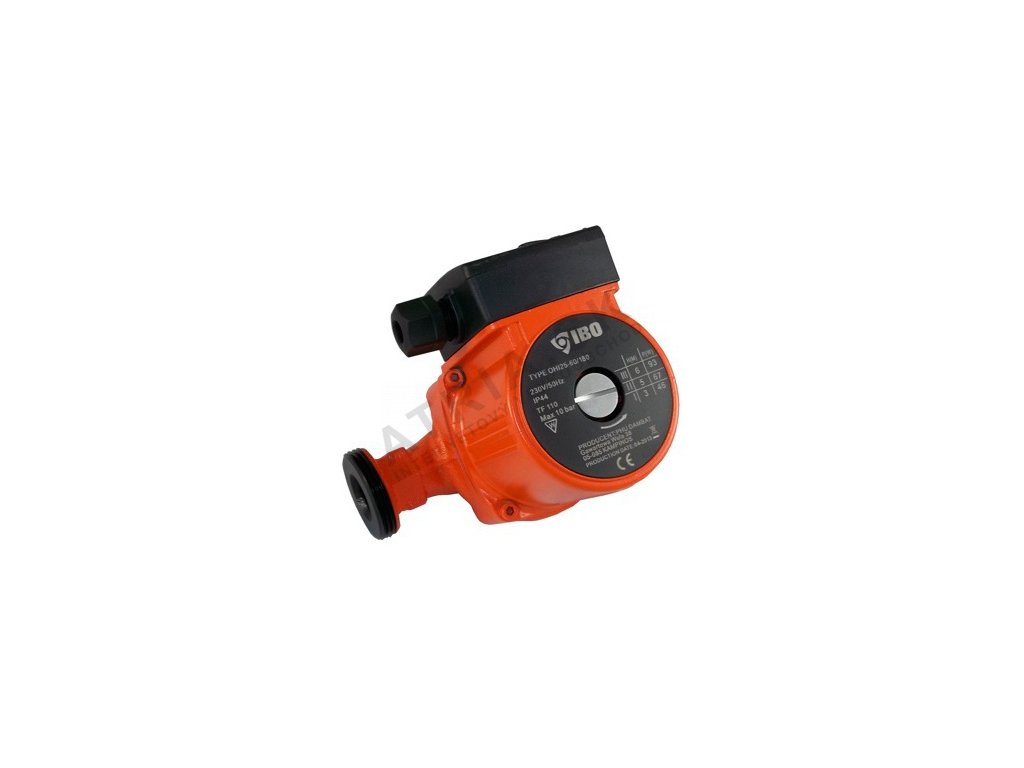

Circulating pump for heating systems IBO OHI 25/40-180

Circulating pumps IBO Ohi are equipped with a switch of 3 speeds of mechanical rotation of motor. This nesures optimal electricity consuption that depends on the specific conditions of the heating in the house.

Main advantages of the circulating pumps of OHI model series:

 • power saving and economy of boiler fuel
 • standart measurments
 • ease of installation and use
 • long failure-free performance
 • materials and parts are resistant agains aggressive water enviroment and do not require additional maintenance
 • pump design allows to separate control unit from the pump in case of failure or maintenance
 • quiet performance even in high speeds due to the materials used

Technical parameters:

 • material: cast iron
 • bearing material: ceramics
 • input: 220-230V / 50Hz
 • rated: 0,41 A
 • performace based on speed level (1/2/3): 46W / 63W / 93W
 • max flow based on sleed level (1/2/3): 22L/min / 38L/min / 55L/min
 • fluid temperature: 2-110 °C
 • max pressure: 10 bar
 • protection: IP44
 • delivery: 6 m
 • length: 180 mm
 • pipe: 1" / DN25
 • connection: 1 1/2" (6/4")
