Insulated connection kit for installation of uniTOWER Split plus in rooms with low ceiling height, minimum 2.1 m, left

Product detailed description

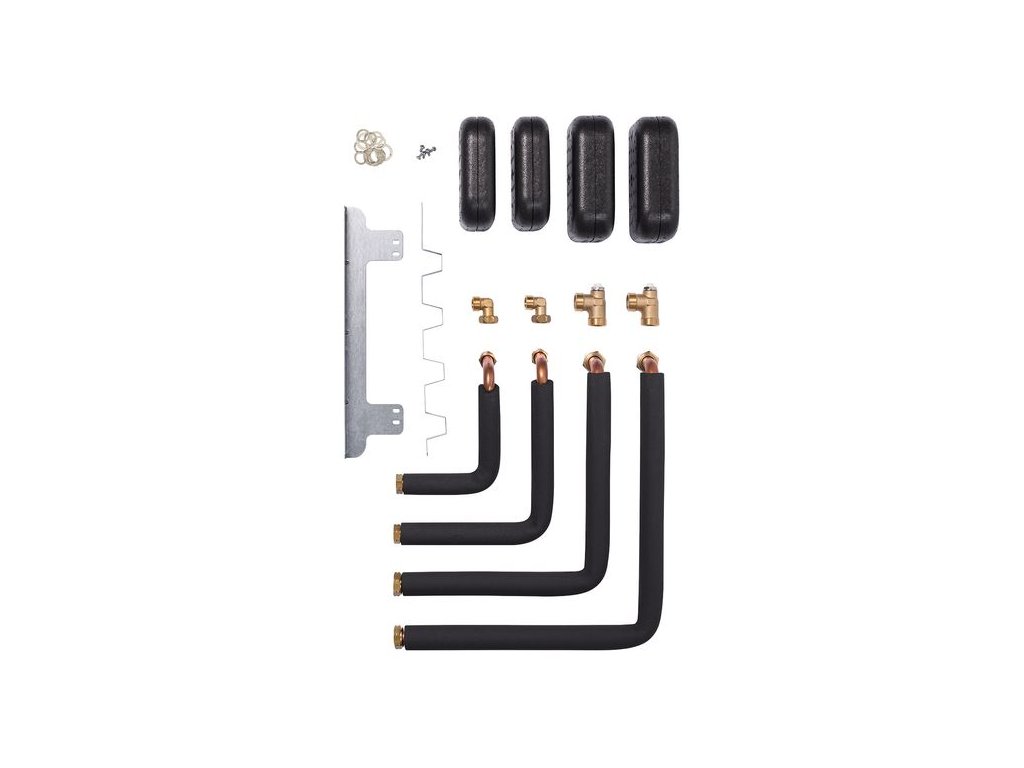

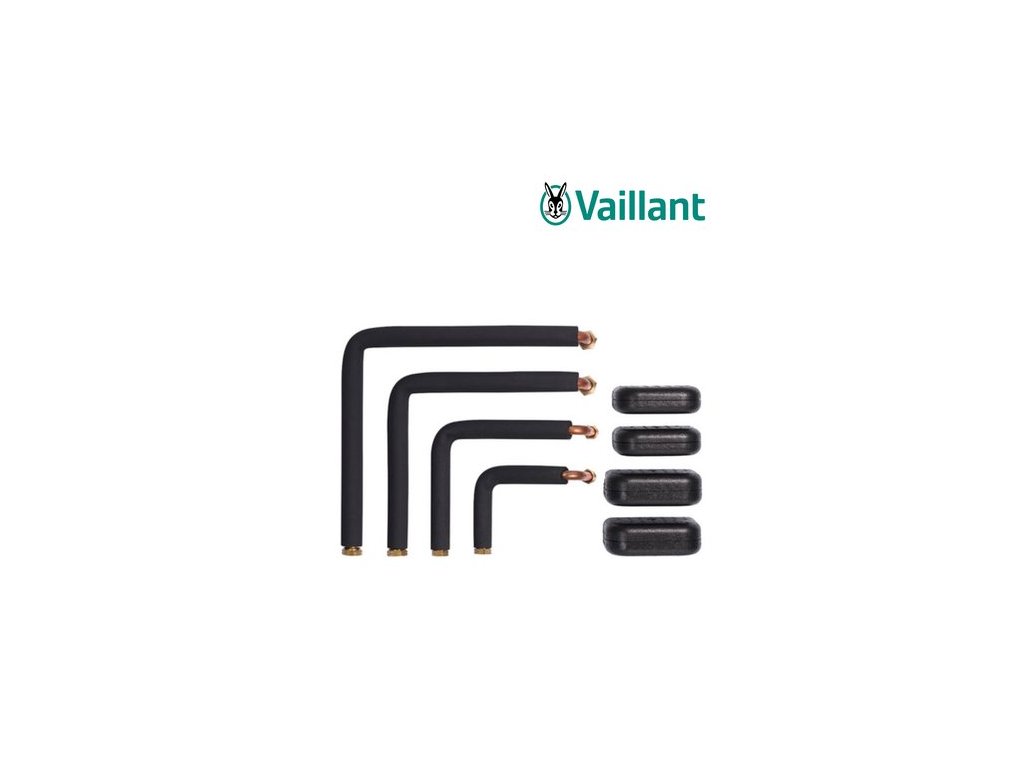

Insulated connecting set for installation of uniTOWER Split plus, left-hand version, for rooms with low ceiling height (minimum 2.1 m).

The Vaillant uniTOWER system (in both plus and Split plus versions) is a compact hydraulic module in the shape of a tower with a footprint comparable to a standard refrigerator, which in one enclosure combines a hot water tank with a volume of 190 l, a complete heating hydraulic system, a backup electric heater and a control unit. The module is connected to the outdoor (or indoor, in the case of the Split version) unit of the air-to-water heat pump in the aroTHERM / aroTHERM plus / aroTHERM Split system and is responsible for distributing heat to the heating circuit and preparing hot water. That is why, since most of the components are integrated directly into the tower body, Vaillant offers a range of supplementary, connecting and service parts for the module, which allow the hydraulics to be adapted to a specific installation – ceiling height, side of connection, need for hot water circulation or additional hydraulic separation of circuits.

Heat pump aroTHERM and location of the module in the system

Heat pumps of the aroTHERM / aroTHERM plus / aroTHERM Split range extract heat from the air even at low outdoor temperatures and transfer it to the heating circuit and to the hot water tank via the uniTOWER module. Since, compared to a gas boiler, lower temperatures of the heating water are used and greater emphasis is placed on the correct hydraulic balancing of the entire circuit, the quality and compatibility of each individual hydraulic component – including expansion vessels, circulation and connecting sets – is directly linked to the overall efficiency and quiet operation of the system. The use of non-original or incorrectly dimensioned components can negatively affect both the hydraulic balance and the declared performance coefficient (COP) of the system.

Composition of the delivery and packaging

The part is delivered in the original Vaillant packaging, which protects the connecting threads and sealing surfaces from damage during transport. The delivery always includes the necessary assembly documentation (installation instructions) in a language supported by the manufacturer, based on which the service technician will verify the correct sequence of assembly steps, tightening torques of connections and the method of testing tightness after connection.

Lifespan, service and preventive maintenance

The hydraulic components of the uniTOWER module are designed for long-term maintenance-free operation. Nevertheless, we recommend that, as part of the regular annual service inspection of the heat pump, you also have this part checked – especially the tightness of the connections, any signs of corrosion or leakage of the medium and the functionality of the associated valves. Early preventive inspection prolongs the life of the entire system and reduces the risk of unplanned heating or hot water preparation shutdowns, especially during the winter period.

What the set is used for

This is a mirrored, left-hand version of the low-profile insulated connecting set for the uniTOWER Split plus module (as opposed to the right-hand version with code 8000012566). The choice of side depends on the actual arrangement of the connecting pipelines in the specific technical room – that is, from which side of the module the heating circuit and hot water distribution pipes come. The set, like the right-hand version, is equipped with pipe thermal insulation.

Technical parameters

• Type: connecting set for low ceilings, insulated version
• Version: left
• Minimum clear room height: 2.1 m
• Application: uniTOWER Split plus module
• Thermal insulation of the pipe reduces losses and the risk of condensation

How to correctly determine the side (left/right)

The side is determined by standard from the perspective of the installation technician standing facing the uniTOWER module, according to which side the connecting pipes are led out from the floor or wall of the technical room. Since these are structurally different, mirror-shaped parts, swapping sides when ordering means that the set will not be usable without additional modifications – therefore, before ordering, we recommend that the side be confirmed by the installation technician on site.

Installation and assembly

The part is intended for installation into the body of the uniTOWER module and its installation may be carried out only by a trained service technician with Vaillant authorization. Incorrectly installed or incorrectly assembled hydraulic circuit can cause leaks, reduced system efficiency or invalidation of the warranty on the entire device. Therefore, before ordering, we recommend having the project documentation available or at least a photograph of the actual installation state and the exact type of the uniTOWER module (including the performance range and plus/Split plus version), because individual connecting sets differ from each other in side version and type of sealing.

Related accessories for the uniTOWER module

• Expansion vessel 8 l for hot water (TÚV) (code 0020170500)
• Set with TV circulation pump (code 0020170503)
• Set with TV circulation pump for Split plus (code 0010038384)
• Circulation connecting set without pump (code 0010042664)
• Make-up set (code 0010038388)
• Make-up set with thermostatic mixing valve (code 0010038386)
• Non-insulated connecting set (low ceilings, right) (code 0010039993)
• Insulated connecting set (low ceilings, right) (code 8000012566)
• Insulation covers for connecting valves (2 pcs) (code 0010042662)
• Connecting adapter 1" / 28 mm – nut (2 pcs) (code 0010038385)
• Hydraulic separation module for uniTOWER /7 (code 0010039991)
• Expansion vessel 2 l for separation module /7 (code 0010040112)
• Internal unit connection Presfitting (code 0010027979)
• Connecting adapter 1" / 28 mm – external thread (2 pcs) (code 0010039178)

Frequently asked questions

Why is the left version slightly more expensive in the price list than the right one?
The price difference between the individual side and insulation versions comes directly from the manufacturer's price list; it is due to slightly different production costs of the individual versions.

Can I verify the side myself without a technician?
We recommend consultation with a technician, as incorrect determination of the side when ordering this type of part is one of the most common causes of complaints with similar connecting sets.

Is this set compatible with the standard (non-split) uniTOWER module?
No, the set is intended exclusively for the uniTOWER Split plus.

Why order this part from atria.sk

We are a specialized e-shop focused on heating technology, heat pumps and related accessories, including less common service and supplementary parts that cannot be found in standard hobby stores. By ordering from us, you are assured that it is an original Vaillant part delivered through an authorized distributor, not an unverified replacement from an unknown source. For larger orders of related accessories (for example, a complete connecting set together with an expansion vessel and a make-up set), we will gladly prepare a joint offer and recommendation based on the type of your specific uniTOWER module.

Our sales representatives are in regular contact with service technicians and installation companies that actually carry out the installation of uniTOWER modules and aroTHERM heat pumps in the field – thanks to this, we can choose the correct part not only based on catalog data, but also on practical experience with specific types of connections. If you are unsure which exact variant of the part (for example, side of connection, insulated or non-insulated version) your system requires, do not hesitate to contact us before sending your order – this will help you avoid possible exchange or return of the goods.

Warranty, supplier and support

We provide a 2-year warranty on this original Vaillant part. The product is delivered by an authorized Vaillant partner for the Slovak market, the company WINTNER s.r.o., which guarantees the authenticity of the part and its full compatibility with other components of the uniTOWER system. When ordering, we recommend specifying the exact designation and side version of the installed uniTOWER module (type, performance range, plus / Split plus version), so that we can verify 100% match of the part before dispatch. In case of any uncertainties when selecting the correct part or when planning the installation, we will gladly advise you by phone or email – contact our sales department before ordering if you are unsure about compatibility with your specific model.
