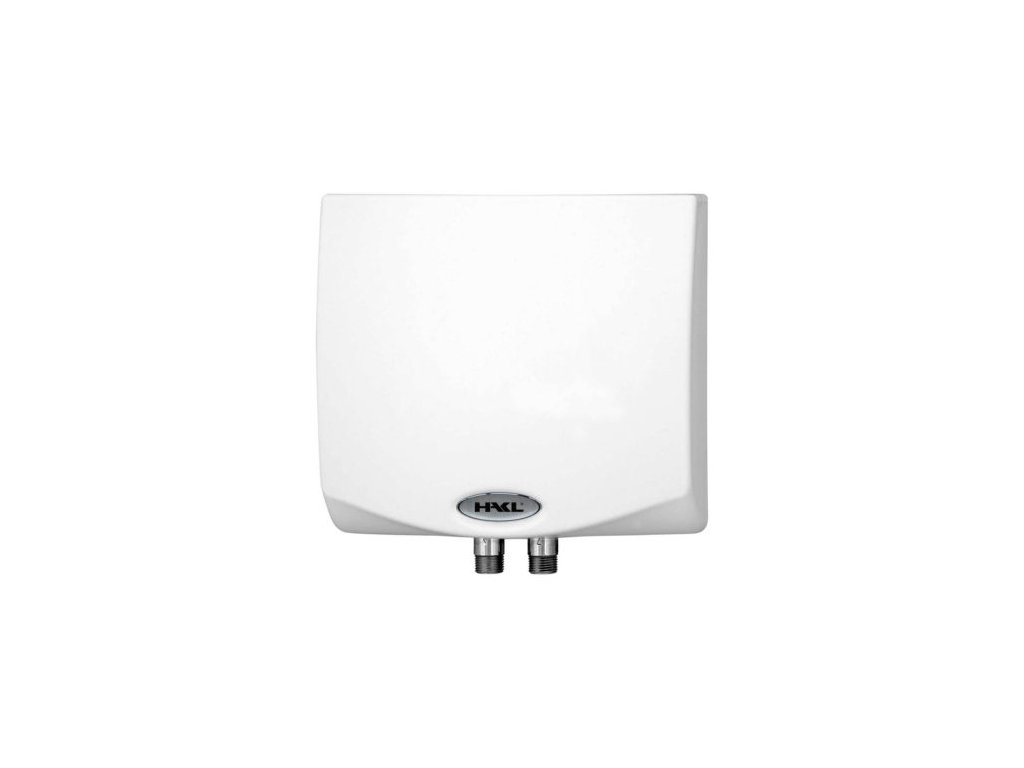

electric instantaneous water heater with electronic switching and pressure operation MK2 7kW

Product detailed description

HAKL MK-2 heats a larger amount of hot water thanks to the high output of its dual heating coils. When connected to a shower or sink mixer, it ensures full comfort even with increased hot water flow. The heater can be installed into a water system with multiple taps. The recommended distance of the heater from the points of use (due to heat losses in the water system) should not exceed 5 m.
Other specifications are the same as for the HAKL MK-1 heater series.
Its use has been proven in practice in small bathroom cores, cottages or business premises - wherever decentralized water heating combined with the comfort of an instantaneous heater is needed.

CHARACTERISTICS:
- installation on pressure-free and commonly available water taps
- pressure operation 6 bar with switching from 0.1 MPa
- electronic switching with control unit
- connection to 2x230V, double heating output
- instant and continuous water heating by up to 43 °C
- one power level of the heating coils
- electronic protection against overheating of the coils.

SPECIFICATION:
Pressure operation: the heater can be installed directly into the water system for one or more commonly available water taps.
Electronic switching: water heating is switched by an electronic control unit which uses protective sensors and thermal fuses.
Power switching: no option to switch power output.
Water resistance IP 45: allows installation of the heater directly in the shower enclosure.
Voltage 2×230 V: connection to a three-phase electrical network. The heater is installed on only two phases of the three-phase electrical distribution.

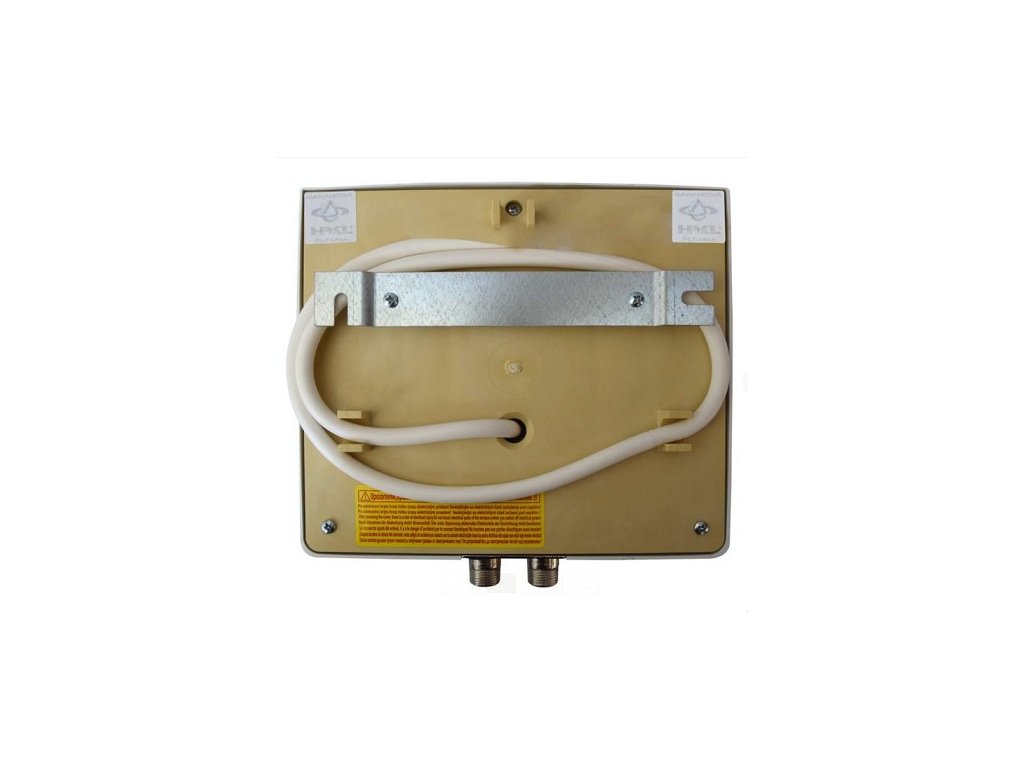

Mounting bracket: easy wall mounting is enabled by the installation bracket and screws included in the package.
Metal flange: the massive design of the metal flange increases the heater's durability during installation.
Light signaling: switching the heating on and off is indicated by a red light on the front cover.

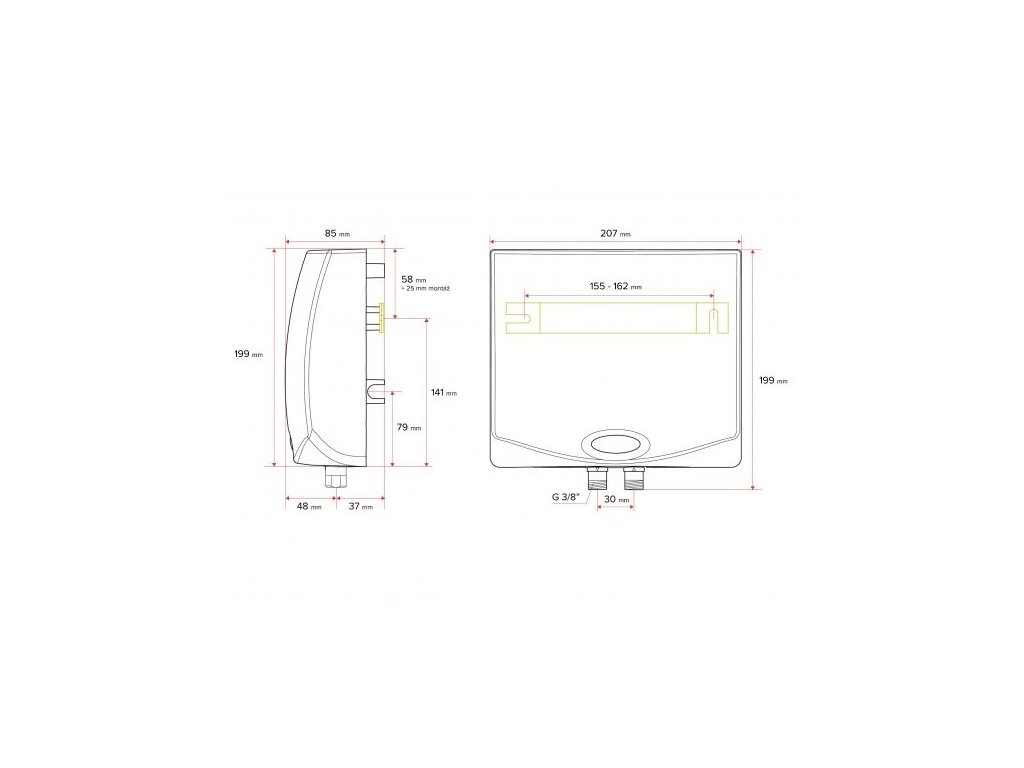

Compact dimensions: the shape and small dimensions allow installation in confined conditions.
