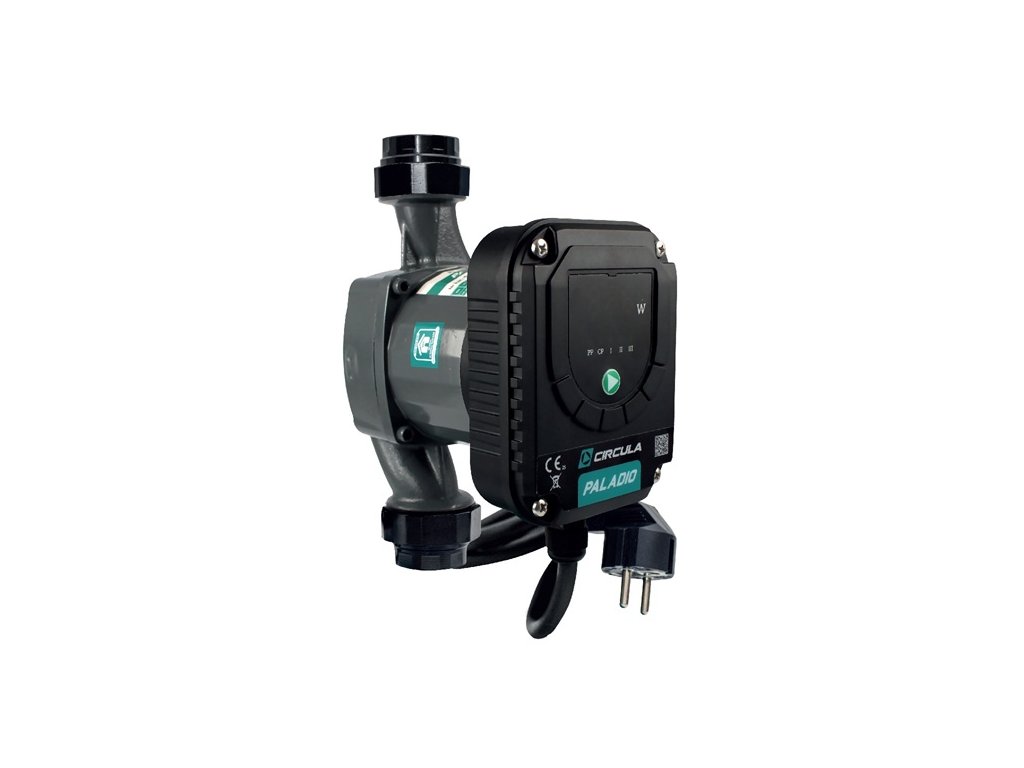

electronic circulation pump CIRCULA PALADIO, including half-couplings and power cable

Product detailed description

PALADIO electronic circulation pump by CIRCULA.

Use:
The Paladio electronic pump is used in central heating systems and heat pump systems.

Features:
✔ the package includes two connecting half-fittings with seals and a power cable with a mains plug.
✔ equipped with a control panel with an LED display
✔ LED indicators signal the current operating mode, the display shows the instantaneous power consumption and any error codes
✔ the pump electronics feature an automatic air venting function.

Technical data:
• Maximum flow rate: 7.5 m³/h.
• Maximum head: 12 m.
• Installation length: 180 mm.
• Connection port diameter: G 1 1/2”.
• Nominal diameter: DN25.
• Pumped liquid temperature: max. 95 °C.
• Maximum working pressure: 10 bar.
• Power supply voltage: 230 V / 50 Hz.
• Power input: 150 W.
• Protection rating: IP44.
• Insulation class: F.
• Energy Efficiency Index (EEI): ≤ 0.20.
• Pumped liquid: water in accordance with the PN-C-04607:1993 standard (free of solid particles, fibres and other impurities), a mixture of water and glycol with a maximum glycol concentration of up to 50%.
