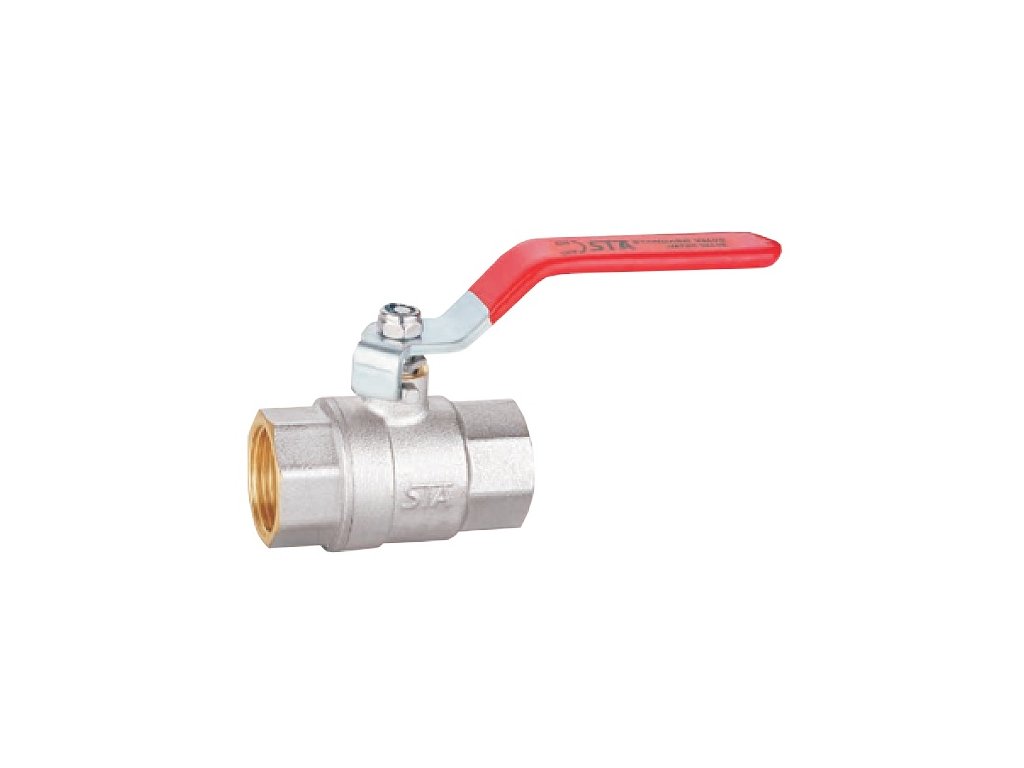

Ball valve FF, lever, PN40, 2"

Product detailed description

Ball valve FF by STA, with lever, PN40, certified for drinking water: the surface coming into contact with drinking water is not nickel-plated.

Technical parameters:
Medium: water, compressed air, 40% glycol
Valve body material: forged brass CW617N
Surface treatment: sandblasting and nickel plating
Maximum nominal pressure (PN): 40 bar
Full-bore.
Operating temperature: -10°C - 120°C
Threads: FF – female/female.
Threads according to standard: ISO 228/1.

Ball valve description (see picture):
1: body - brass
2: ball seat - PTFE
3: ball - chrome-plated
4: lever nut - chrome-plated
5: metal lever - chrome-plated
6: stem nut - brass - adjustable
7: stem seal - PTFE
8: stem – brass.

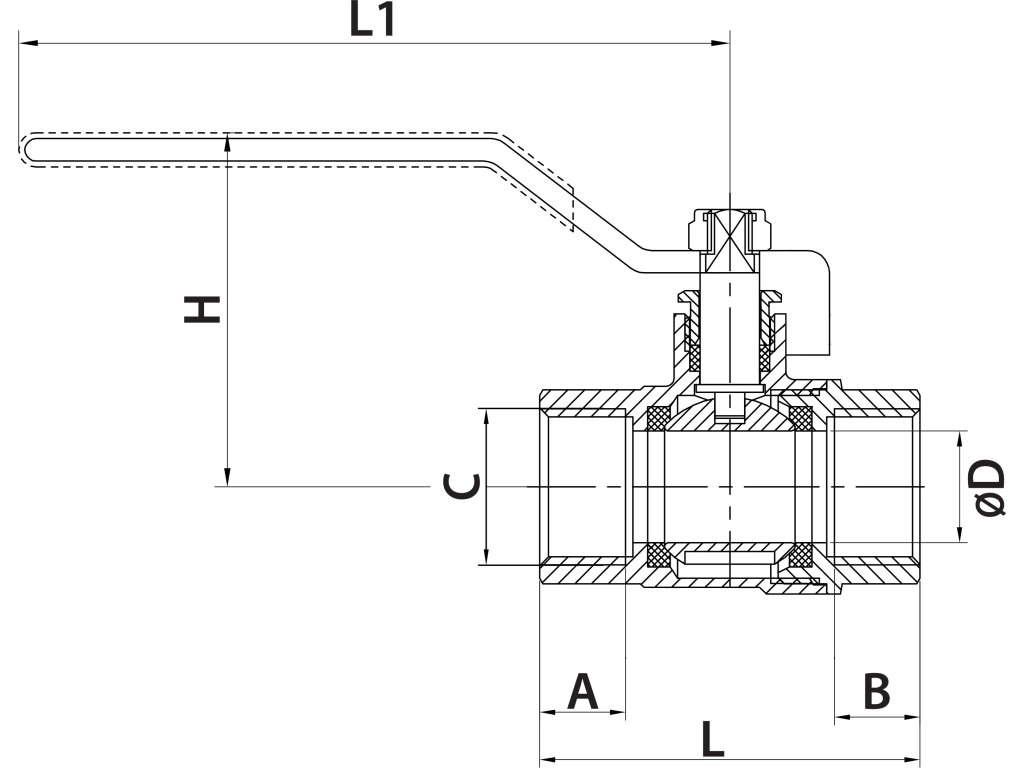

Dimensions (see picture):
A: 23.5 mm
B: 23.5 mm
C: G 2"
D: 50 mm
H: 87 mm
L: 118 mm
L1: 150 mm.

Manufacturer: STANDARD VALVE.
