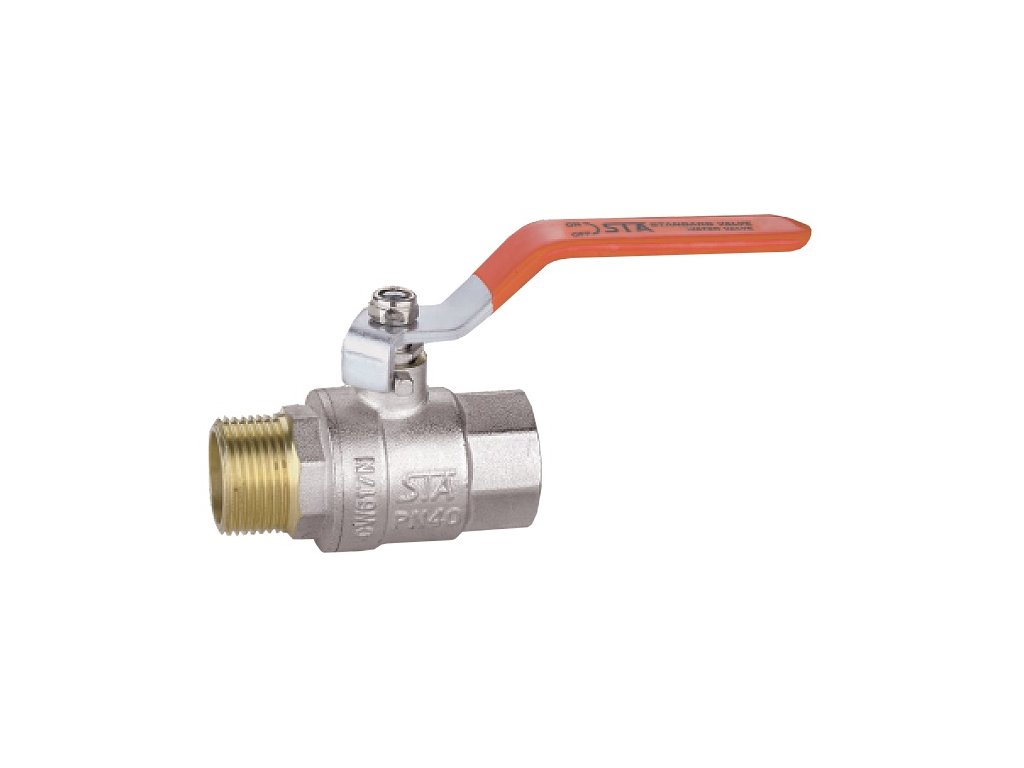

Ball valve MF, lever, PN40, 2"

Product detailed description

<p><b><span style="font-size: 10.5pt; font-family: Verdana, "sans-serif";">Ball valve MF</span></b><b><span style="font-size: 10.5pt; font-family: Verdana, "sans-serif";"> </span></b><b style="font-family: Verdana, "sans-serif"; font-size: 14px;">by STA, </b><b><span style="font-size: 10.5pt; font-family: Verdana, "sans-serif";">with lever</span></b><span style="font-size: 10.5pt; font-family: Verdana, "sans-serif";">, PN40, <b>certified for drinking water:</b> the surface coming into contact with drinking water is not nickel-plated.</span></p><p></p><p><strong><span style="font-size: 10.5pt; font-family: Verdana, "sans-serif";">Technical parameters:<br></span></strong><strong><span style="font-size: 10.5pt; font-family: Verdana, "sans-serif"; font-weight: normal;">Medium: water, compressed air, </span></strong><span style="font-size: 10.5pt; font-family: Verdana, "sans-serif";">40% glycol<b><br></b>Valve body material: forged brass CW617N<br>Surface finish: sandblasting and nickel-plating<br>Maximum nominal pressure (PN): <b>40 bar<br></b>Full flow.<br>Operating temperature: -10°C - 120°C<br>Threads: <b>MF – male/female.</b><br>Threads according to standard: ISO 228/1.<br><b><br>Ball valve description</b> (see image):<br>1: body - brass<br>2: ball seat - PTFE<br>3: ball - chrome-plated<br>4: lever nut - chrome-plated<br>5: metal lever - chrome-plated<br>6: stem nut - brass - adjustable<br>7: stem seal - PTFE<br>8: stem – brass.<b><br><br>Dimensions</b> (see image):<br>A: 23.5 mm<br>B: 25 mm<br>C: <b>G 2</b><strong><span style="font-weight: normal;">"<br></span></strong>D: 50 mm<br>H: 87 mm<br>L: 127 mm<br>L1: 150 mm.</span></p><p><b style="font-family: Verdana, "sans-serif"; font-size: 14px;">Manufacturer</b><span style="font-family: Verdana, "sans-serif"; font-size: 14px;">: STANDARD VALVE.</span><span style="font-size: 10.5pt; font-family: Verdana, "sans-serif";"></span></p>
