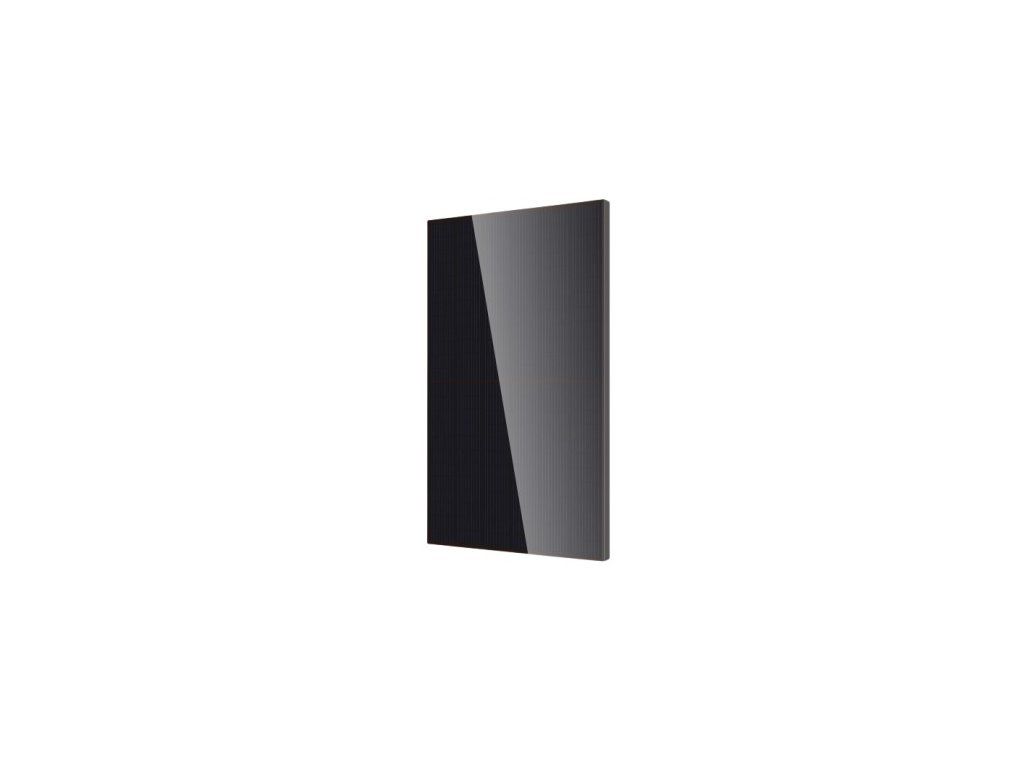

Solar panel 435W HT54-18X(N) black frame 1722x1134x30 HT-SAAE

Product detailed description

Delivery time from order placement is approximately 4-5 business days. This is an oversized item requiring special transport arrangements.
The HT-SAAE HT54-18X(N) 435 W photovoltaic panel is a high-efficiency monocrystalline module with advanced half-cut cell technology that reduces losses and increases overall output. With efficiency of up to 22.5%, a positive power tolerance of 0 to +3%, and support for a system voltage of 1500 V DC, it is ideal for residential and commercial installations. The panel offers high mechanical resistance (snow load 5400 Pa, wind load 2400 Pa), PID resistance, and long service life backed by a 15-year product warranty
Specifications:
- Rated power: 435 W
- type: monocrystalline
- number of cells: 108 (6 x 18)
- module efficiency: 22.3%
- maximum current (Imp): 13.60 A
- maximum power voltage (Vmp): 332 V
- open circuit voltage (Voc): 38.4 V
- short circuit current (ISC): 14.31 A
- Maximum system voltage: 1500 V DC (IEC)
- Output tolerance: 0~+3%
- Connector type: compatible with MC4/MC4
- Front glass: tempered glass
- protection rating: IP68
- Cell type: IP68, IP68, IP68, IP68, IP68, IP68, IP68: Monocrystalline
- frame: anodized aluminum alloy
- frame color: black
- Output cables: Compatible with MC4/MC4
- Module dimensions: 1722 × 1134 × 30 mm
- weight: 21.0 kg
Packaging - 1pc / 36pcs pallet
