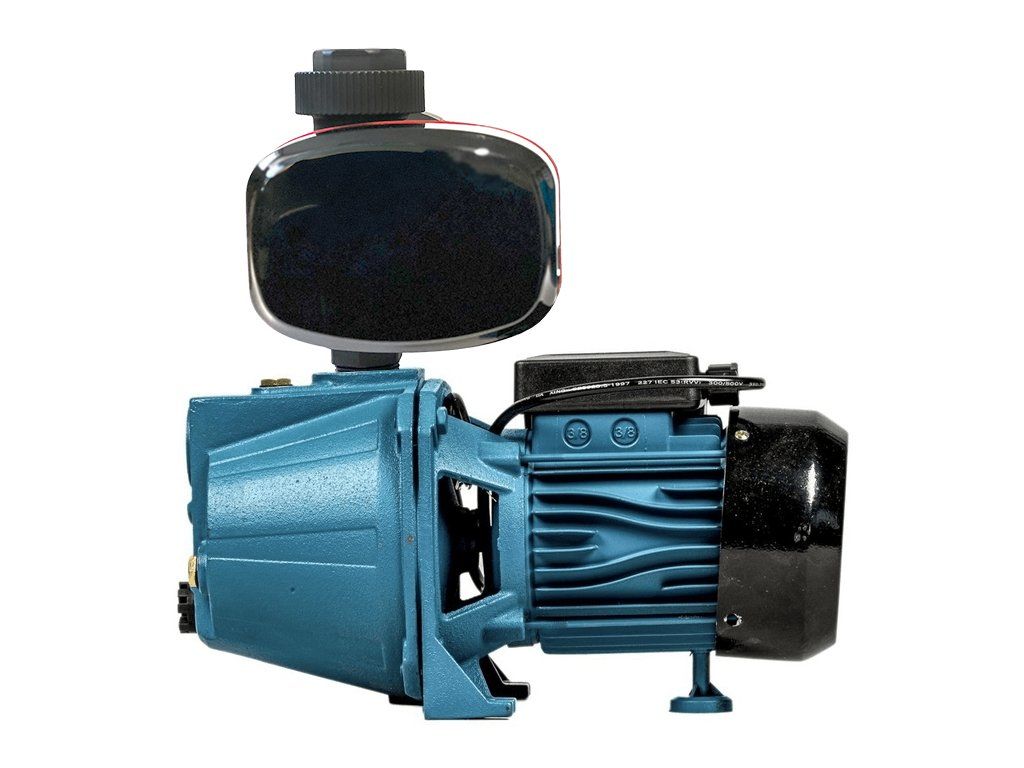

Automatic home water system JET 100A with ADARA 6, self-priming cast-iron pump for irrigation with dry-run protection

Product detailed description

Automatic home water system JET 100A with ADARA 6, which protects the pump against dry running, water backflow, water hammer, and has a built-in 0.3L pressure tank. The automatic home water system JET 100A with ADARA 6 is used mainly seasonally, primarily for irrigation. The self-priming horizontal pump JET 100 A supplies family homes with clean water from wells, where the suction depth does not exceed 8m. Single-stage self-priming centrifugal surface pump. The pump body is made of solid cast iron and the motor is equipped with thermal protection. The JET 100A pump has a power cord terminated with a plug. It is also available in a version with accessories (with a pressure switch and manometer) for easy use in home water systems. The motor cover and intermediate wall are made of alloy. The impeller is made of noryl. The mechanical seal is made of ceramics, graphite and NBR. The pump shaft and rotor are made of AISI stainless steel. Use and advantages of the JET 100A pump pumping from wells where the suction depth does not exceed 8 metres irrigation high head corrosion resistant easy operation Versatility. If in the future you want to set up a home water system (darling) with a pressure tank, the PC-16 will serve you as dry-run protection and a pressure switch. The IBO PC-16 control unit with manometer has a built-in check valve, against the backflow of water into the pump Digital ADARA 6 control unit with pressure sensor The ADARA 6 control unit replaces the pressure switch and has a built-in 0.3L pressure tank. The ADARA 6 unit allows setting the switch-on pressure (0.5-6bar) and switch-off pressure (0.8-9bar). It features simple and intuitive control. It guarantees simple and reliable performance The control unit's pressure sensor has a fast response time and high accuracy. A highly sensitive display shows the measured pressure in real time. It has a flow mode and a pressure mode Built-in protective functions of the ADARA 6 control unit Dry-run protection - when there is no water in the well, the ADARA 6 control unit switches off the pump. This protects the pump from damage that could occur when running without water. Overload protection Protection against frequent switching on Warning of overpressure in the pipework Warning of insufficient water Automatic restart within 24 hours The automatic home water system JET 100A with ADARA 6 contains JET 100A pump ADARA 6 control unit with pressure sensor
