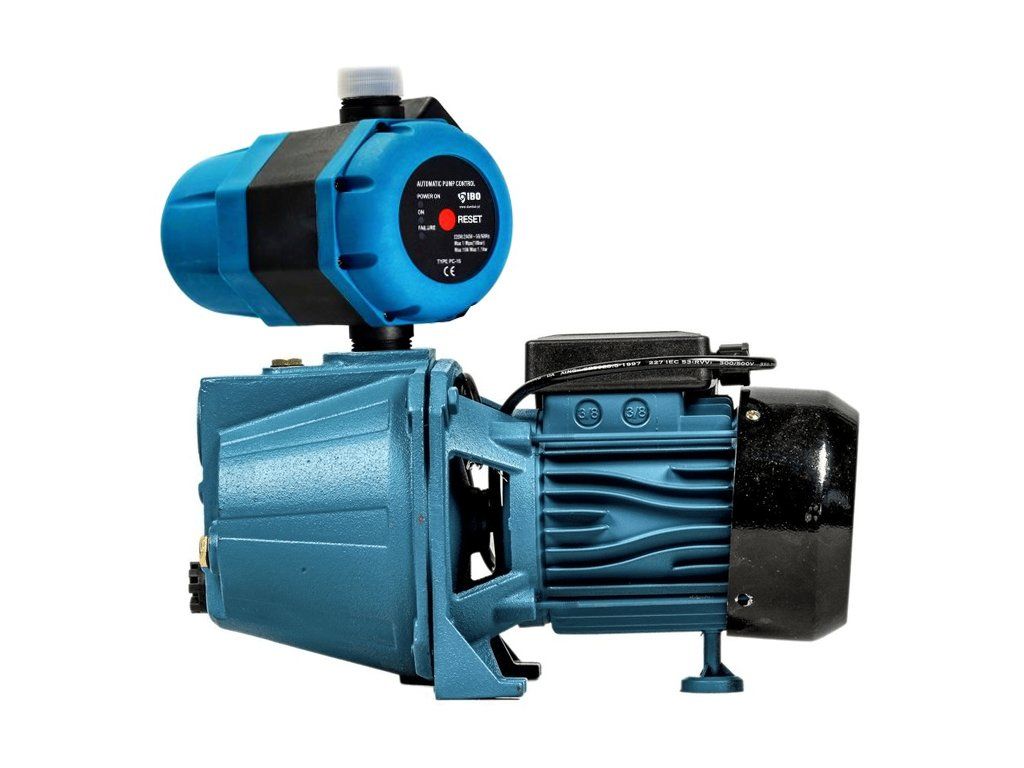

Automatic home water system JET 100A with PC-16, water pump for the garden

Product detailed description

The JET 100A automatic home water system with PC-16 is used mainly seasonally, especially for irrigation. Use and advantages of the JET 100A pump: pumping from wells where the suction height does not exceed 8 metres irrigation high delivery head corrosion-resistant easy operation PC-16 control unit with pressure gauge: Provides dry-run protection - it switches off the pump when it runs without water. This protects the pump from damage that could otherwise occur. After switching off, it is put back into operation by pressing the RESET button. We recommend using the PC-16 unit with pressure gauge in clean water systems free of dirt and sediment, so please be sure to check out the related products - filters. Product advantages: Versatility. If in the future you want to set up a home water system with a pressure tank, the PC-16 will serve as dry-run protection and a pressure switch. The IBO PC-16 control unit with pressure gauge has a built-in check valve to prevent water flowing back into the pump. Operation and basic data: When first connected, the PC-16 unit with pressure gauge starts the pump for approximately 15 seconds. After that, the pump always starts when the operating pressure is reached, i.e. when the pressure in the system drops, for example when a valve is opened. Unlike other pressure switches, which switch off once a certain pressure is reached, the PC-16 unit with pressure gauge switches off when the minimum flow value is reached. Once this condition is met, the device delays switching off by 7 to 15 seconds, which reduces how often the pump starts at low flow rates. Installation: The PC-16 unit with pressure gauge can be installed at any point between the pump and the first point of use, so that the direction of the arrow located on the underside of the device (near the thread), between the two 1" connections, matches the direction of water flow. Perfect sealing of all hydraulic connections must be ensured in the system. If a pump with a maximum permissible pressure of 10 bar is used, a pressure-reducing valve must be installed on the PC-16 inlet. The device is factory-set to 1.5 bar, which is optimal for most applications. After disconnecting the device from the mains power supply, if the hydraulic performance of the pump used allows it, the pressure can be adjusted after removing the upper cover using the screw marked with + and - signs. Technical data: Power supply: 230V Max. current: 10A; 1.1kW Max. permissible pressure: 10bar Max. liquid temperature: 55°C Connections: inlet/outlet G 1" 1m cable with plug for connection to the mains Plug for connecting the pump The JET 100A automatic home water system with PC-16 includes: JET 100A pump PC-16 control unit The JET 100A automatic home water system with PC-16 is supplied disassembled so that the control unit and filter can be positioned as desired. (The filter always goes before the control unit.)
