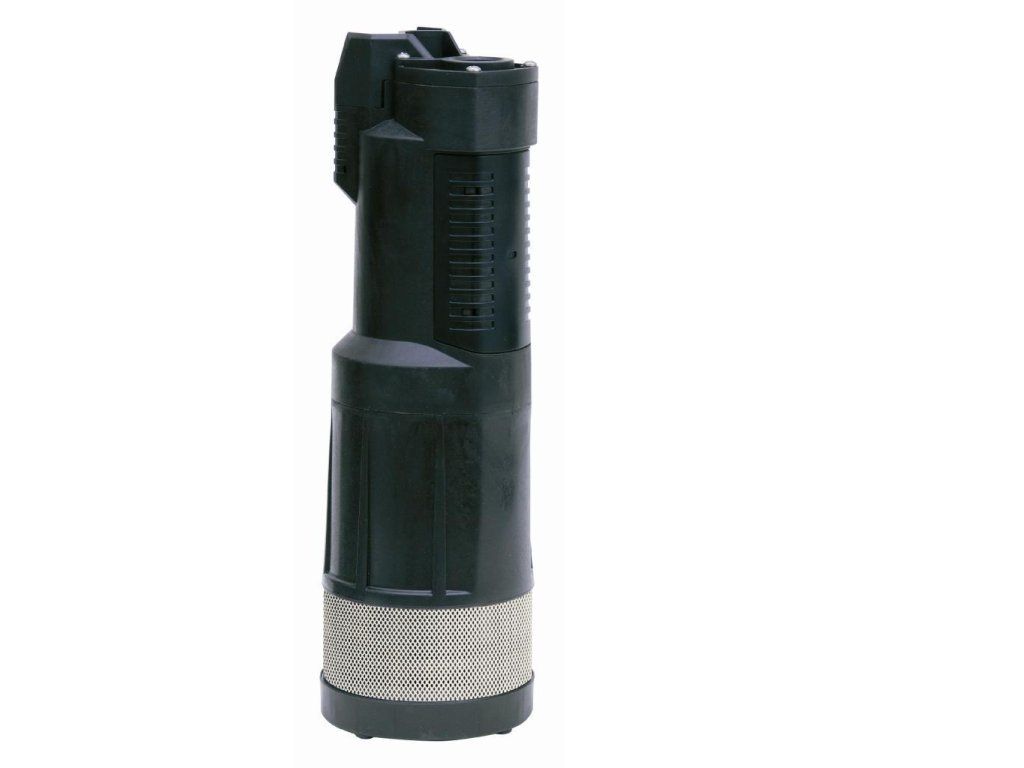

Automatic home water system with Divertron 1200 submersible pump

Product detailed description

Automatic home water system DIVERTRON 1200 consists of a submersible pump with built-in electronics that automatically switches the pump on and off and also provides dry-run protection. It works without the need for a pressure tank or pressure switch. It has a double mechanical seal in an oil bath. Use: supplying single-family homes, cottages and smaller buildings with drinking or utility water free of mechanical and abrasive impurities anywhere consistent pressure is required during water draw-off, e.g. irrigation systems (the spray pattern does not change) when using water for toilets, we recommend installing a balancing pressure tank with a volume of 8 to 15 liters somewhere in the system, which will reduce the number of switching cycles during very small water draw-offs max. pumped water temperature 35 °C max. immersion depth 15 meters Advantages: includes a control unit that switches on when pressure drops, when water draw-off begins, and switches off when flow stops has built-in dry-run protection built-in non-return flap fitted with a magnetic sensor that prevents the pump from switching on by itself if the flap fails to close fully (e.g. due to fouling by impurities) a thermal fuse protects the electric motor winding in the event of rotor blockage, increased mechanical load, or frequent pump switching after the winding cools down, the thermal protection switches the pump back on
