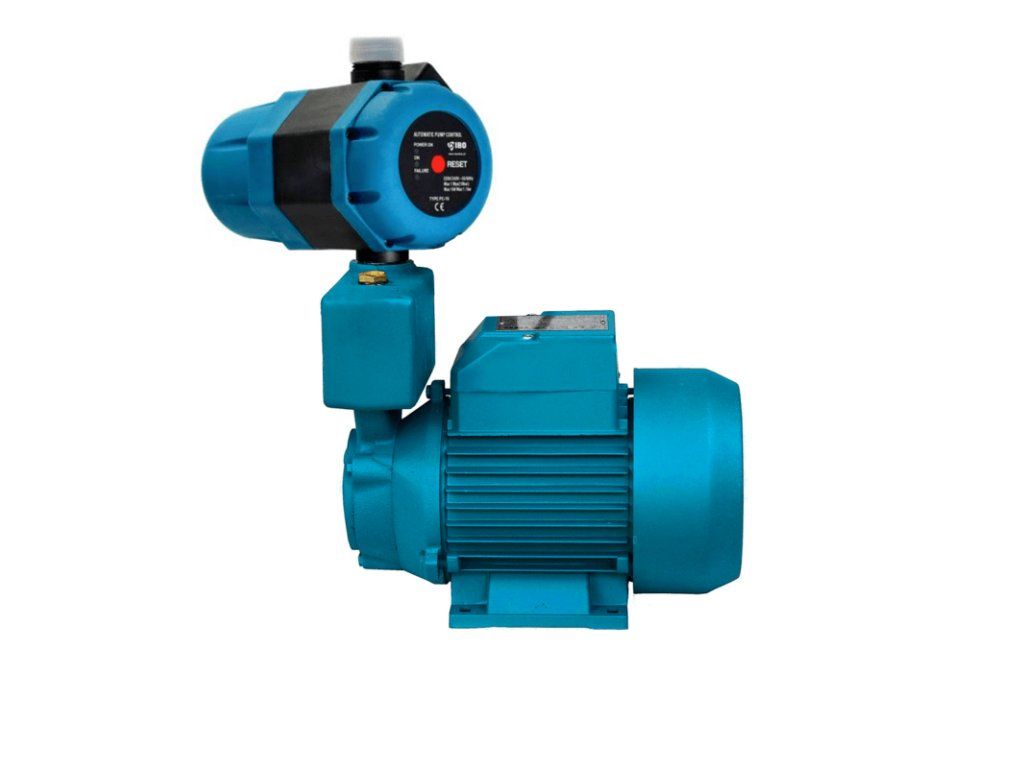

Automatic home water system WZI 750 with PC-16, water pump

Product detailed description

The WZI 750 automatic home water system with PC-16 is used mainly seasonally, especially for irrigation. Self-priming pumps allow water to be pumped from shallower depths (up to 8m), or are used to increase water pressure in plumbing systems. Use of the IBO WZI 750 pump: pumping from wells where the suction height does not exceed 8 metres supplying clean water to houses, cottages, etc. irrigation Advantages of the IBO WZI 750 pump: high delivery head corrosion-resistant easy operation PC-16 control unit with pressure gauge: The PC-16 control unit with pressure gauge and dry-run self-restart, used to monitor pump operation, performs the function of a pressure switch and pressure tank, enabling automatic operation of submersible or self-priming/surface pumps. Depending on the pressure drop and when water flow in the system stops, it enables automatic operation of the pump or the water system. With the PC-16 control unit you do NOT need a pressure tank, pressure switch or dry-run protection. The PC-16 control unit with pressure gauge provides dry-run protection - it switches off the pump when it runs without water. This protects the pump from damage that could otherwise occur. We recommend using the PC-16 control unit with pressure gauge and dry-run self-restart in clean water systems free of dirt and sediment; otherwise a suitable filter should be installed before the device. Product advantages: automatic dry-run restart usable with pumps, i.e. as an automatic unit built-in electrical socket for connecting the pump Operation - basic data: When first connected, the PC-16 control unit with pressure gauge and dry-run self-restart starts the pump for approximately 15 seconds. After that, the pump always starts when the operating pressure is reached, i.e. when the pressure in the system drops, for example after a valve is opened, and also during a dry-run self-restart. The PC-16 control unit with pressure gauge and dry-run self-restart can be installed at any point between the pump and the first point of use. Perfect sealing of all connections must be ensured in the system. Technical data: Power supply: 230V Max. current: 10A; 1.1kW Max. permissible pressure: 10bar Max. liquid temperature: 55°C Connections: inlet/outlet G 1" 1m cable with plug for connection to the mains Plug for connecting the pump The WZI 750 automatic home water system with PC-16 includes: WZI 750 pump PC-16 control unit The WZI 750 automatic home water system with PC-16 is supplied disassembled so that the control unit and filter can be positioned as desired. (The filter always goes before the control unit.)
