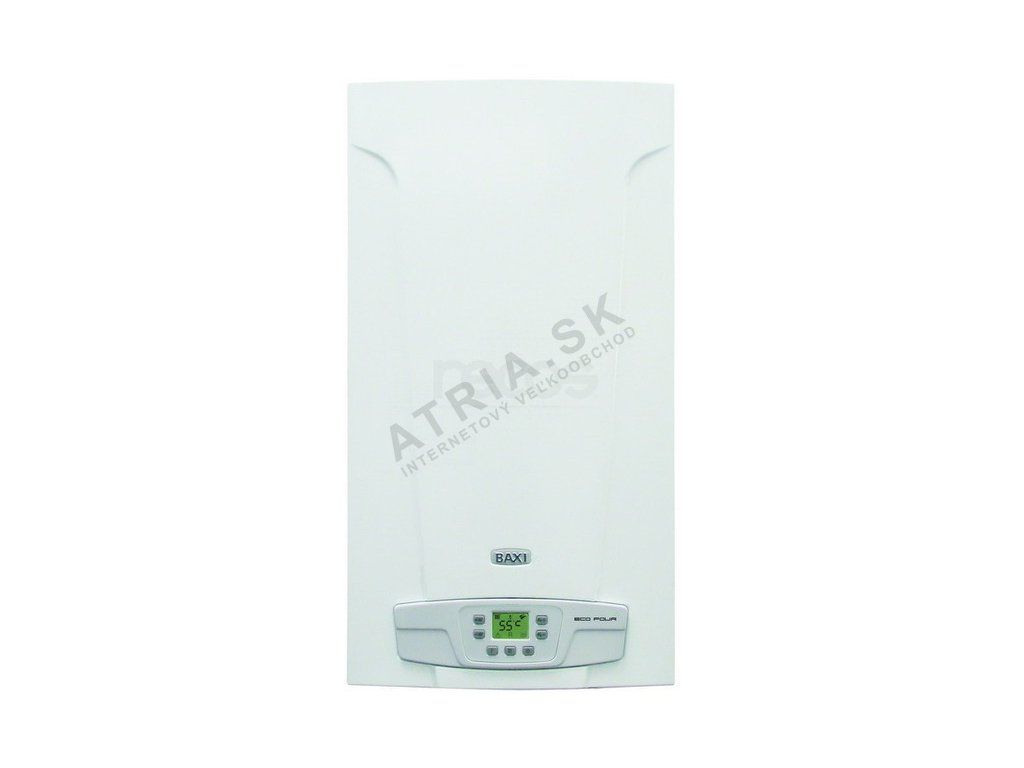

Baxi Ecofour 1.24 F + 125l Set

Product detailed description

Output: 9.3 – 24 kW, heating only + option to connect an external cylinder,  forced flue gas discharge (turbo)  - Baxi Ecofour 1.24 F + 125l cylinder

Ecofour 1.24 F set: 9.3–24 kW, includes:

1 pc Ecofour 1.24 F boiler,
1 pc cylinder with the corresponding volume,
1 pc 3-way valve kit (KHG714096311)


Smooth output modulation, self-diagnostics on the LCD display, Alfa-Laval secondary heat exchanger, IPX5D electrical protection rating, built-in weather compensation control, AFR flue gas system for optimised efficiency

Characteristics:

• digital control panel with a wide LCD display
• compact hydraulic unit with an electric three-way valve
• pre-fitted for connection to a Baxi solar system
• electric three-way valve on the return pipe as protection against thermal shocks
• option to connect an external cylinder (heating-only models).
• The DHW temperature is set directly on the boiler.

Hydraulic system

• Electric three-way valve
• Quiet burner
• Copper primary heat exchanger with a protective anti-corrosion alloy coating
• Stainless steel secondary heat exchanger
• Automatic by-pass
• Low-consumption circulation pump with built-in air vent
• Anti-seizing function for the pump and three-way valve, activating every 24 hours
• Heating circuit safety valve, 3 bar

Control and safety features

• Safety thermostat against overheating of the primary heat exchanger
• Hydraulic pressure switch that shuts off the gas supply in case of insufficient water
• Safety pressure switch for monitoring correct flue gas discharge (F models)
• Safety thermostat for monitoring correct flue gas discharge
• Pressure gauge for the heating circuit
• Electronic thermometer

General parameters:

Heating only				Heating + DHW
		turbo		chimney		turbo	chimney
Name		ECOFOUR 1.14 F	ECOFOUR 1.14 F	ECOFOUR 1.14	ECOFOUR 1.24	ECOFOUR 24 F	ECOFOUR 24
Suitable for a set
Rated heat output	(kW)	14	24	14	24	24	24
Reduced heat output	(kW)	6	9.3	6	9.3	9.3	9.3
Heating water temperature control range	(°C)	30/85	30/85	30/85	30/85	30/85	30/85
DHW temperature control range	(°C)	35/60	35/60	35/60	35/60	35/60	35/60
Minimum DHW flow rate	(l/min)	-	-	-	-	2	2
DHW output at a 25°C temperature rise	(l/min)	-	-	-	-	13.7	13.7
Coaxial flue diameter	(mm)	60/100	60/100	-	-	60/100	-
Twin-pipe flue diameter	(mm)	80	80	-	-	80	-
Flue diameter (chimney version)	(mm)	-	-	120	120	-	120
Electric three-way valve		No	No	No	No	Yes	Yes
Electrical voltage / frequency	(V/Hz)	230/50	230/50	230/50	230/50	230/50	230/50
Rated electrical power input	(W)	120	80	80	80	130	130
Weight	(kg)	31	32	26	28	33	29
Dimensions
Height	(mm)	730	730	730	730	730	730
Width	(mm)	400	400	400	400	400	400
Depth	(mm)	299	299	299	299	299	299
