Baxi Nuvola3 BS 240 i
Code: CSB454243510Product detailed description

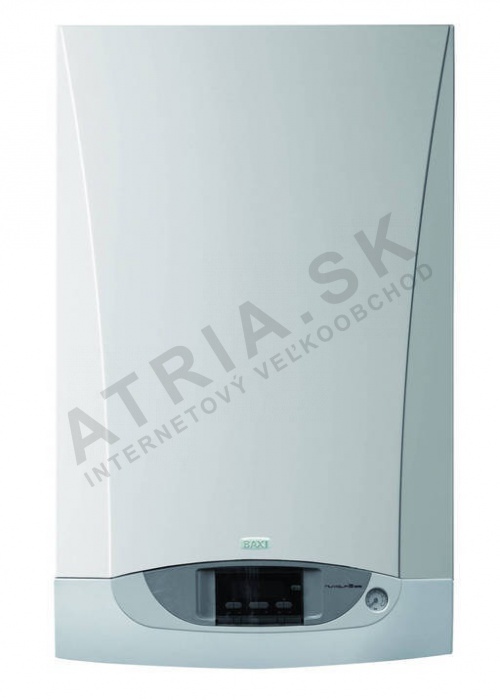

Gas boiler Baxi Nuvola3 BS 240 i
The 24 kW+ version of this gas boiler is suitable for larger flats and family houses that prioritise higher hot water comfort.
- Up to 350 l of DHW in 30 minutes (ΔT = 30°C)
- Control panel with a multifunction LCD display
- 30 l stratified enamelled cylinder with corrosion protection (magnesium anode)
- Option to connect an outdoor sensor
- Continuous power modulation
- IPX5D electrical protection rating
- NOx class 3
- Patented AFR flue gas system for optimising combustion efficiency
General parameters:
- Model: NUVOLA 3 BS 240 i
- With heating and DHW production
- Flue gas discharge type: into the chimney
- Suitable for cascade connection: No, the boiler is not suitable for cascade connection.
- Rated heat output (kW): 24,4
- Reduced heat output (kW): 10,4
- Heating water temperature control range (°C): 30 - 85
- Cylinder heating time (min): 6
- DHW output at a 30°C rise (l/30 min): 390
- DHW output at a 25°C rise (l/min): 14
- DHW output at a 35°C rise (l/min): 10
- Specific DHW flow rate (l/min): 14,9
- Coaxial flue diameter (mm): -
- Twin-pipe flue diameter (mm): -
- Flue diameter, chimney (mm): 140
- Electric three-way valve: No
- Electrical supply / Frequency (V/Hz): 230/50
- Rated electrical input (W): 140
- Weight (kg): 53
Dimensions:
- Height (mm): 950
- Width (mm): 600
- Depth (mm): 466
Additional parameters
| Category: | Baxi |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one: | https://www.atria.sk/protherm-tiger-condens-20-26-kkz-42/ |
| The item has been sold out… | |
