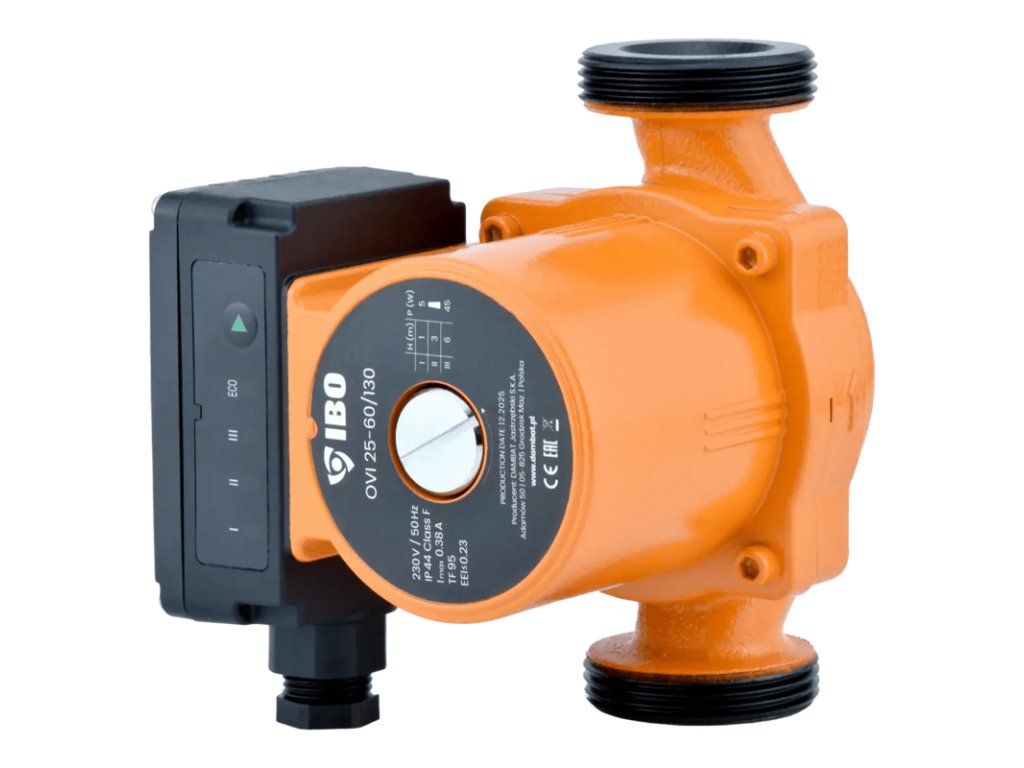

Circulation pump OVI 25-60/130, 3-speed, electronic

Product detailed description

The most affordable circulation pump OVI 25-60/130 is made of alloy. The pump has 3 operating modes. Energy efficiency index: EEI ≤ 0.23 The electronically controlled OVI circulation pump is designed mainly for central heating and air conditioning systems, for working with heating water across a wide temperature range, usually from approx. +2 to +110 degrees C. The pump is equipped with a permanent magnet motor. The pump has a control panel for setting 3 mechanical rotor speeds, ensuring optimal electricity consumption. OVI circulation pumps are made of alloy with a ceramic shaft with radial bearings. Pump port diameter / thread diameter (1½ x 1) Differential pressure controller Automatically and continuously adjusts the pump's speed and output to the system's current requirements. This solution improves energy efficiency and user comfort, as the pump does not run unnecessarily at maximum speed, and the installation maintains stable flow parameters. The control panel allows you to Change operating modes Vent the pump during startup or servicing Intuitive buttons make operating the pump easier Advantages of the IBO OVI 25-60/130mm circulation pump OVI pumps are equipped with an automatically adaptive AUTO/ECO mode (factory setting). In most cases, the pump can be started without any adjustments and will automatically adapt to the system's current needs. Saves electricity and boiler fuel. Energy efficiency index: EEI ≤ 0.23 Long trouble-free operation. Materials and parts are resistant to an aggressive water environment and do not require additional maintenance costs. The design allows the control unit to be separated from the pump in case of failure or maintenance. Quiet operation even at higher speeds thanks to the bearing material used. Use of the IBO OVI 25-60/130mm circulation pump OVI pumps are used mainly in central heating of family houses to ensure the circulation of hot water in the household. Heating systems with constant temperature and variable flow, in which the OVI pump maintains the required water circulation as the system's heat demand changes. Heating systems with variable pipe temperature, such as systems with weather-compensated (equithermal) control, where the system requires a pump that automatically adapts its output to current conditions. Heating systems with a night mode, in which the operation of the OVI circulation pump can be reduced during periods of lower heat consumption to save energy. Air conditioning, solar and cooling systems requiring forced circulation of water or solutions in closed systems. Package includes Pump OVI 25-60/130 2x gasket
