Combined Cylinder QUADROFLEX QFDS 1 250/110
Code: 5SK 71-251000Product detailed description

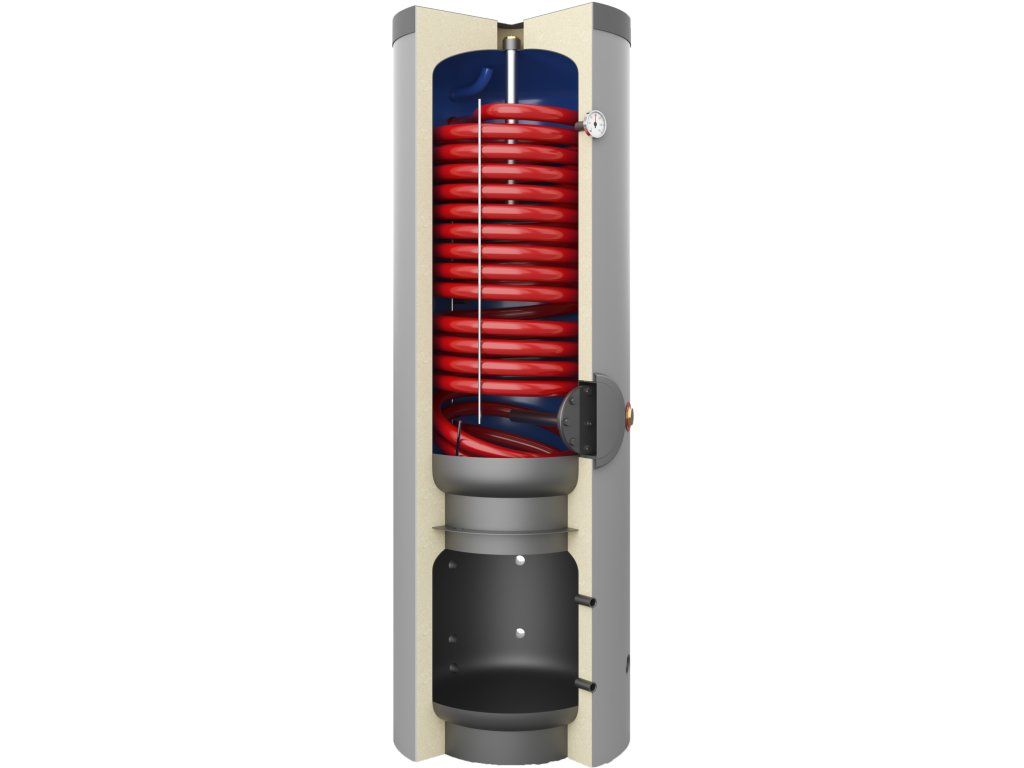

The cylinder contains an indirectly-heated enamelled tank with a volume of 25 l and a steel heat exchanger with a surface area of 2.9 m². A flanged electric heating element "G6/4" can be installed in the tank.The heat exchanger connection has a size of "G5/4".
The buffer tank with a volume of 110 l has an opening for a threaded heating element "G6/4". The tank has a total of 6 system ports "G1" for connecting to the central heating (UK) system.
Additional parameters
| Category: | Storage Tanks for Heat Pumps |
|---|---|
| Weight: | 175 kg |
| EAN: | 590122485348 |
| Max. operating temperature: | 95 C |
| Max. allowed tank pressure: | 10 bar |
| Max. heat exchanger pressure: | 16 bar |
| Actual volume: | 243 L |
| Heat exchanger volume: | 24 L |
| Heat exchanger surface area: | 2.9 m² |
| Heat exchanger output: | 21 kW |
| ERP energy class: | B |
| Height: | 1990 mm |
| Diameter: | 670 mm |
| Warranty: | 2 years |
| Net weight: | 175 kg |
