Differential pressure bypass valve with adjustable scale 3/4", PN 10 bar, T=0–110°C, setting range: 10÷40 m c.a.

Code: INT_CLF 519504

napojeny tovar

Not rated Rating details

Differential pressure bypass valve with adjustable scale 3/4", PN 10 bar, T=0–110°C, setting range: 10÷40 m c.a.

97,86 € / pcs

(4 pcs)

Detailed information

Product detailed description

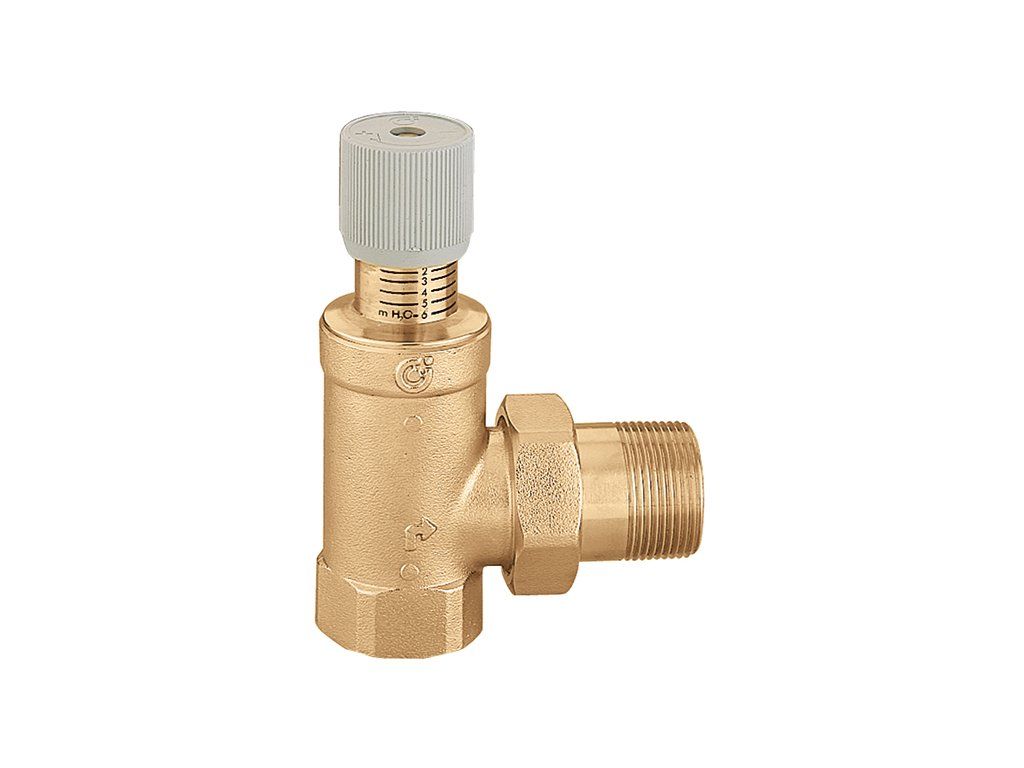

Differential pressure bypass valve with adjustable scale by Caleffi.

Technical data:
Adjustable differential bypass valve with scale.
Inlet connection: G 3/4" (ISO 228-1) F.
Outlet connection: G 3/4" A (ISO 228-1) M.
Maximum operating pressure: 10 bar.
Medium ambient temperature range: 0–110 °C.
Setting range: 10–40 m c.a.
Maximum glycol percentage: 30%.
Medium: water, glycol solutions.
