Electronic circulation pump NOVA 25-40/180 for heating and water circulation

Product detailed description

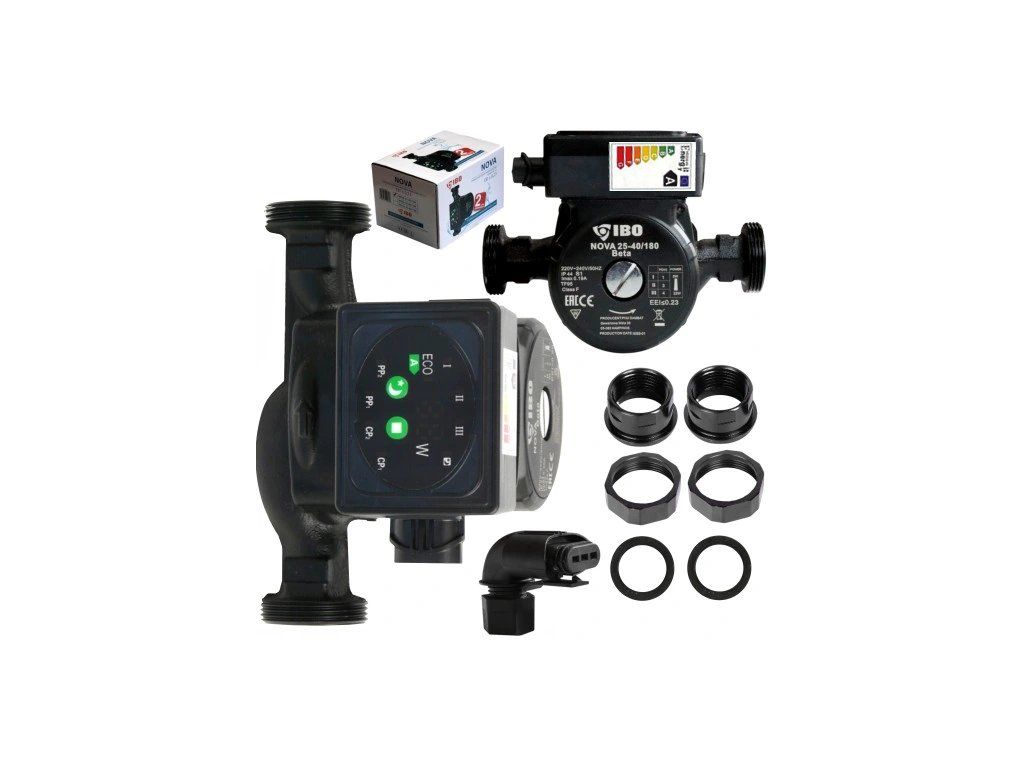

The circulation pump IBO NOVA 25-40/180 is equipped with a permanent magnet motor and a differential pressure controller that automatically and continuously adjusts the pump's output to match the system's actual needs. The pump's control panel is located on the top of the motor, making it easier for the user to operate. Current electricity consumption is shown on its display. The pump unit includes a set of screw connections with an adapter for cable connection. Energy-efficient electric circulation pumps that meet the requirements of energy class A pumps. The energy efficiency index of the NOVA series pumps is: EEI <= 0.2, which, according to Commission Regulation (EU) No. 622/2012, is the reference benchmark for: the most energy-efficient circulation pumps. The circulation pump IBO NOVA 25-40/180 is suitable for: heating systems with constant temperature and variable flow heating systems with variable pipe temperature heating systems with night mode air-conditioning systems industrial circulation systems domestic central heating systems domestic hot water systems Technical parameters: Maximum flow rate: 50 l/min Maximum head: 4 m Motor power: 0.05–0.22 kW Overall length: 180 mm Connection thread: 6/4"
