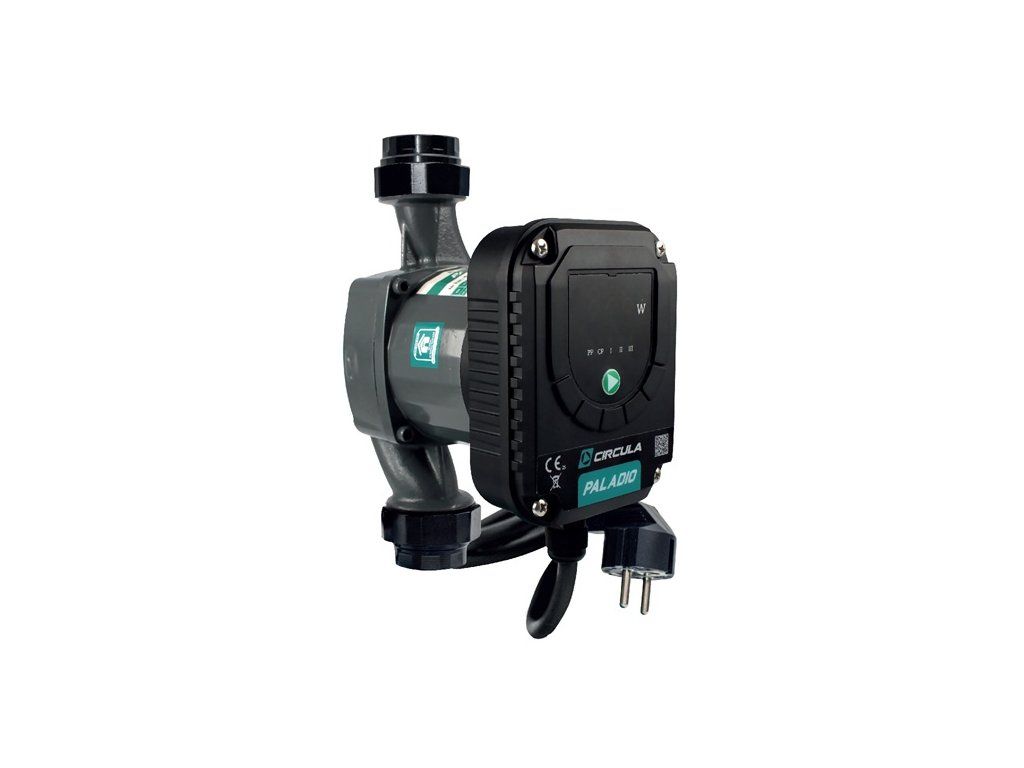

electronic circulation pump CIRCULA PALADIO, including half-unions and power cable

Product detailed description

Electronic circulation pump PALADIO by CIRCULA. Use: The Paladio electronic pump is used in central heating systems and heat pumps. Functions: ✔ the package includes two connecting half-unions with seals and a power cable with mains plug. ✔ equipped with a control panel with LED display ✔ LED indicators show the current operating mode, the display shows the instantaneous power consumption and any error codes ✔ the pump electronics are equipped with an automatic air-venting function. Technical data: • Maximum flow: 7.8 m³/h. • Maximum head: 12 m. • Installation length: 180 mm. • Connection port diameter: G 2". • Nominal diameter: DN32. • Pumped liquid temperature: max. 95 °C. • Maximum operating pressure: 10 bar. • Supply voltage: 230 V / 50 Hz. • Power consumption: 150 W. • Enclosure protection rating: IP44. • Insulation class: F. • Energy efficiency index (EEI): ≤ 0.20. • Pumped liquid: water in accordance with standard PN-C-04607:1993 (free of solid particles, fibres, and other impurities), water-glycol mixture with a maximum glycol concentration of up to 50%.
