electronic circulation pump CIRCULA TITANIO, including power cable

Product detailed description

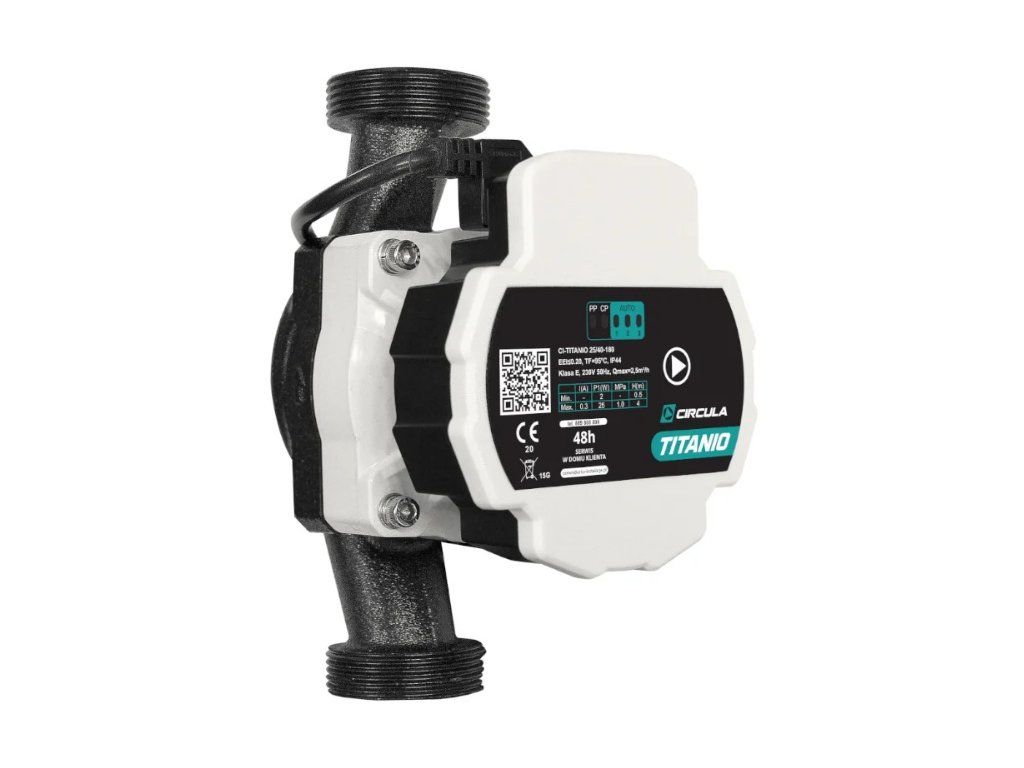

Electronic circulation pump TITANIO by CIRCULA.

Application:
The Titanio electronic pump is used in central heating, air conditioning, solar and heat pump systems.

Features:
✔ equipped with a power cable.
✔ 10 operating modes (characteristics: proportional pressure, constant pressure, constant speed).
✔ AUTO mode.
✔ automatic restoration of settings after power recovery.

Technical data:
• Maximum flow rate: 3.4 m³/h.
• Maximum head: 8 m.
• Installation length: 130 mm.
• Connection port diameter: G 1 1/2”.
• Nominal diameter: DN25.
• Pumped medium temperature: 2 °C - 95 °C.
• Temperature class: TF = 95 °C.
• Maximum working pressure: 10 bar.
• Acceptable ambient temperature: 0 - 40 °C.
• Supply voltage: 230 V (50 Hz).
• Power input: 65 W.
• Current: 0.65 A.
• Protection rating: IP44.
• Insulation class: E.
• Energy Efficiency Index (EEI): ≤ 0.21.
• Pumped liquid: water according to PN-C-04607:1993 standard (free of solid particles, fibers and other impurities) and water-glycol solution with concentration up to 50%.
