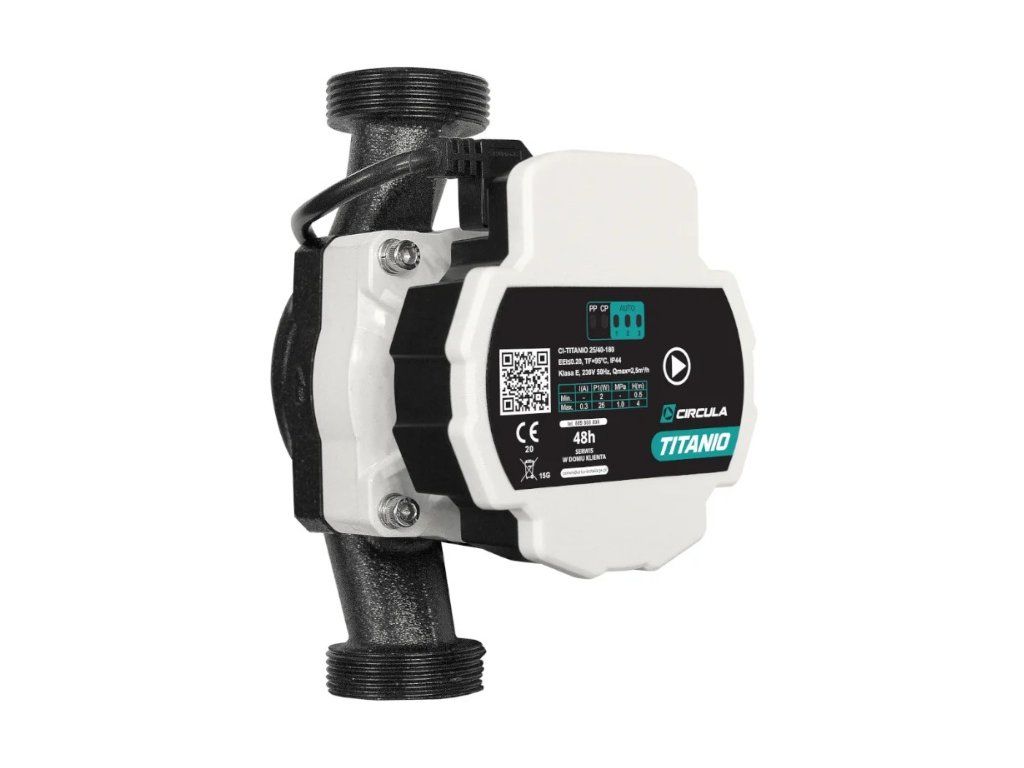

electronic circulation pump CIRCULA TITANIO, including power cable

Product detailed description

Electronic circulation pump TITANIO by CIRCULA. Use: The Titanio electronic pump is used in central heating, air conditioning, solar and heat pump systems. Functions: ✔ equipped with a power cable. ✔ 10 operating modes (characteristics: proportional pressure, constant pressure, constant speed). ✔ AUTO mode. ✔ automatic restoration of settings after power is restored. Technical data: • Maximum flow: 3.2 m³/h. • Maximum head: 6 m. • Installation length: 130 mm. • Connection port diameter: G 1". • Nominal diameter: DN15. • Pumped medium temperature: 2 °C - 95 °C. • Temperature class: TF = 95 °C. • Maximum operating pressure: 10 bar. • Acceptable ambient temperature: 0 - 40 °C. • Supply voltage: 230 V (50 Hz). • Power consumption: 45 W. • Current: 0.5 A. • Protection rating: IP44. • Insulation class: E. • Energy efficiency index (EEI): ≤ 0.20. • Pumped liquid: water according to standard PN-C-04607:1993 (free of solid particles, fibres and other impurities) and water-glycol solution with a concentration of up to 50%.
