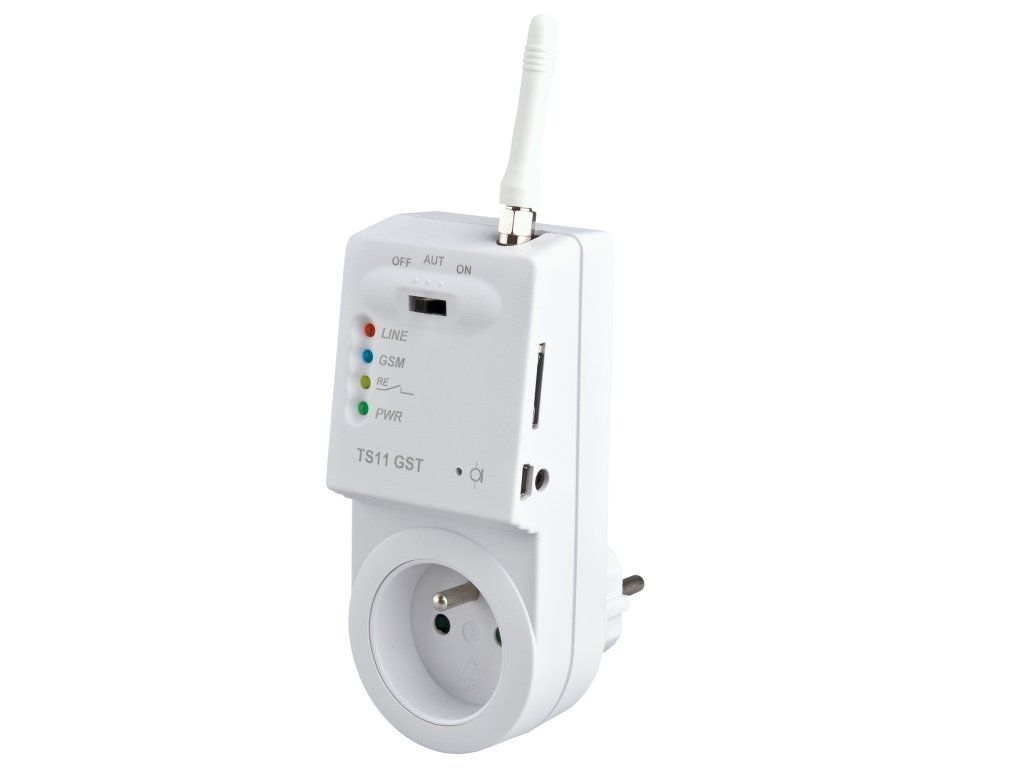

GSM socket TS11 GST

Product detailed description

Features of TS11 GST:

The GSM socket is equipped with an input for a temperature sensor or a potential-free contact. This analog input extends the usability of the socket both for temperature regulation and for alarm states. The GSM socket also includes an integrated microphone for listening in.  Insert SIM cards of type: MiniSIM (2FF)

All functions can be set using the clear TS11GST-SW software (available for download), which is included in the package, or directly by commands from the phone - see the manual. New feature: control via apps for Android or iOS:

  Application for Android

(a new version for Android is available - please note the app name has changed to EOB TS-GST!)

  Application for iOS

(a new version for iOS is available - please note the app name has changed to EOB TS-GST!)

TS11 GST allows you to set the following functions:

• Automatic sending of an SMS when temperature limits measured on the input are exceeded
• Missed call to 1 phone number when temperature limits are exceeded
• Automatic switching of the output when temperature limits measured on the input are exceeded
• Regulation with a hysteresis of 1°C (the relay switches on when the temperature drops 1°C below the required temperature, and switches off when the current temperature equals the required one). Controls the output according to the required temperature on the input
• Automatic sending of an SMS informing about the state (closing or opening) of the input contact
• Missed call to 2 phone numbers when the input contact state changes
• Automatic switching of the output contact when the input state changes
• Timed control of the output. The output is activated by a command SMS message with the switching time specified directly in the SMS message (from 1 minute to 999 minutes = 16 hours 33 minutes)
• Output control by a missed call for a period t (1s to 23h 59min 59s)
• Activating listening-in by a missed call
• Restart, brief switching off of the socket output for 20s (for servers).
• Indicator LED for checking the status of the GSM socket.

Where to use the TS11 GST module in practice?

• connection to an existing alarm system
• monitoring door opening, monitoring level
• connection to a fire alarm
• monitoring minimum and maximum temperature (e.g. in a building, greenhouse ...)
• for controlling gates, barriers
• switching heating, air conditioning, lighting, pool filtration, pumps, irrigation...

PC software requirements:

 Installation for Win10 notice:

When installing the TS11GST-SW software, you must  enable .NET framework 2.x!

1. The program requires installation of the .NET framework version 3.5 (choose according to your system) library or higher (included on the CD)

2. Tested on Windows XP, Win7, Win 8

3. For the TS11 GST you need drivers, available for download at http://www.ftdichip.com/Drivers/VCP.htm (included on the CD)
