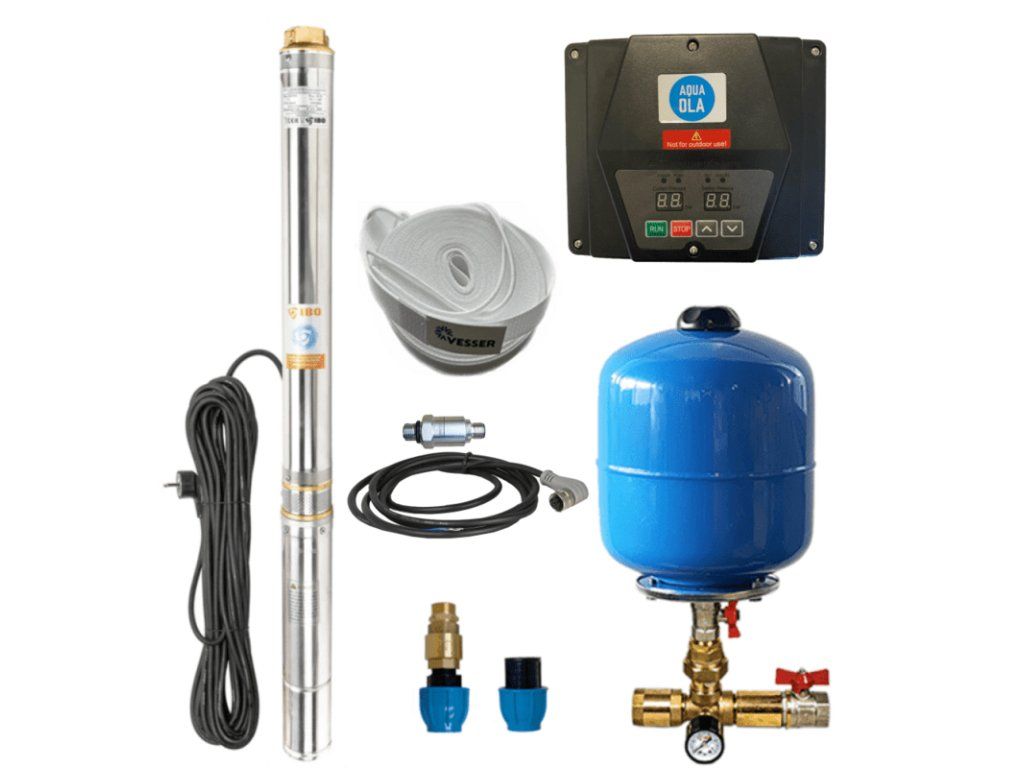

Home Water Pump Station with Submersible Pump 3 - SDM24 with Frequency Converter - RTS, water pump

Product detailed description

Home water pump station with submersible pump 3 - SDM24 with frequency converter for setting the required pressure in the system. Use: constant pressure regulation in the system via the frequency converter pumping utility and drinking water from deep and narrow boreholes and wells transferring water between tanks irrigation and spraying setting up water supply systems for family houses, cottages, community and agricultural buildings water supply automatic pressure stations suitable for both home and professional use suitable for continuous operation The IBO 3 - SDM24 submersible pump has increased resistance to sand or other abrasive substances that may be present in the water. RTS (Resistance To Sand = resistant to sand). The hydraulic part of the IBO 3 - SDM24 pump is separated from the motor (the pump is not built as a monoblock) - in the event of a fault, the pump can be easily disassembled. Any repair (which we carry out) need not be too costly, and above all is quick, which is a major advantage in the event of a fault. The pump is equipped with thermal protection - a fuse. The IBO 3 - SDM24 submersible pump is also suitable for small and medium fire-fighting stations, or as part of a home water pump station with a submersible pump. Advantages: electronic motor speed control via the built-in frequency converter soft, smooth pump start-up protection against dry running and low water level protection against overvoltage and undervoltage overload protection overheating protection stainless steel construction guarantees long service life and corrosion protection encapsulated single-phase motor floating impellers mounted in their own bearing suitable for pumping from depths greater than 8 m; submersion depth 50 m below water level suitable for home and industrial use easy installation and removal The home water pump station with submersible pump 3 SDM24 with frequency converter includes: 3 SDM24 submersible pump IQ-E 2.2kW frequency converter + pressure sensor 8 l pressure tank with fitting 5/4" x 1" reducing nipple 1" check valve 32x1" adapter with external thread, 2x suspension device for submersible pumps
