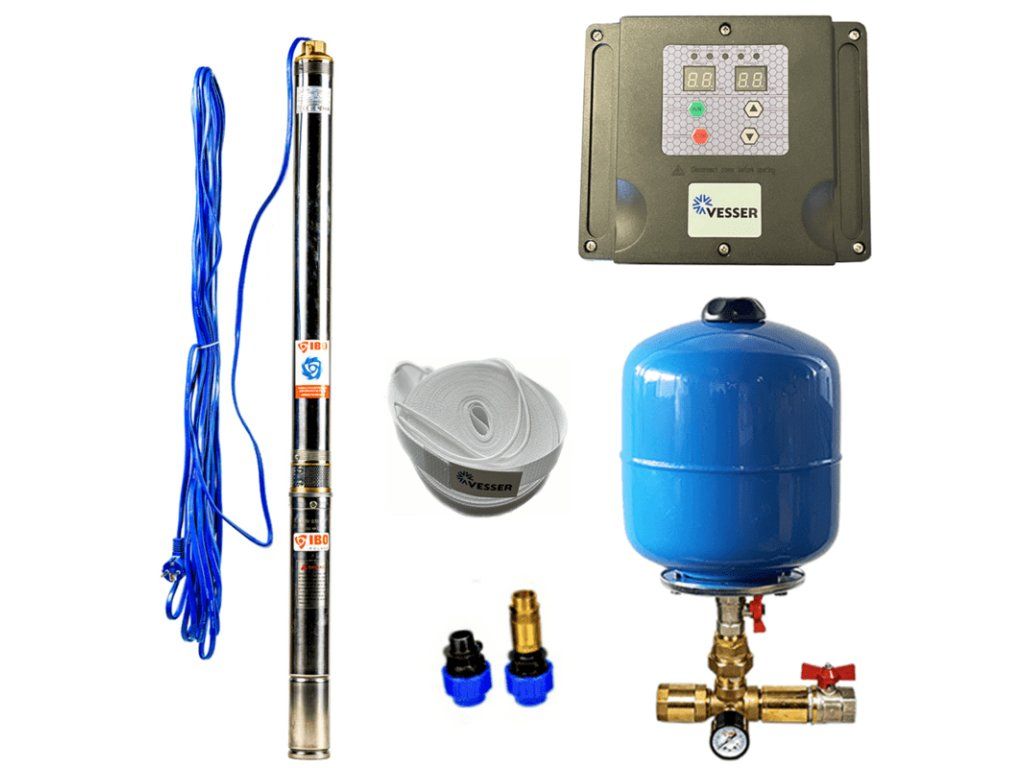

Home Water Pump Station with Submersible Pump 3Ti-20 with Frequency Converter - RTS, water pump set

Product detailed description

Use: constant pressure regulation in the system via the frequency converter pumping utility and drinking water from deep and narrow boreholes and wells transferring water between tanks irrigation and spraying setting up water supply systems for family houses, cottages, community and agricultural buildings water supply automatic pressure stations suitable for both home and professional use suitable for continuous operation The 3Ti-20 submersible pump has increased resistance to sand or other abrasive substances that may be present in the water. The RTS designation on the submersible pump stands for Resistance To Sand. This submersible pump is also designed for new, fresh boreholes, wells, tanks, reservoirs and collection shafts. The pump is suitable for boosting pressure when installed in a distribution pipeline, and also for home or industrial use, irrigation, or spraying with water. The hydraulic part of the 3Ti-20 pump is separated from the motor (the pump is not built as a monoblock - in the event of a fault, the pump can be easily disassembled). Any repair (which we carry out) need not be too costly, and above all is quick, which is a major advantage in the event of a fault. The pump is equipped with thermal protection - a fuse. The 3Ti-20 submersible pump is also suitable for small and medium fire-fighting stations, or as part of a home water pump station with a submersible pump. Advantages: electronic motor speed control via the built-in VESSER frequency converter soft, smooth pump start-up protection against dry running and low water level protection against overvoltage and undervoltage overload protection overheating protection stainless steel construction guarantees long service life and corrosion protection encapsulated single-phase motor floating impellers mounted in their own bearing suitable for pumping from depths greater than 8 m suitable for home and industrial use easy installation and removal Home water pump station with submersible pump 3Ti-20 with frequency converter includes: 3Ti-20 submersible pump IQ-E 2.2kW frequency converter 8 l pressure tank for system pressure equalization, with connection fitting 1" nipple 1" check valve 32x1" adapter with external thread, 2x Suspension device for submersible pump suspension device for submersible pumps
