Hunter tryska SS-530

Product detailed description

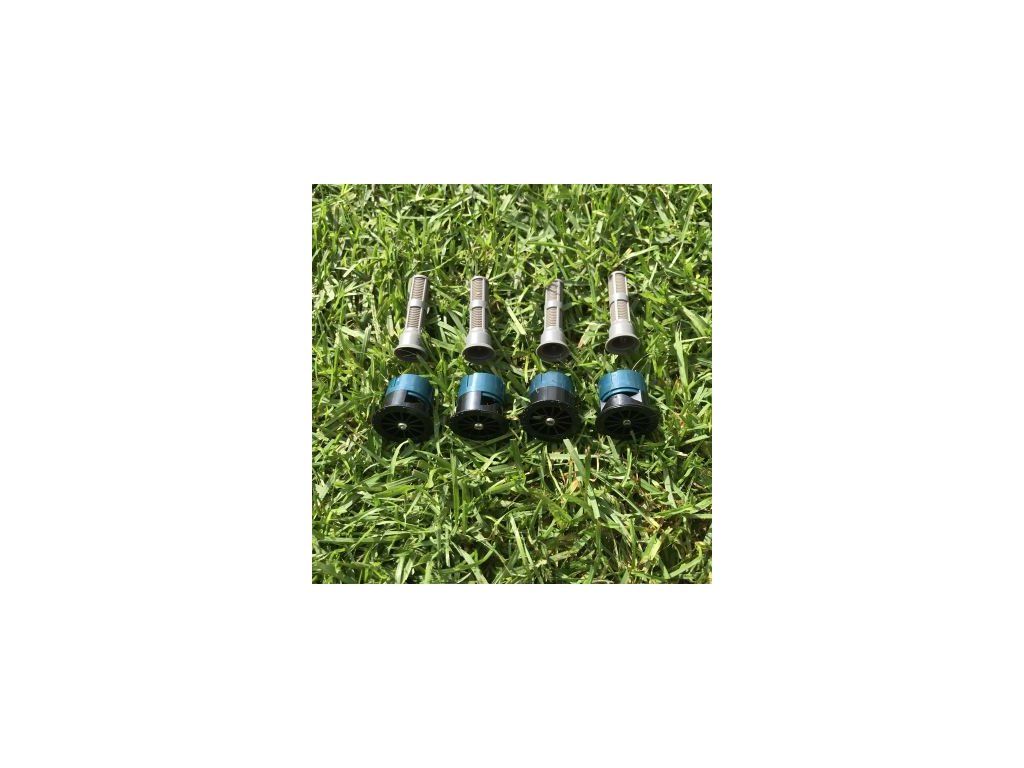

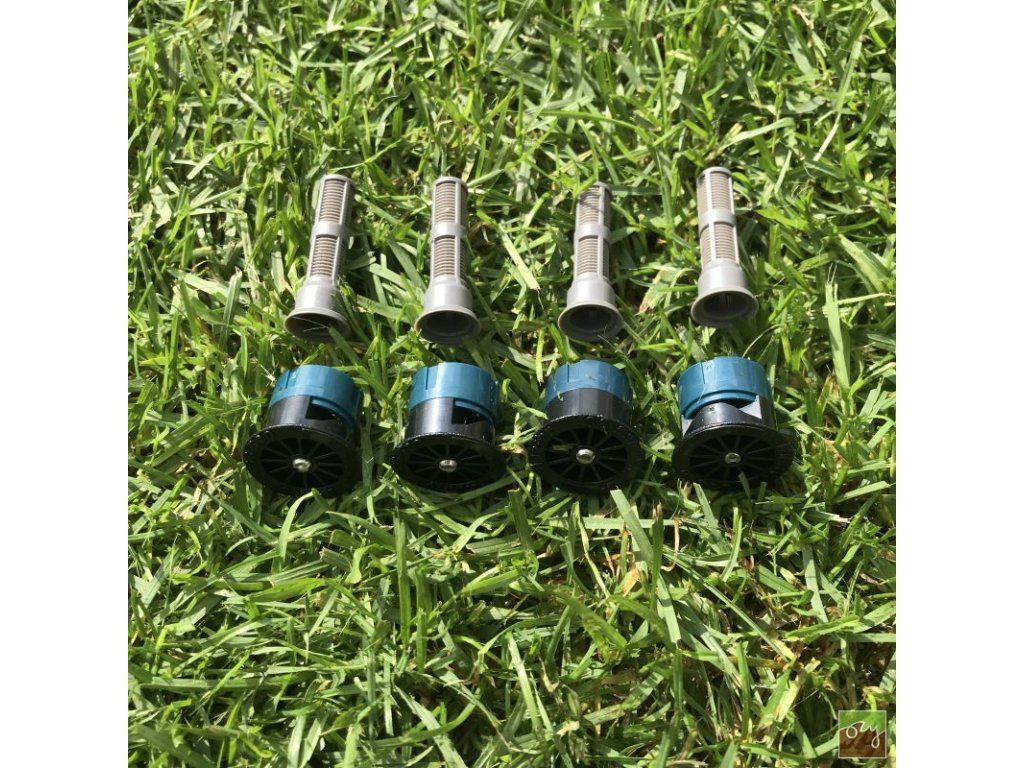

The Hunter SS-530 spray nozzle, designed for medium range, equipped with a fixed spray angle, ensures excellent water distribution over a rectangular area of 1.5 x 9.1 m. It serves as a universal nozzle for all kinds of static pop-up sprinklers. It is ideal for narrow and long lawn areas, garden planters, and rock gardens.
Using a key, the range of the nozzle can be reduced by up to 25%. The color marking on top allows for quick verification of correct installation.
The nozzle head also contains a replaceable safety filter. The operating pressure ranges between 2.1 and 3.5 bar (optimal is 2.8 bar).
When planning the placement of nozzles, it is necessary to respect the rule of overlapping neighboring sprinklers. This means that the distance between individual sprinklers should correspond to the range of their spray. Based on this, it is possible to determine which nozzle is suitable for a given type of sprinkler.

The nozzle head also has a built-in replaceable safety filter. The operating pressure is in the range of 2.1 to 3.5 bar (recommended is 2.8 bar).

CHOOSING THE RIGHT NOZZLE

When designing the layout of the nozzles, it is necessary to follow the principle of mutual overlap of neighboring sprinklers. This means that the distance between sprinklers should be equal to the range of the nozzles' spray. Based on this, we can determine which nozzle should be chosen for a given sprinkler.
