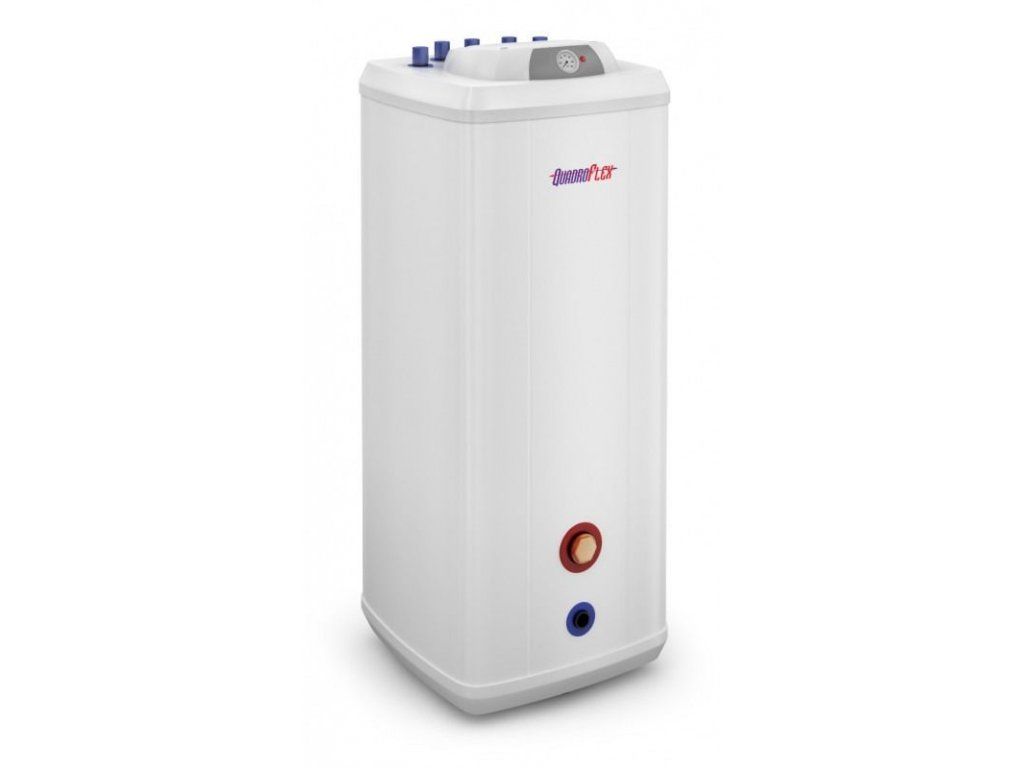

Indirect-heating storage tank QUADROFLEX BCH 140
Code: 5SK 26-145500Product detailed description
QUADROFLEX BCH hot water storage tanks with a tube heat exchanger are designed for indirect heating of hot water in family homes and businesses. They allow several draw-off points to be connected at the same time. Their compact dimensions and adjustable feet allow stable placement on the floor under your wall-mounted gas boiler or another source of the heating medium needed to heat the water in the tank. BCH tanks have a similar width to wall-mounted boilers and a square shape to save space. They are suitable for all types of conventional or condensing boilers. The high output of the heat exchanger ensures fast heating of the water in the tank and a sufficient amount of hot water even for the most demanding users.- Very fast hot water preparation thanks to the high-output heat exchanger
- All hydraulic connections are on top, including the circulation connection
- Inner tank protected by EXTRA GLASS glass-ceramic enamel
- Large-sized magnesium anode
- Thermometer on the front
- Recess for the boiler connection set
- Thick, freon-free polyurethane thermal insulation
- Drain outlet
- Fitting at the bottom for installing a 5/4" electric heating element (element not included)
- Bottom and top cleaning openings
- 3 height-adjustable feet to compensate for an uneven floor
- Safety valve combined with a non-return valve
- Suitable dimensions - the tank width is similar to that of wall-mounted gas boilers
- Exclusive design to form a single unit with the wall-mounted boiler
- 5-year tank warranty
- ERP class C
Design square water tank with a tube heat exchanger and top connections
Additional parameters
| Category: | Indirect-Heated Storage Tanks |
|---|---|
| Weight: | 72 kg |
| EAN: | 590122441654 |
| Energy class for DHW preparation: | C |
| Usable water volume: | 140 L |
| Max operating pressure of the tank: | 6 Bar |
| Max operating pressure of the heating circuit: | 6 Bar |
| Max water temperature: | 100 °C |
| Max heating medium temperature: | 110 °C |
| Heat exchanger volume: | 5.2 L |
| Heat exchanger heating surface: | 1.2 m² |
| Heat transfer medium flow rate: | 2.5 m³/h |
| Continuous hot water output 80/10/45°C: | 933 l/h |
| Static heat loss: | 74 W |
| Heat-up time via exchanger ∆t=45°C (15-60°C): | 15 h:min |
| Anode rod dimension - thread 5/4": | 25x550 mm |
| Heating water connection (B): | 3/4″ |
| Domestic water connection (A): | 3/4″ |
| Heating water connection spacing: | 280 mm |
| Domestic water connection spacing: | 120 mm |
| DHW circulation connection: | 3/4″ coll |
| Drain valve socket: | 3/4″ coll |
| Socket for electric heating element connection: | 5/4″ coll |
| Height: | 1300 mm |
| Width: | 455 mm |
| Depth: | 455 mm |
| Net weight: | 72 kg |
