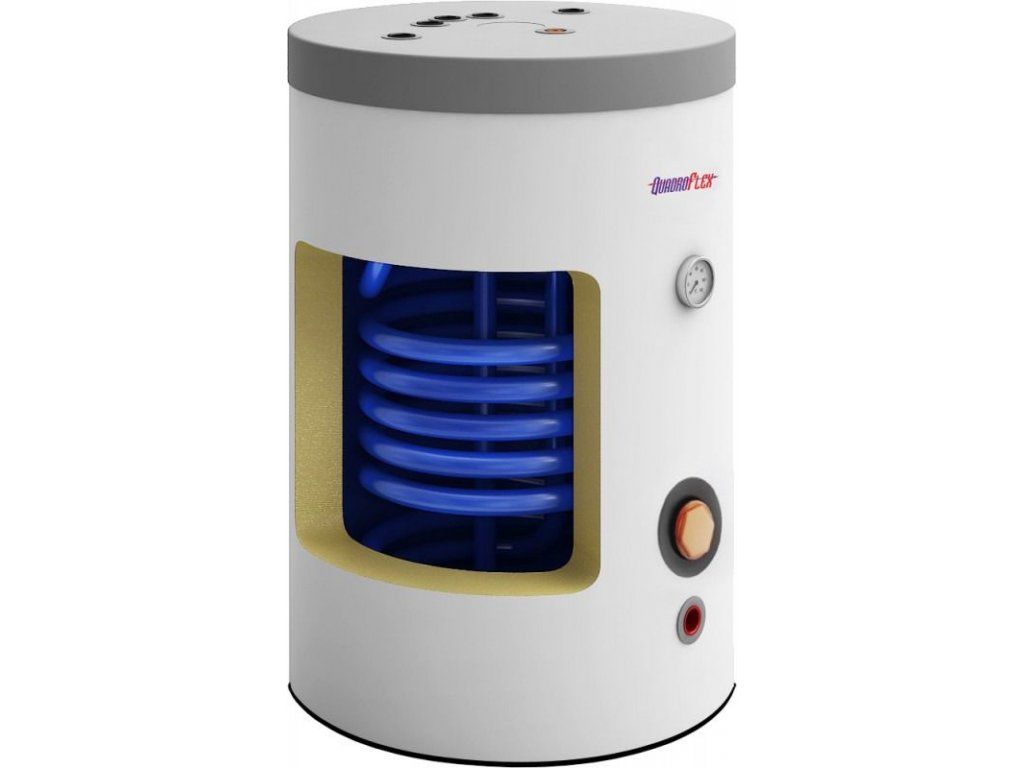

Indirect-heating storage tank QUADROFLEX BCO 100
Code: 5SK 26-107000Product detailed description
QUADROFLEX BCO hot water storage tanks with a tube heat exchanger are designed for indirect heating of hot water in family homes and businesses. They allow several draw-off points to be connected at the same time. Their compact dimensions and adjustable feet allow stable placement on the floor under your wall-mounted gas boiler or another source of the heating medium needed to heat the water in the tank. They are suitable for all types of conventional or condensing boilers. The high output of the heat exchanger ensures fast heating of the water in the tank and a sufficient amount of hot water even for the most demanding users.- Very fast hot water preparation thanks to the high-output heat exchanger
- All hydraulic connections are on top, including the circulation connection
- Inner tank protected by EXTRA GLASS glass-ceramic enamel
- Large-sized magnesium anode
- Thermometer on the front
- Recess for the boiler connection set
- Thick, freon-free polyurethane thermal insulation
- Drain outlet
- Fitting at the bottom for installing a 5/4" electric heating element (element not included)
- Bottom and top cleaning openings
- 3 height-adjustable feet to compensate for an uneven floor
- Safety valve combined with a non-return valve
- Suitable dimensions - the tank width is similar to that of wall-mounted gas boilers
- Exclusive design to form a single unit with the wall-mounted boiler
- 5-year tank warranty
- ERP class B
Storage water heater with a tube heat exchanger for placement under a boiler
Additional parameters
| Category: | Indirect-Heated Storage Tanks |
|---|---|
| Weight: | 61 kg |
| EAN: | 5901224417009 |
| Energy class for hot water preparation: | B |
| Usable water volume: | 100 L |
| Max operating pressure of tank: | 10 Bar |
| Max operating pressure of heating circuit: | 16 Bar |
| Max water temperature: | 100 °C |
| Max heating medium temperature: | 110 °C |
| Heat exchanger volume: | 8.5 L |
| Heat exchanger heating surface: | 0.8 m² |
| Heat transfer medium flow rate: | 1.2 m³/h |
| Continuous hot water output 80/10/45°C: | 833 l/h |
| Static heat loss: | 42 W |
| Heat-up time by exchanger ∆t=45°C (15-60°C): | 0:14 h:min |
| Anode rod dimension - thread 5/4": | 38X400 mm |
| Heating water connection (B): | 1″ |
| Domestic water connection (A): | 1″ |
| Heating water connection spacing: | 370 mm |
| Domestic water connection spacing: | 120 mm |
| DHW circulation connection: | 1″ coll |
| Socket for drain valve: | 1″ coll |
| Socket for electric heating element connection: | 5/4″ coll |
| Height: | 795 mm |
| Diameter: | 600 mm |
| Thermal insulation thickness: | 45 mm |
| Net weight: | 61 kg |
