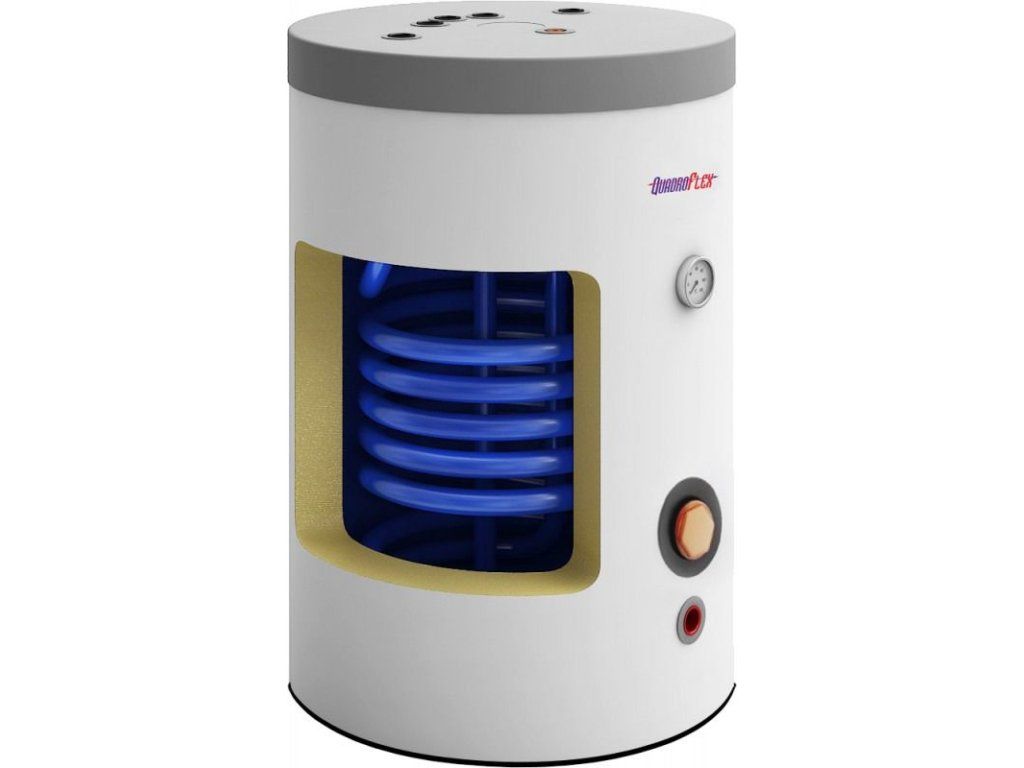

Indirect Heating Storage Tank QUADROFLEX BCO 120
Code: 5SK 26-12700Product detailed description
QUADROFLEX BCO hot water tanks with a tube heat exchanger are designed for indirect hot water heating in family houses and commercial premises. They allow several draw-off points to be connected simultaneously. Their compact dimensions and adjustable feet allow stable floor placement under your wall-hung gas boiler, or any other source of the heating medium needed to heat the water in the tank. They are suitable for all types of conventional or condensing boilers. The high output of the heat exchanger guarantees fast heating of the water in the tank and enough hot water even for the most demanding consumers.- Very fast domestic hot water preparation thanks to the high-output heat exchanger
- All hydraulic connections are on top, including the circulation connection
- Inner tank protected by EXTRA GLASS glass-ceramic enamel
- Large-sized magnesium anode
- Thermometer on the front
- Recess for the boiler connection set
- Thick, freon-free polyurethane thermal insulation
- Drain opening
- Fitting at the bottom for installing a 5/4" electric heating element (element not included)
- Bottom and top cleaning opening
- 3 height-adjustable feet to compensate for an uneven floor
- Safety valve combined with a check valve
- Suitable dimensions - the tank width is similar to that of wall-hung gas boilers
- Exclusive design to form a single unit with the wall-hung boiler
- 5-year warranty on the tank
- ERP class B
Storage water heater with tube heat exchanger for placement under a boiler
Additional parameters
| Category: | Indirect-Heated Storage Tanks |
|---|---|
| Weight: | 70 kg |
| EAN: | 590122441699 |
| Energy class for DHW preparation: | B |
| Domestic hot water volume: | 123 L |
| Max operating pressure of tank: | 10 Bar |
| Max operating pressure of heating circuit: | 16 Bar |
| Max water temperature: | 100 °C |
| Max heating medium temperature: | 110 °C |
| Heat exchanger volume: | 10.4 L |
| Heat exchanger heating surface: | 1.2 m² |
| Heat transfer medium flow rate: | 1.4 m³/h |
| Continuous hot water output 80/10/45°C: | 933 l/h |
| Static heat loss: | 48 W |
| Heating time via heat exchanger ∆t=45°C (15-60°C): | 13.2 h:min |
| Anode rod dimension - thread 5/4": | 38x400 mm |
| Heating water connection (B): | 1″ |
| Domestic water connection (A): | 1″ |
| Heating water connection spacing: | 370 mm |
| Domestic water connection spacing: | 120 mm |
| DHW circulation connection: | 1″ coll |
| Drain valve connection socket: | 1″ coll |
| Electric heating element connection socket: | 5/4″ coll |
| Height: | 915 mm |
| Diameter: | 600 mm |
| Thermal insulation thickness: | 45 mm |
| Net weight: | 70 kg |
