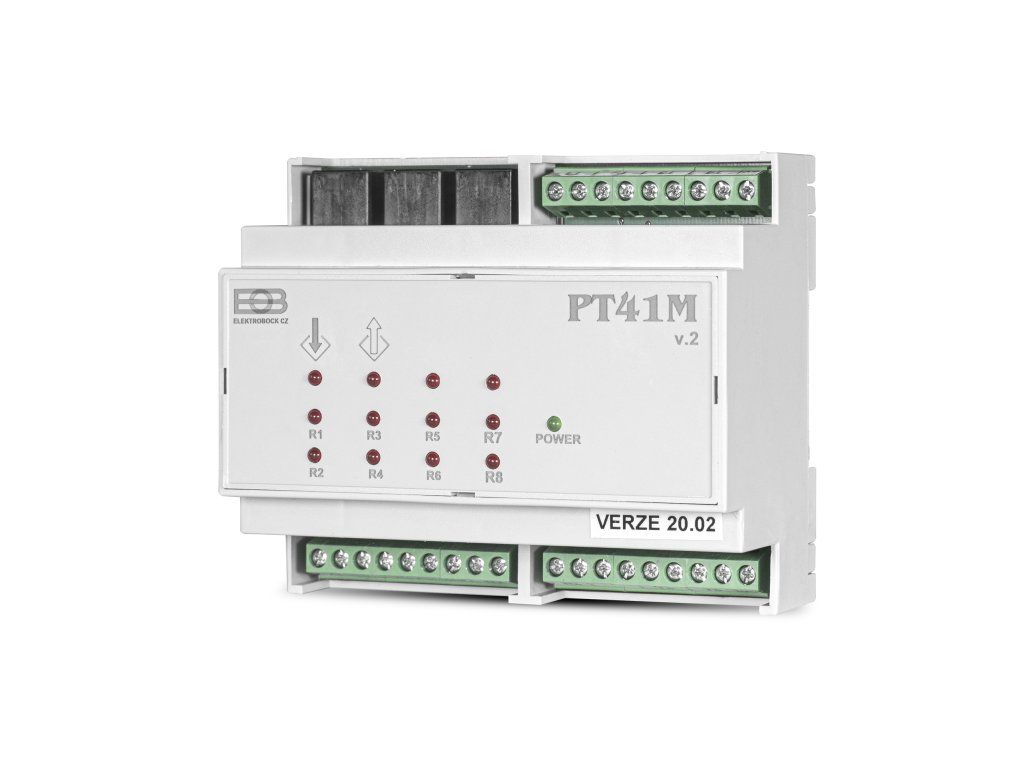

Jednotka master PT41-M

Product detailed description

Features of PT41-M:

NEW VERSION FROM 1.03.2021 (firmware 20.01)!

• possibility to control the system via server, no fixed public address required (PRE40 v.2 required!)
• improved EOB-PT41 application with priority indication, sum of operating hours
• possibility to reset all units by connecting via USB

The EOB-PT41 application is required to control PT41-M v.2:

NEW EOB-PT41 application for win10  FREE download on Windows store

NEW EOB-PT41 application for android  FREE download on

NEW EOB-PT41 application for iOS  FREE download on App store

Privacy Policy

PT41-M (firmware version 12.02+):

• possibility to control the system via the internet,

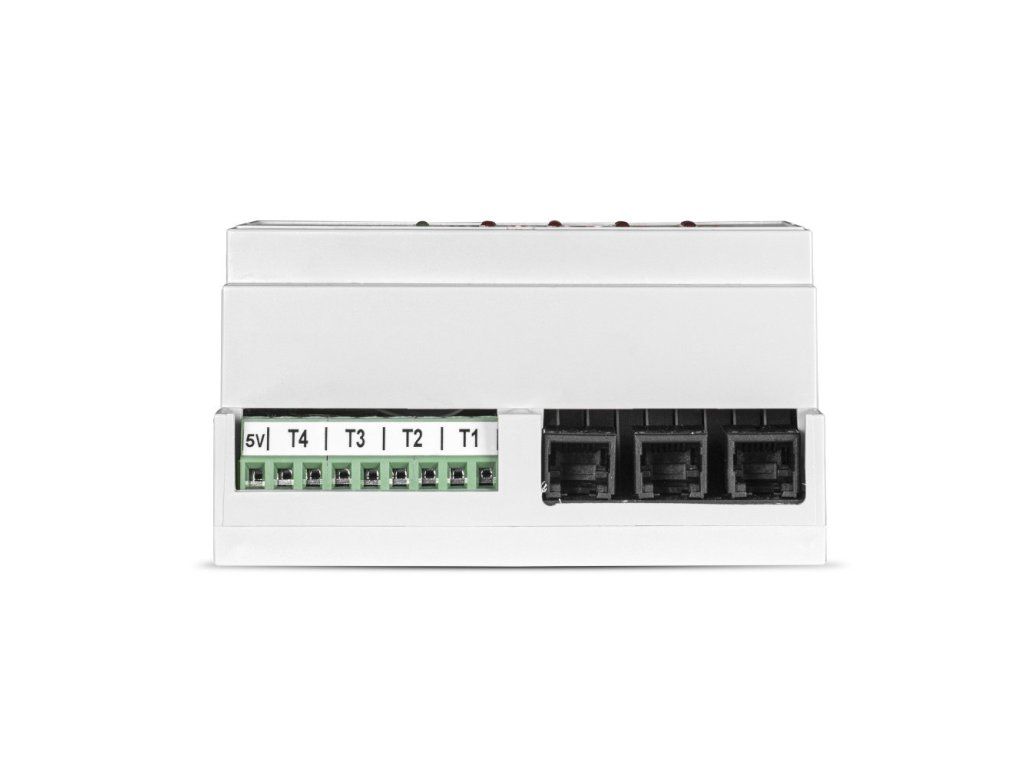

• choice of connecting temperature sensors or room thermostats,
• priority setting for each zone,
• possibility of correcting the measured temperature,
• choice of switching the circulation pump only according to the current unit,
• can be used not only for hot-water underfloor heating
• choice of synchronization direction (from the application to the unit or from the unit to the PC)
• added possibility of activating a setback temperature (adjustable) - once activated, the given zone will be tempered to this value until the setback mode is cancelled.
• added service password to prevent unauthorized reconfiguration of the unit

The PT41 applications are used to control older PT41-M units (firmware 12.02+):

PT41 application for win10  FREE download on Windows store

PT41 application for android  FREE download on

PT41  application for iOS  FREE download on App store

The PT41-M unit can also be programmed via PC (using the PRE-RS232/USB converter).

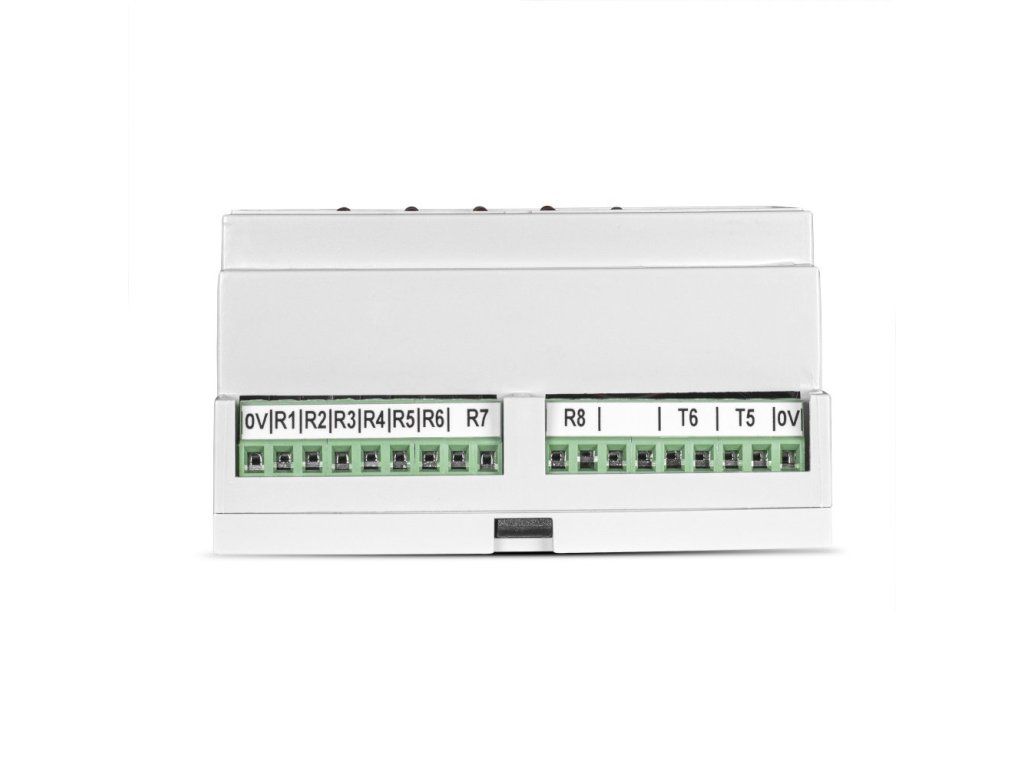

When one of the heating circuits (R1-R6) is switched on, output R7, to which e.g. a pump can be connected, is switched on within 1 min. Within 5s of R7 switching on, output R8, which is designated for switching the boiler, also switches on. Switching off occurs in reverse order, first the boiler (R8) switches off, then within 5s the pump (R7).

With a permanent connection to a PC, it is possible to obtain current data from all zones and create statistics for individual zones over a certain period.

Functions of PT41-M:

• regulates up to 6 zones according to the set program
• 2 outputs (R7 and R8) are used for switching the pump and the boiler

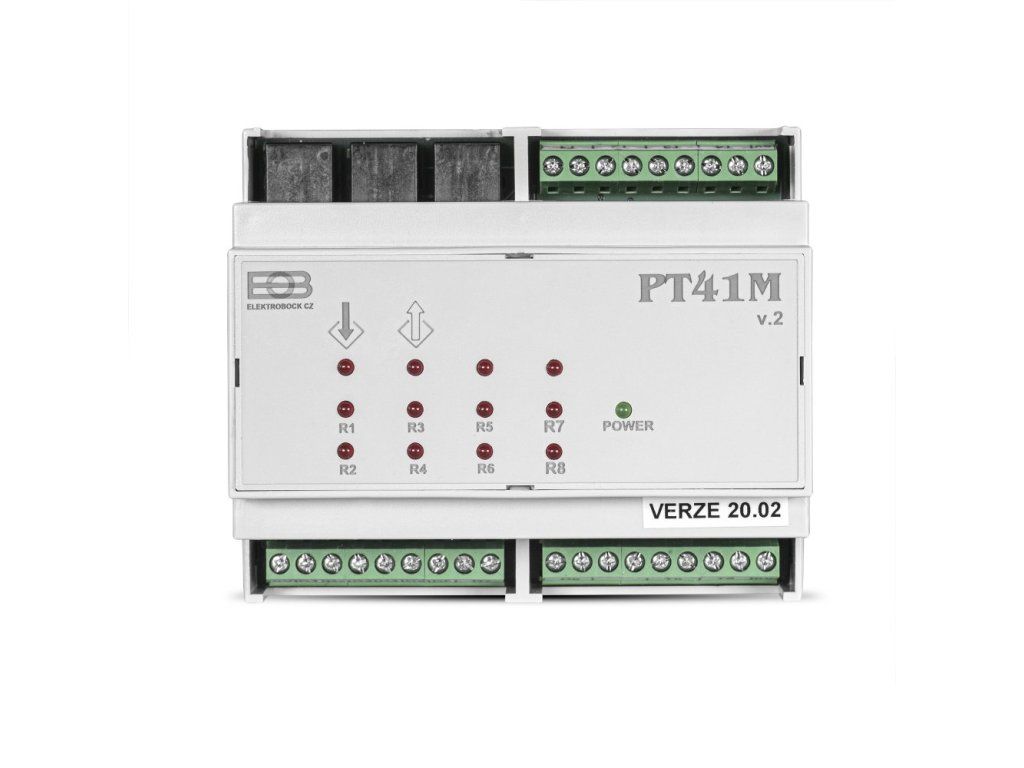

• every state change is indicated by an LED on the front panel
• once set up, it works completely autonomously
• possibility of expansion with additional zones using PT41-S units.

WHAT NEEDS TO BE PURCHASED ADDITIONALLY:

• AD05-DIN POWER SUPPLY
• USB CONVERTER PRE-RS232/USB
• ETHERNET/WiFi CO NVERTER  PRE-40  for remote control
