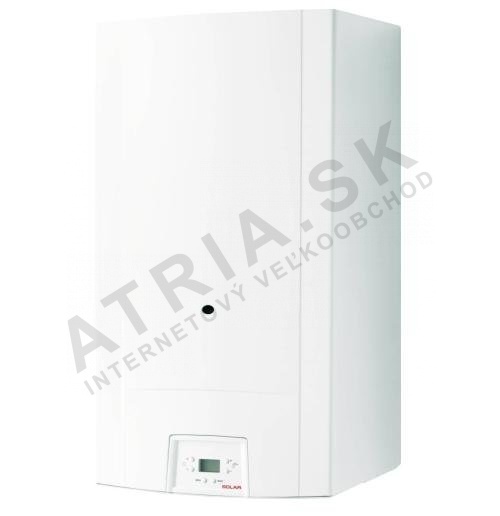

Karma SOLAR 26 FCX
Code: NC-12654Product detailed description
Karma SOLAR 26 FCX - gas condensing boiler for solar systems for heating and DHW heating
Wall-mounted gas condensing boilers, compared to conventional boilers, additionally make use of the heat contained in the flue gases. Thanks to this system, condensing boilers have about 15% higher efficiency and roughly up to 25% lower gas consumption compared to classic boilers. Using condensing boilers together with underfloor heating or with a large radiator heating surface is very advantageous.
Wall-mounted gas condensing Karma Solar series boilers are intended for heating (CH) family houses, flats, etc. and for heating domestic hot water (DHW) - provided via a plate heat exchanger. The Solar boiler is designed for connection to a system with solar panels and a storage tank. Another heat source, e.g. a wood boiler from the Forest series, can also be connected into the system. Heat is drawn from the storage tank heated by the solar panel for heating DHW and heating water.
Only when there are increased demands on the temperature and quantity of DHW, or under unfavourable weather conditions, is the additional heating of DHW ensured by the boiler. This results in a significant reduction in gas consumption.
The SOLAR 26 FCX boiler has a very low NOx content in the flue gases, is more environmentally friendly, and is intended for installation in locations with stricter emission requirements. Flue gases are discharged either through a coaxial or a split pipe through the wall - a Turbo system.
Technical parameters:
- Dimensions (h x w x d): 880 x 450 x 360 mm
- Weight: 43 kg
- Input: 10.5 - 25 kW
- Flue gas discharge: Turbo
- Sealed combustion chamber - air intake and flue gas discharge outside the room
- Primarily copper heat exchanger
- Electronic burner flame modulation
- Practical control panel with buttons and a display showing current values
- WINTER - SUMMER function for CH and DHW
- Option to connect an outdoor sensor for weather-compensated control, the boiler then heats the heating water depending on the outdoor temperature
- Precise control of domestic hot water temperature setting, precise control of heating water temperature, thermometer and pressure gauge of heating water
- Safety valve - 3 bar, expansion vessel with a volume of 7.5 l
Additional parameters
| Category: | Karma |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one: | https://www.atria.sk/protherm-gepard-condens-18-25-mkv/ |
| The item has been sold out… | |
