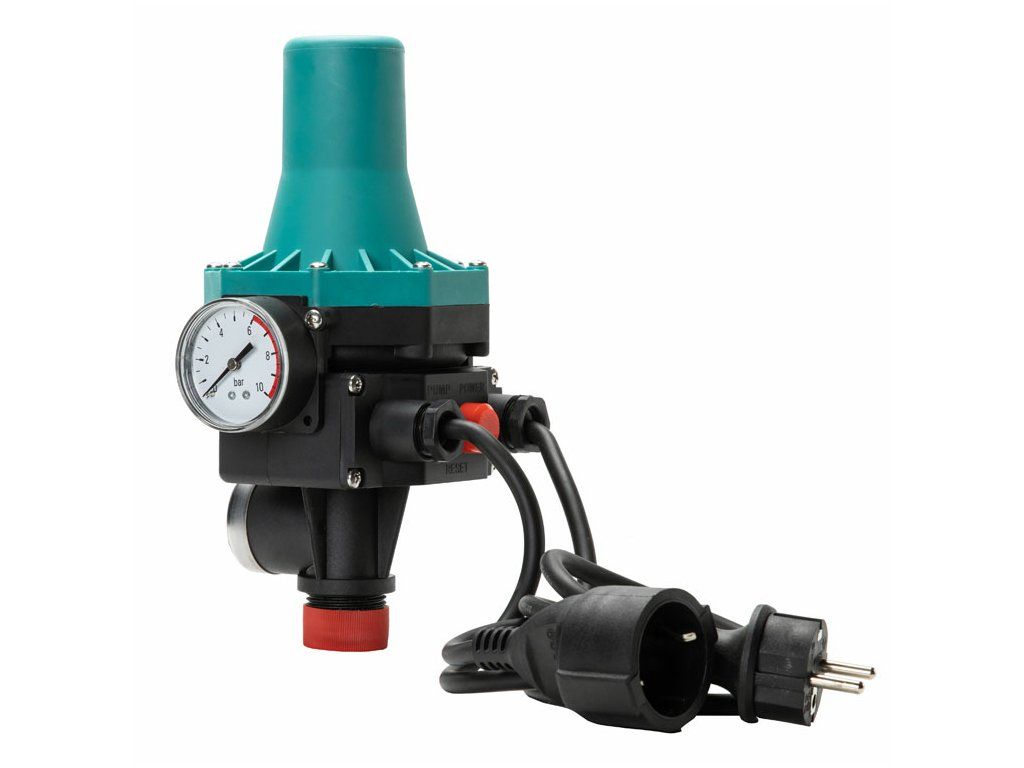

PC-13 Control Unit with Pressure Gauge, Press Control for Pumps and Home Water Systems

Product detailed description

An electronic pump run switch, also known as a press control, performs the function of a pressure switch. This allows the automation of an electric water pump depending on a drop in pressure and the stopping of water flow in the system (by opening and closing the device's electrical contacts). The PC-13 press control unit with pressure gauge also provides dry-run protection - it switches the pump off when running without water. After switching off, it is put back into operation by pressing the RESET button. We recommend using the PC-13 press control unit with pressure gauge in clean water systems without dirt or sediment. Otherwise, a suitable filter must be installed on the inlet side of the device. Advantages: ease of use built-in check valve can be used as an automatic unit for pumps and water systems without a pressure tank (automatic water system) BRIO PC-13 control unit: automatic pump switching on and off when opening/closing a tap built-in check valve and integrated dry-run protection pressure gauge rated current: up to 10A operating voltage: ~ 230 V ± 10% / 50 Hz connection: inlet and outlet, each with an external thread of 2.54 cm (G1") maximum operating pressure: approx. 10 bar maximum water temperature: approximately 60 °C manual switch reset switch-on pressure in the range of 1.5 bar switch-off pressure adjustment is not possible volumetric flow rate: approximately 150 litres/min dimensions (H x W x D): 15 x 13 x 23 cm weight: approximately 1.3 kg protection class IP65 Operation and basic data: The PC-13 unit with pressure gauge starts the pump running for approximately 15 seconds at the moment of connection. After that, the pump starts every time the working pressure is reached, at the moment the pressure in the system drops, for example when a valve is opened. The PC-13 switches off once the minimum flow value is reached. Once this condition is met, the device delays switching off the equipment by 7 to 15 seconds. This reduces the frequency of pump starts at low flow rates. Installation: The PC-13 unit with pressure gauge can be installed at any point between the pump and the first point of use, so that the direction of the arrow located on the underside of the device (near the thread) between the two 1" connections corresponds to the direction of water flow. Perfect sealing of the hydraulic connections must be ensured in the system. If a pump with a maximum permissible pressure of 6 bar is used, a pressure reducing valve must be installed on the PC-13 inlet. The device is factory-set to 1.5 bar, which is optimal for most applications. Supplied with cables: 1 m cable with plug for connection to the mains 60 cm cable for connection to the pump A suitable alternative is also: the PC-16 control unit. If used with pumps that generate a pressure higher than 6 BAR, we recommend installing a pressure reducing valve in front of the control unit.
