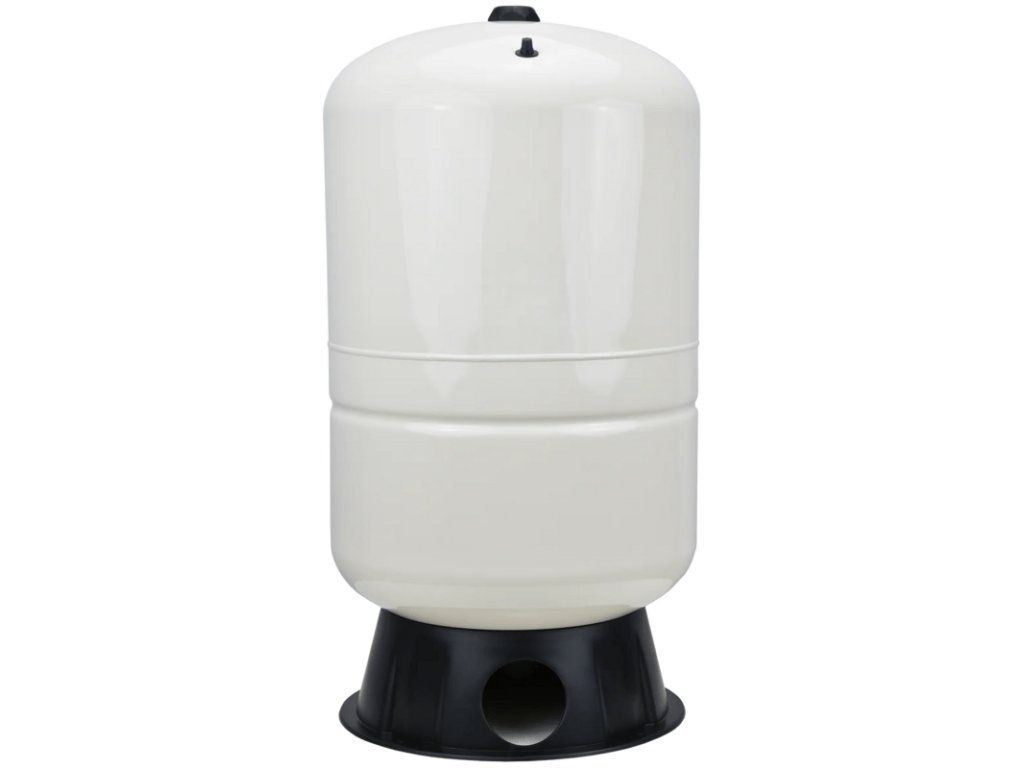

Pressure vessel FIXline 100L vertical, with fixed diaphragm, 10 bar, 1"

Product detailed description

Steel pressure vessel FIXline 100L fitted with a durable, non-replaceable diaphragm made of BUTYL, which separates the liquid from the air chamber. Operating pressure 10 bar. FIXline diaphragm vessels are universal tanks designed for pressure stabilization and water accumulation in hydrophore, heating and DHW systems. Thanks to the steel construction and butyl diaphragm, they ensure a long service life, operational safety and resistance to temperatures up to 90 °C. Designed for: For plumbing installers - reliable, durable vessels with a wide range of applications. For household users - pressure stabilization in cold and hot water supply lines. For hydrophore owners - effective water accumulation and system protection against hydraulic shocks. For owners of central heating and DHW systems - pressure equalization and improved installation safety. For users of installations with frequency converters - smooth operation control and minimization of pressure pulsations. Features of the vertical pressure vessel FIXline 100L, with fixed diaphragm The pressure vessel can be paired with all types of pumps that do not exceed the maximum working pressure of the pressure vessel (10 bar). The diaphragm is characterized by high resistance to stretching and resistance to high temperatures. The vessel's construction allows operation in cold and hot water installations, as well as in heating systems. Each model is fitted with a valve that allows checking and topping up the initial air pressure in the vessel. In accordance with the data sheet, the vessels are designed for operation in installations where the glycol solution concentration does not exceed 50%. Generally speaking, the larger the installed pressure vessel, the fewer pump start cycles there are, and the longer the service life of the entire system. Uses of the vertical pressure vessel FIXline 100L, with fixed diaphragm Stabilization and accumulation of water in hydrophore installations (both vertical and horizontal). Pressure equalization in water installations controlled by frequency converters. Operation in central heating (CH) systems. Operation in domestic hot water (DHW) systems. Use in solar systems and in installations with glycol content up to 50%. FIXline diaphragm vessels ensure pressure stabilization in installations operating across a wide range of temperatures and loads. Technical parameters: Operating temperature: from -10 °C to 90 °C Maximum working pressure: 10 bar Maximum test pressure: 14.3 bar Pre-charge pressure: 1.9 bar ±10% Diaphragm: BUTYL Application: CH, DHW, cold/hot water, installations with glycol ≤ 50% Available versions: vertical (5-100 V), horizontal (24-100 H) Connection: 1" Installation position: vertical
