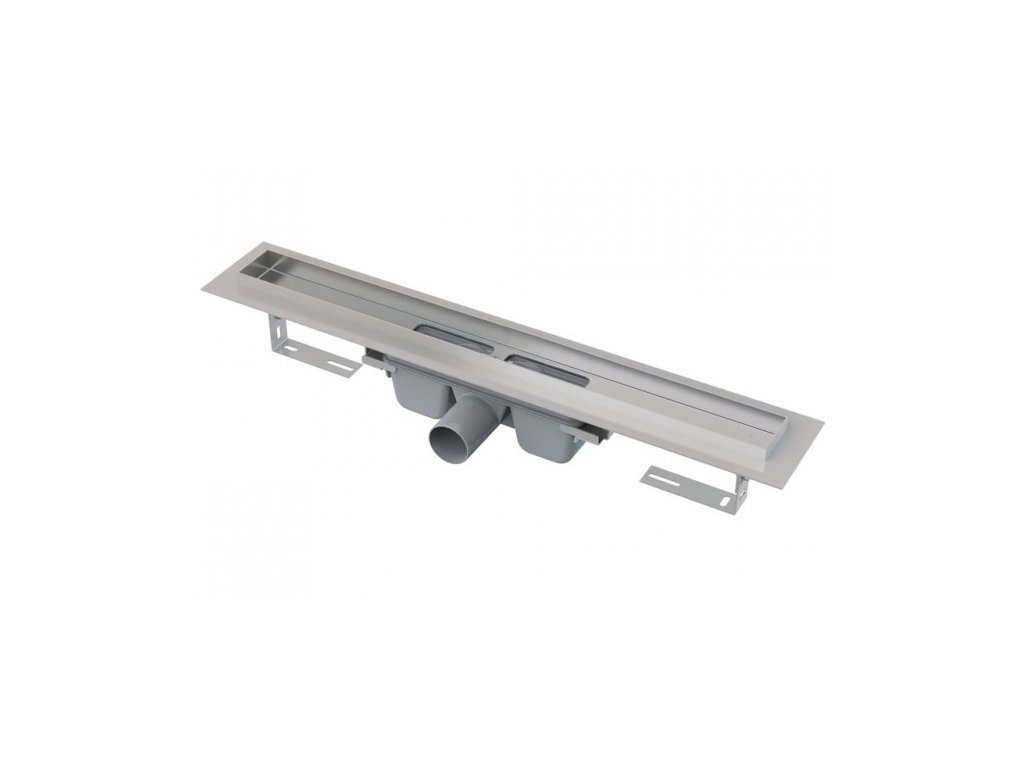

Professional - Floor channel with edge for full-grid, length 750mm

Product detailed description

Length: 750 mm.

Use:
For indoor use
For draining showers at floor level
For installation in open spaces or near walls
For barrier-free access

Features:
Floor drain channel made of stainless steel (material refinement by pickling and passivation, electrochemical polishing)
Installation height from 95 mm
Height adjustable
Siphon permanently connected to the channel - 100% watertightness
Self-adhesive tape for quality waterproofing
Mechanically cleanable siphon up to the drain pipe
Collar and inlet are protected by foil, the tray by a polystyrene insert
High flow rate is enabled thanks to two siphon chambers
Option to purchase a combined odor trap separately
25-year warranty
Channel material: stainless steel AISI 304, DIN 1.4301, ČSN 17240
Siphon material: polypropylene

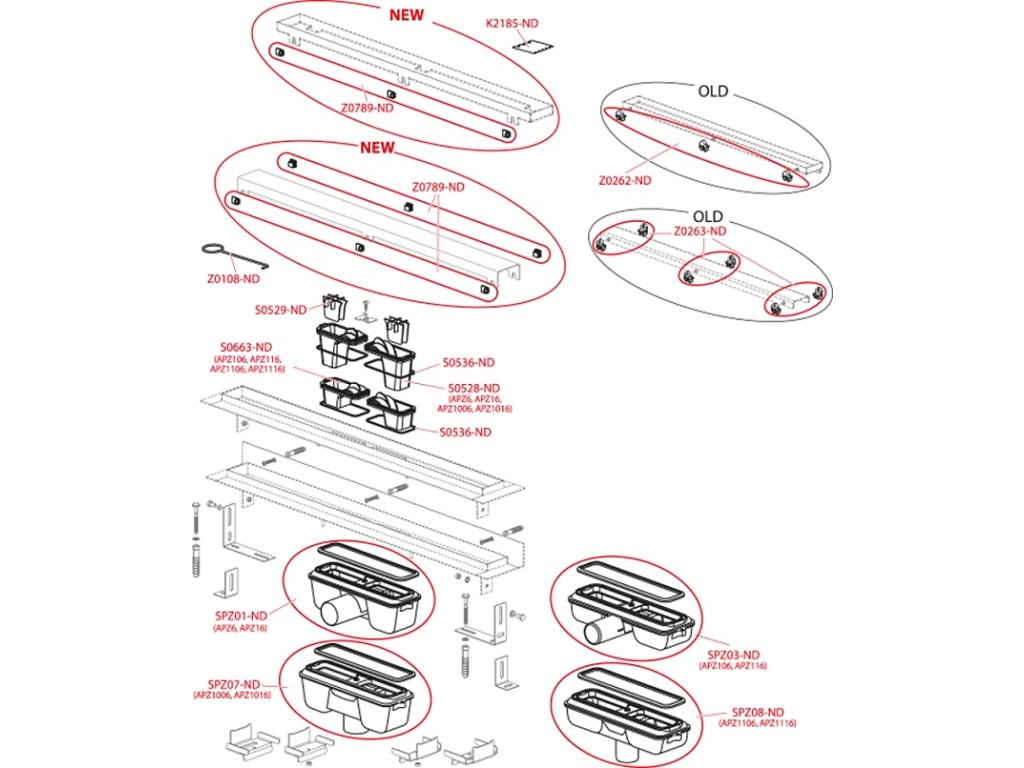

Scope of delivery:
Channel assembled with siphon
Anchoring set: screw Ø6x50 - 2 pcs, dowel Ø10 - 2 pcs
Self-adhesive waterproofing tape
Protective foil for the channel collar and siphon inlet
Installation cover for the trough
Fixing material for attaching adjustable feet: screw M6x12 - 2 pcs
Grate is not included in the delivery!

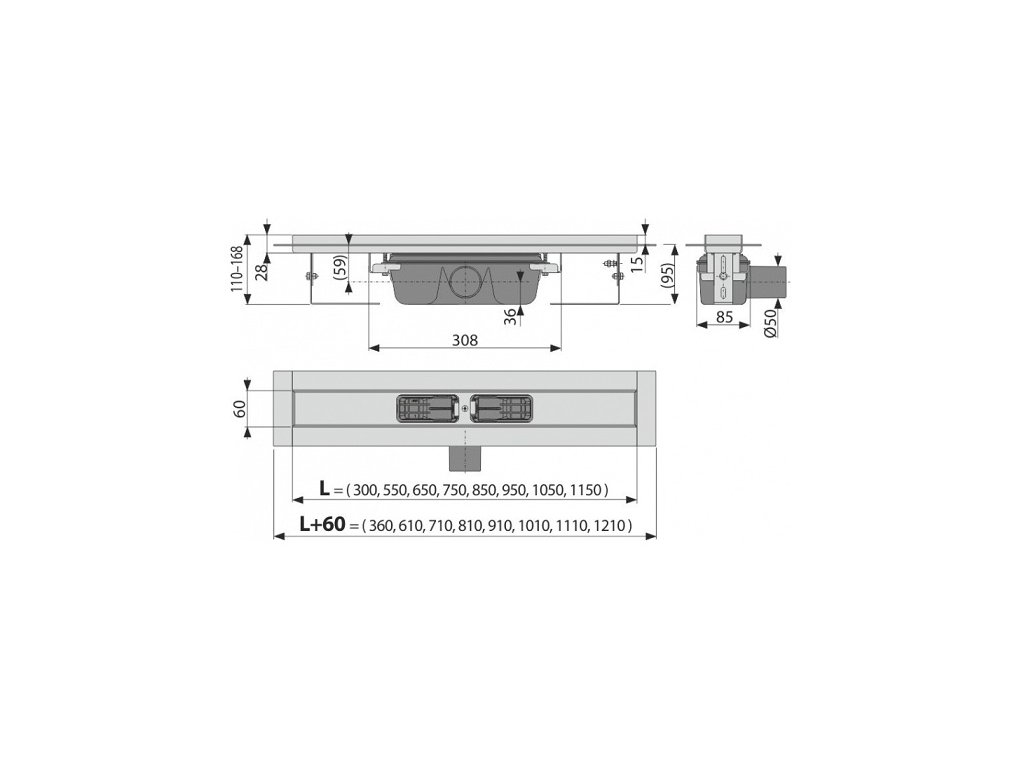

Technical parameters:
Odor trap 50 mm
Flow rate 60-68.8 l/min
Odor trap pressure resistance 982 Pa
Drain pipe diameter 50 mm
Minimum concrete thickness 95 mm
Total installation height 110-168 mm
Load class K3 300 kg

Standards: EN 1253.
