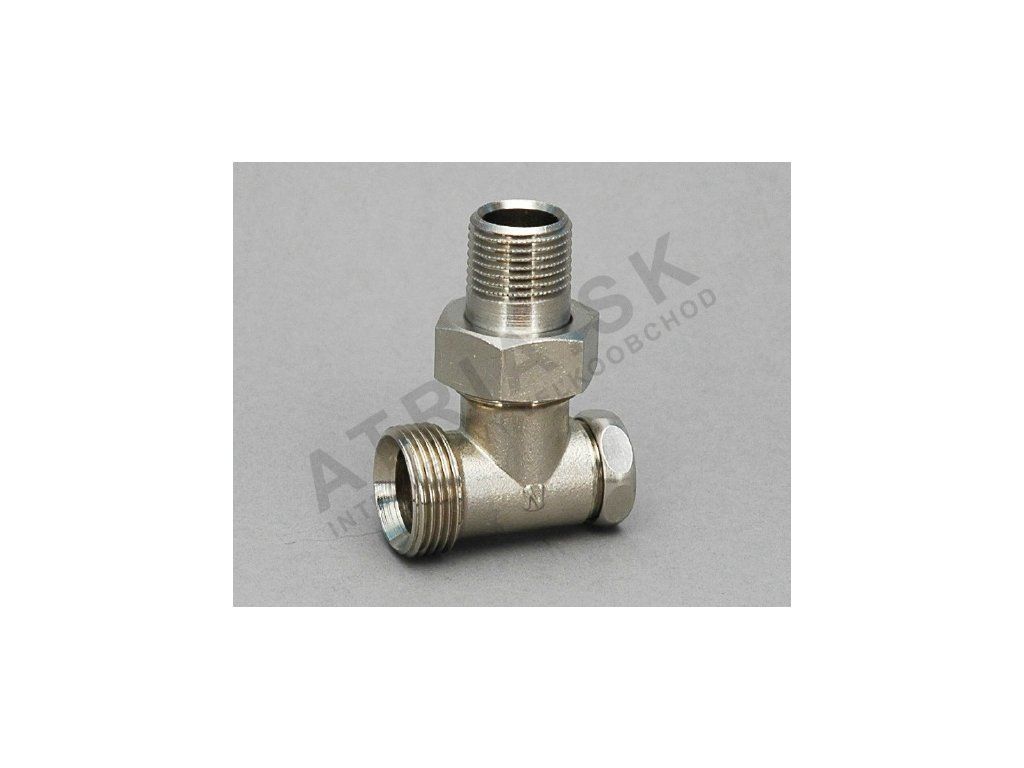

Radiator Fitting, Angled EK x 1/2"
Code: 500053/6006Product detailed description
Radiator Fitting EK, Lockshield
- design: angled
- size: EK x 1/2"
The fitting is used to connect a radiator to the pipework. Different types of pipe can be connected to the fitting. In the HEPWORTH system you need to connect polybutylene pipe with a diameter of 15mm designated HXX25/15, or HXX50/15. You can also connect "plastic-aluminium", PexAlPex pipe with a diameter of 16mm PexAlPex 162 pipe to the fitting.
If you are connecting HEPWORTH, use PB pipe with a diameter of 15mm, the pipe intended for heating. You connect this pipe using the RCS15 compression fitting. You then use the same compression fitting to connect to manifolds for radiator heating. If you want to connect HEPWORTH polybutylene pipe with a diameter of 16mm, use UHP200/16 pipe and the 500684H compression fitting. You use the same compression fitting to connect 16mm plastic-aluminium pipe. To connect 20x2mm pipes use the RCS20 compression fitting
Note: 16 x 2mm pipe with an oxygen barrier, UHP200/16, is used only for underfloor heating. The connection options in this case are for information only. For distributing the heating medium to radiators, use 15mm connecting pipe with an oxygen barrier of type HXX25/15 or HXX50/15.
 |
The most important facts about the HEPWORTH system that should interest you when installing it yourself. | ||
 |
Fully demountable system. | ||
| This means you can assemble the system, later disassemble it, and reassemble it again. This is useful when you are not entirely sure about the heating installation. | |||
|
Installation without any tools. | ||
|
One of the system's biggest advantages is tool-free installation. This means the pipe is simply pushed into the fitting and the internal jaw system fixes it in place. To disassemble, we simply unscrew the fitting, slide the jaws off the pipe, then reassemble the fitting, screw it back together, and it is ready for use again. |
|||
|
Universal use for all types of heating. | ||
| All fittings, tees, elbows and pipes are made of polybutylene, which means you can use it for radiator heating installation, underfloor heating, or domestic hot water (DHW) distribution. All diameters are backward compatible. | |||
|
Pipe made of polybutylene. | ||
| Polybutylene - the oldest and, so far, the best-proven material for heating and water distribution. | |||
|
Pipes with an oxygen barrier | ||
| All pipes are made with an EVOH oxygen barrier, which prevents oxygen molecules from penetrating the heating system. After a few years, oxygen causes boiler corrosion and degrades the heating system. The oxygen barrier prevents this problem. | |||
|
Polybutylene is one of the most hygienic materials | ||
| From a hygiene standpoint, polybutylene achieves the best results. |
Additional parameters
| Category: | radiator valves |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.1 kg |
