Round Water Meter Shaft PP 1300x1000 Plastic Self-Supporting

Product detailed description

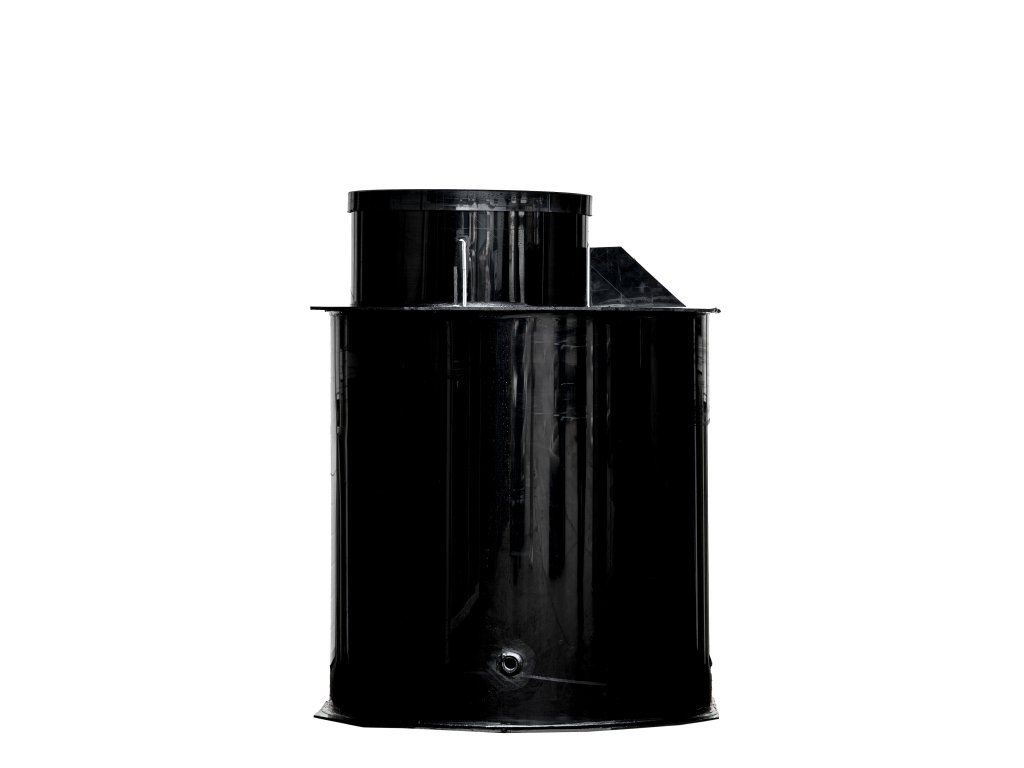

This water meter shaft is made of polypropylene panels 6 and 6 mm thick, joined by welding. It is used for placing a water meter at the point where an object is connected to the water supply. The height of the water meter shaft is 1300mm and the diameter of the shaft body is 1000mm Installing the water meter shaft: The shaft is sufficiently reinforced, so in cases where there is no groundwater and the shaft will not be driven over or located near a road, it is enough to place the water meter shaft on a concrete base and backfill it evenly with sand or sifted soil. Although this shaft is watertight, in the event of groundwater, a drive-over installation, or if the shaft is near a road, it is necessary to encase the shaft in concrete and ensure that groundwater does not penetrate to the shaft walls. We do not recommend using an incompletely backfilled water meter shaft, as it could be damaged in winter. This water meter shaft must not be handled at temperatures below -3 °C. The water meter shaft includes: steps inside the shaft to make it easier to access the water meter installation two watertight shaft grommets for connecting the pipes a walkable cover (intended for foot traffic only) The water meter is not included in the delivery of the water meter shaft. Technical data: Installation depth: 120 cm Inlet connection size: DN 32 Outlet connection size: DN 32 Possible number of water meter connections: max 3 pcs
