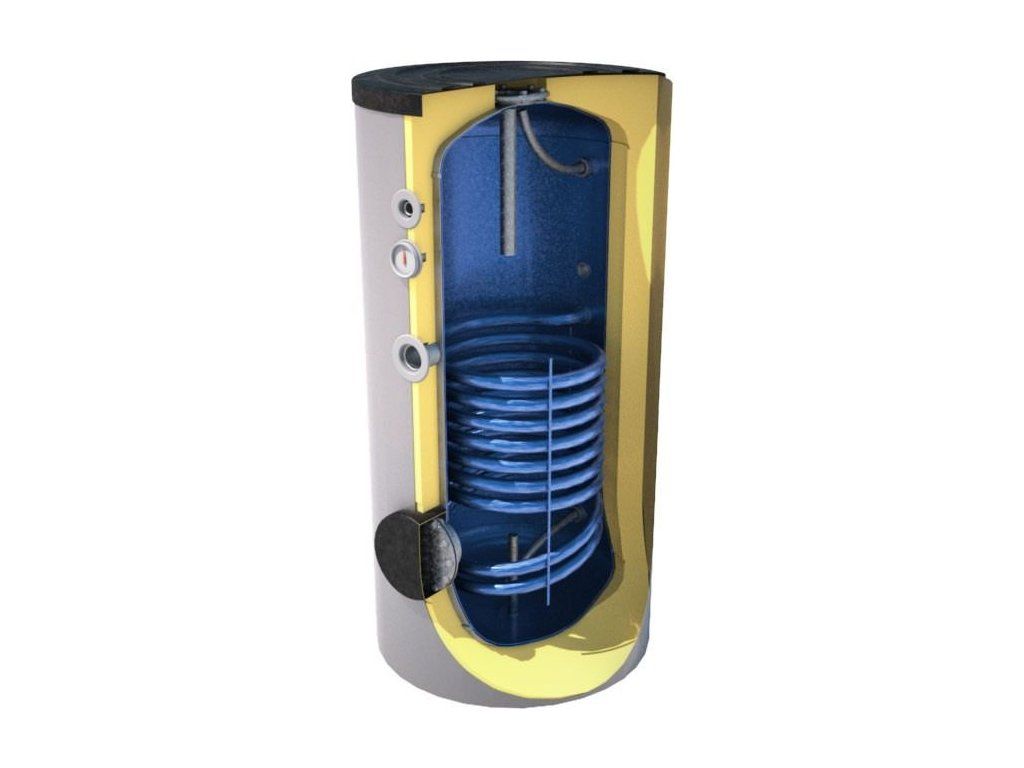

Solar Tank QUADROFLEX QFS 1 200
Code: 306619Product detailed description
The QFS 1 solar tanks are monovalent (with one heating coil), i.e. only one external heat source can be connected, i.e. only a solar system. These versions allow the additional installation of up to two electric heating elements depending on output.- Enamelled steel tank
- Highly efficient CFC-free polyurethane insulation
- Anode protection against corrosion
- Cleaning opening up to 110 mm in diameter located in the lower part of the tank
- Option to connect to circulation
- Option to install up to two electric heating elements with a total output of 12 kW
- Max. working temperature 95°C
- Max. operating pressure 0.8 MPa
- Max. exchanger operating pressure 6 bar
- Simple installation, operation and maintenance
Additional parameters
| Category: | Solar Tanks |
|---|---|
| Weight: | 65 kg |
| Actual volume: | 200 L |
| Top heat exchanger volume: | 5.8 L |
| Top heat exchanger surface area: | 0.96 m² |
| Top heat exchanger output: | 40 kW |
| Continuous DHW flow at dT 35°C (60-80°C) S1: | 955 L/h |
| ERP energy class: | B |
| Height: | 1200 mm |
| Diameter: | 600 mm |
| Warranty: | 2 years |
| Net weight: | 65 kg |
