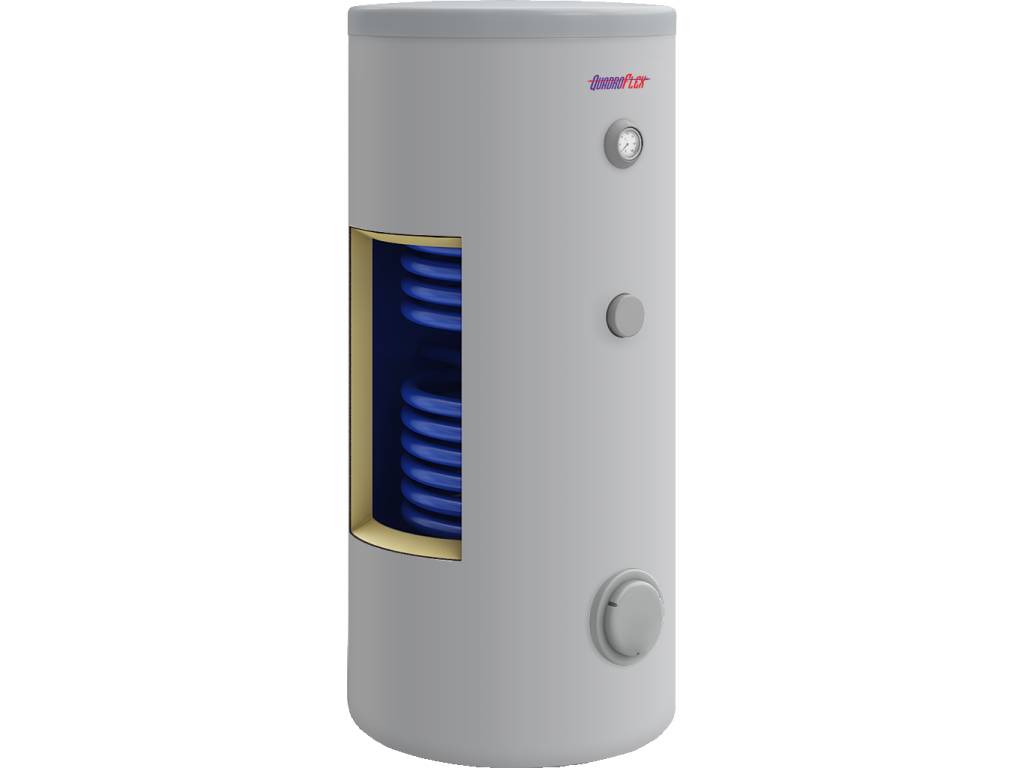

Solar Tank QUADROFLEX QFS 2 200P
Code: 5SK 26 - 20900Product detailed description
The QFS 2P tanks with two high-output heat exchangers can be connected to two heat sources at the same time. Thanks to their large exchange surface, the exchangers can also be connected to heat pumps if interconnected.- Enamelled steel tank
- Large exchanger surface area
- Exchanger working pressure up to 1.6 MPa
- Option to connect an electric heating element
- Max. tank operating pressure up to 1 MPa
Additional parameters
| Category: | Solar Tanks |
|---|---|
| Weight: | 88 kg |
| EAN: | 590122460331 |
| Max. operating temperature: | 95 C |
| Max. allowed tank pressure: | 1 bar |
| Lower heat exchanger output: | 24 kW |
| Lower heat exchanger surface area: | 1.00 m2 |
| Lower heat exchanger volume: | 7 l |
| Max. heat exchanger pressure: | 1.6 bar |
| Actual volume: | 197 L |
| Upper heat exchanger volume: | 4.9 L |
| Upper heat exchanger surface area: | 0.7 m² |
| Upper heat exchanger output: | 17 kW |
| ERP energy class: | B |
| Height: | 1140 mm |
| Diameter: | 670 mm |
| Warranty: | 2 years |
| Net weight: | 88 kg |
