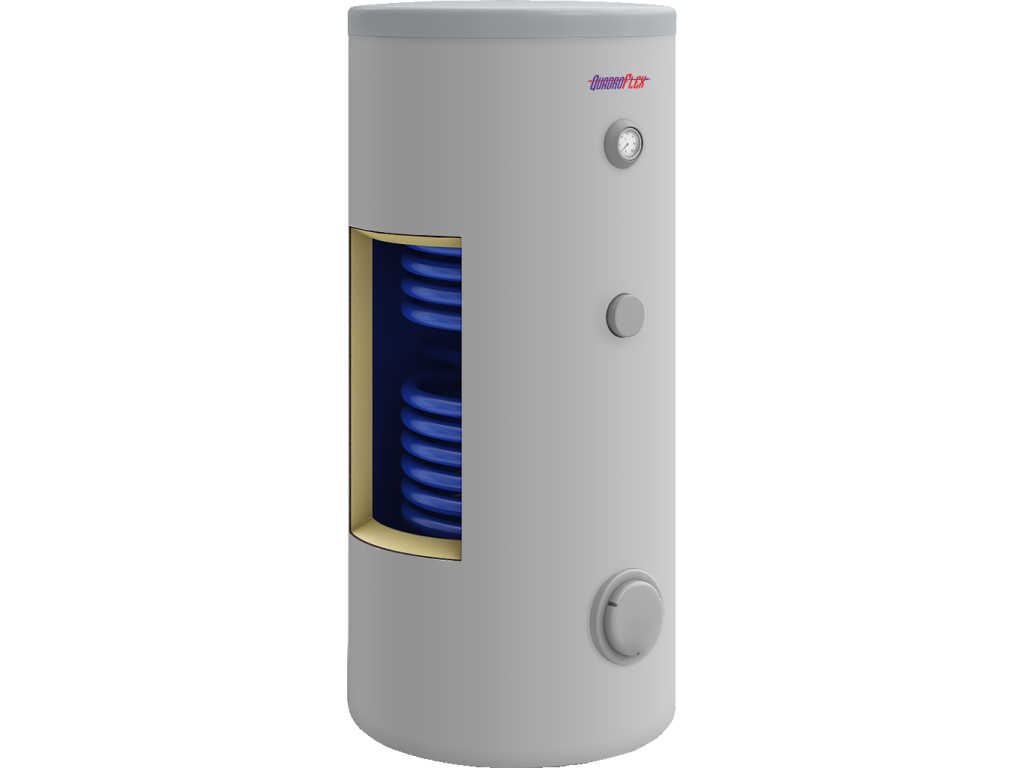

Solar Tank QUADROFLEX QFS 2 700P
Code: 5SK 26 - 709600Product detailed description
The QFS 2P tanks with two high-output heat exchangers can be connected to two heat sources at the same time. Thanks to their large exchange surface, the exchangers can also be connected to heat pumps if interconnected.- Enamelled steel tank
- Exchanger working pressure up to 1.6 MPa
- Option to connect an electric heating element
- Max. tank operating pressure up to 1 MPa
- Removable Neodul insulation
- Tank diameter without insulation 700 mm
Additional parameters
| Category: | Solar Tanks |
|---|---|
| Weight: | 267 kg |
| EAN: | 590122459330 |
| Max. operating temperature: | 95 C |
| Max. allowed tank pressure: | 1 bar |
| Lower heat exchanger output: | 57.6 kW |
| Lower heat exchanger area: | 2.4 m2 |
| Lower heat exchanger volume: | 16.8 l |
| Max. heat exchanger pressure: | 1.6 bar |
| Actual volume: | 683 L |
| Upper heat exchanger volume: | 8.4 L |
| Upper heat exchanger area: | 1.2 m² |
| Upper heat exchanger output: | 28.8 kW |
| ERP energy class: | C |
| Height: | 2080 mm |
| Diameter: | 860 mm |
| Warranty: | 2 years |
| Net weight: | 267 kg |
