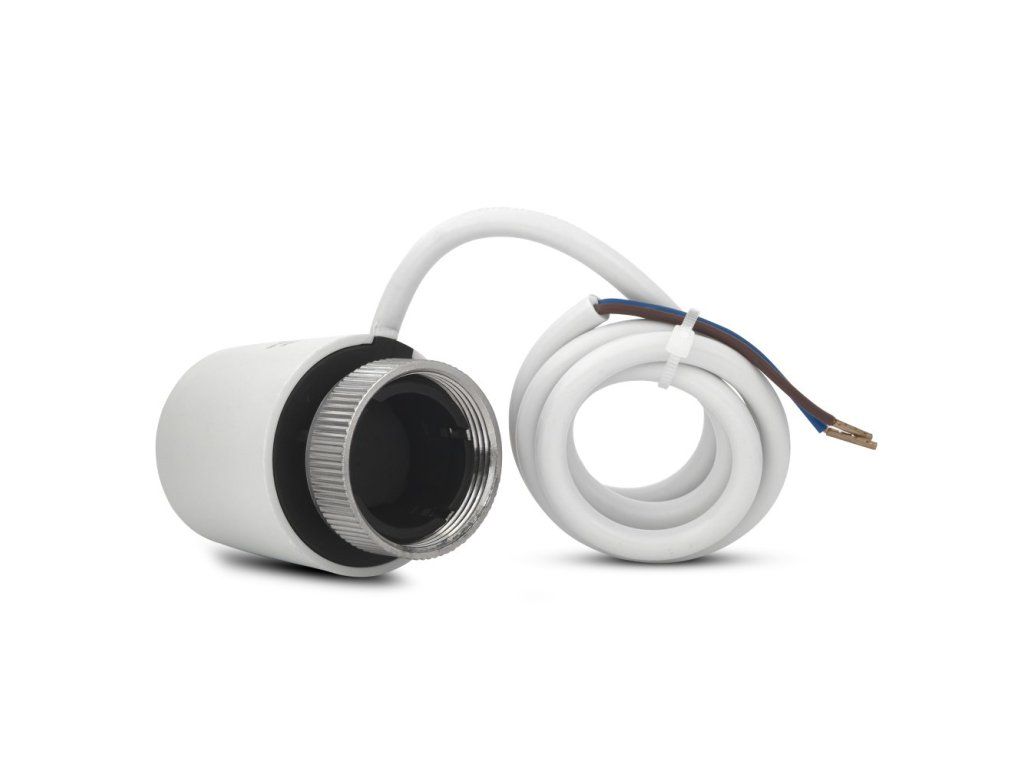

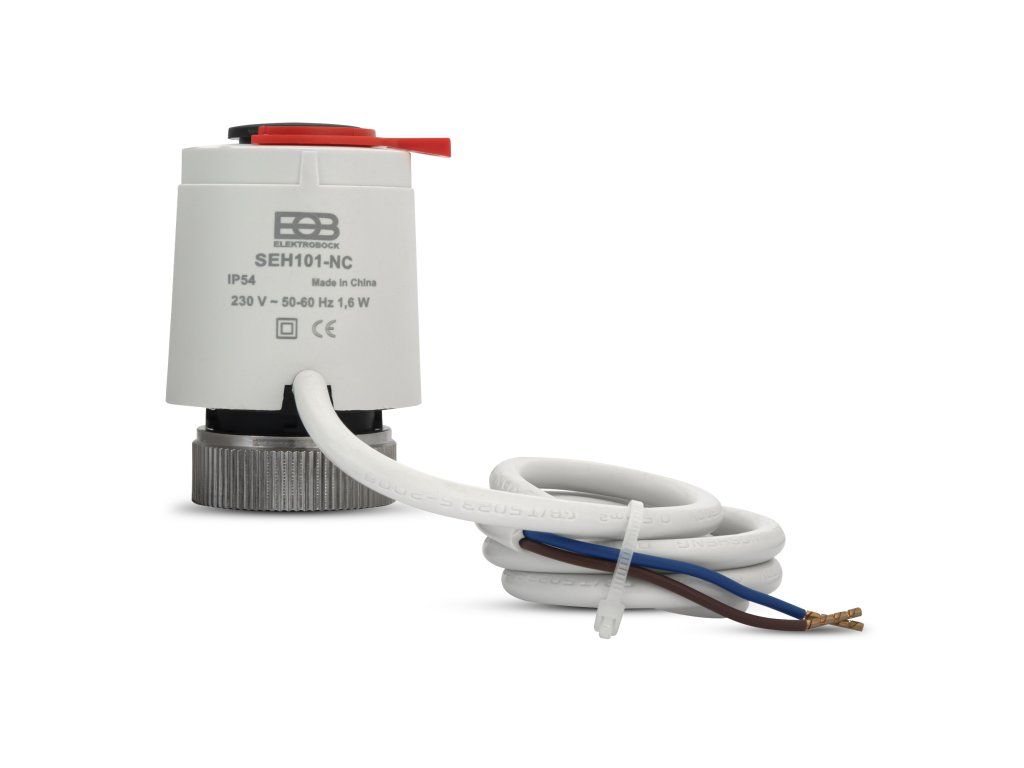

Thermoelectric actuator SEH101-NC
Code: EL_SEH101-NCProduct detailed description
Features of SEH101-NC
Suitable as a replacement for manual heads on manifolds for individual underfloor heating circuits. These actuators can then be centrally controlled by the PT41 system, or wirelessly by the PocketHome ® system (PH-BP1-P9 and PH-BP1-V).
The SEH101-NC is designed for radiator and zone valves. It can be used with 2-position valves for silent regulation of hot/cold water flow in systems with radiators, underfloor heating or an air conditioning unit.
The SEH101-NC is a normally closed version - the valve remains closed when there is no power (NC).
Advantages of SEH101-NC:
- attached cable for easier installation
- waterproof housing
- compact design allows installation in limited space
- installation without the need for special tools
- low power consumption < 1.6 W
- can be controlled by the controller using a PWM signal or ON/OFF
- silent operation
- open status indication
- long service life
Additional parameters
| Category: | Accessories |
|---|---|
| EAN: | 8595689100742 |
