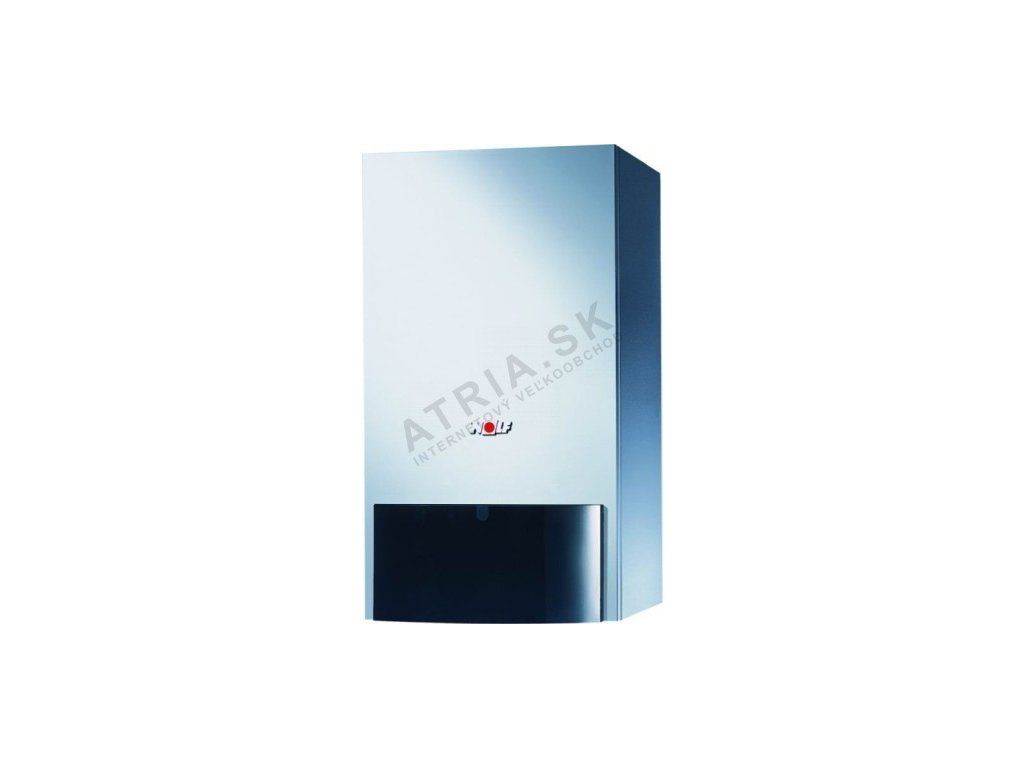

Wolf CGB-24, 3-stage pump
Code: 8611401Z12Product detailed description
Wall-mounted condensing boiler WOLF CGB-24 with a built-in stainless steel plate heat exchanger for instantaneous heating of drinking water.
- wall-mounted gas condensing boiler with minimal space requirements
- ideal for economical heating and efficient water heating
- top-class condensing technology ensures high savings (maximally efficient during condensation - efficiency up to 110%), a modulating burner achieving extremely low levels of combustion pollutants
- the option of instantaneous DHW heating via a stainless steel plate heat exchanger
- variants with a modulated output from 3.2 to 50 kW
- a clean, balanced design that adapts to any space
Wolf CGB-24 wall-mounted gas condensing boiler is designed for low-temperature heating systems and drinking water heating, with a flow temperature of up to 90 °C and a permitted operating pressure of 0.3 MPa. Modulating burner with extremely low pollutant levels and low noise. A high-performance heat exchanger made of a silicon-aluminium alloy with a unique design allowing quick and easy maintenance after tilting the exchanger out of the boiler under full water pressure in the system, without the need to drain and refill water or vent the system. The heat exchanger is also available with an electrochemically coated surface for higher corrosion resistance, better condensate drainage and self-cleaning of the exchanger surface, resulting in higher operating efficiency of the boiler as well as easier and faster cleaning of the exchanger during boiler maintenance. 3-stage boiler pump to achieve maximum efficiency during condensation (standard utilisation rate of up to 110%).
General parameters:
| TYPE | CGB-11 | CGB-20 | CGB-K-20 | CGB-24 | CGB-K-24 | CGB-35 | CGB-50 | |
| Rated thermal output at 80/60 °C flow/return | kW | 10,0/14,6 | 19,0/22,9 | 23,1/27,6 | 32,0 | 46,0 | ||
| Rated thermal output at 50/30 °C flow/return | kW | 10,9 | 20,5 | 24,8 | 34,9 | 49,0 | ||
| Rated thermal input | kW | 10,3/151 | 19,5 | 19,5 (23,5) | 23,8/28,5 | 33,0 | 47,0 | |
| Min. thermal output (modulated) at 80/60 °C flow/return | kW | 3,2 | 5,6 | 7,1 | 8 | 11 | ||
| Min. thermal output (modulated) at 50/30 °C flow/return | kW | 3,6 | 6,1 | 7,8 | 9 | 12,2 | ||
| Minimum thermal input (modulated) | kW | 3,3 | 5,7 | 7,3 | 8,5 | 11,7 | ||
| Dimensions | ||||||||
| Height x width x depth | mm | 855 x 440 x 393 | ||||||
| Flow connection, external thread | mm | 20 (G 3/4“) | G 1 1/4“ | |||||
| Return connection, internal thread | mm | 20 (G 3/4“) | G 1 1/4“ | |||||
| Connection for drinking water heating | - | G 3/4“ | 1“ | |||||
| Cold water connection | - | G 3/4“ | 1“ | |||||
| Gas connection | R 1/2“ | 3/4“ | ||||||
| Combustion air supply / flue gas exhaust connection | mm | 95,5/63 | 125/80 | |||||
| Gas consumption | ||||||||
| Natural gas H (Hi=9.5 kWh/m3 = 34.2 MJ/m3) | m3/h | 1,08 (1,58) | 2,05 (2,47) | 2,50/3,00 | 3,47 | 4,94 | ||
| Gas pressure at the connection | ||||||||
| Natural gas | mbar | 20 | ||||||
| Heating | ||||||||
| Flow temperature setting (factory-set) | °C | 75 | ||||||
| Flow temperature up to approx. | °C | 90 | ||||||
| Max. total pressure of heated water | bar | 3,0 | ||||||
| Volume of heating water in the heat exchanger | l | 1,3 | 2,5 | |||||
| Flow rate for water heating | l/min | - | 2,0-6,5 | - | 2,0-6,5 | - | ||
| Special flow rate "D" at delta T = 30K | l/min | - | 9,4 | - | 9,4 | - | ||
| Min. flow pressure / min. flow pressure per EN625b | bar | - | 0,2/1,0 | - | 0,2/1,0 | - | ||
| Max. total pressure | bar | - | 10 | - | 10 | - | ||
| Temperature range for water heating (adjustable) | °C | - | 40-60 | 40-60 | 15-65 | |||
| Corrosion protection of the water heater exchanger | - | stainless steel | - | stainless steel | - | |||
| Total volume of the expansion vessel | l | 12 | ||||||
| Gas pressure in the expansion vessel | bar | 0,75 | - | |||||
| Available fan pressure | Pa | 90 | 115 | 145 | ||||
| Electrical connection | ||||||||
| Protection rating | ||||||||
Additional parameters
| Category: | Wolf |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one: | https://www.atria.sk/protherm-gepard-condens-12-mko/ |
| The item has been sold out… | |
