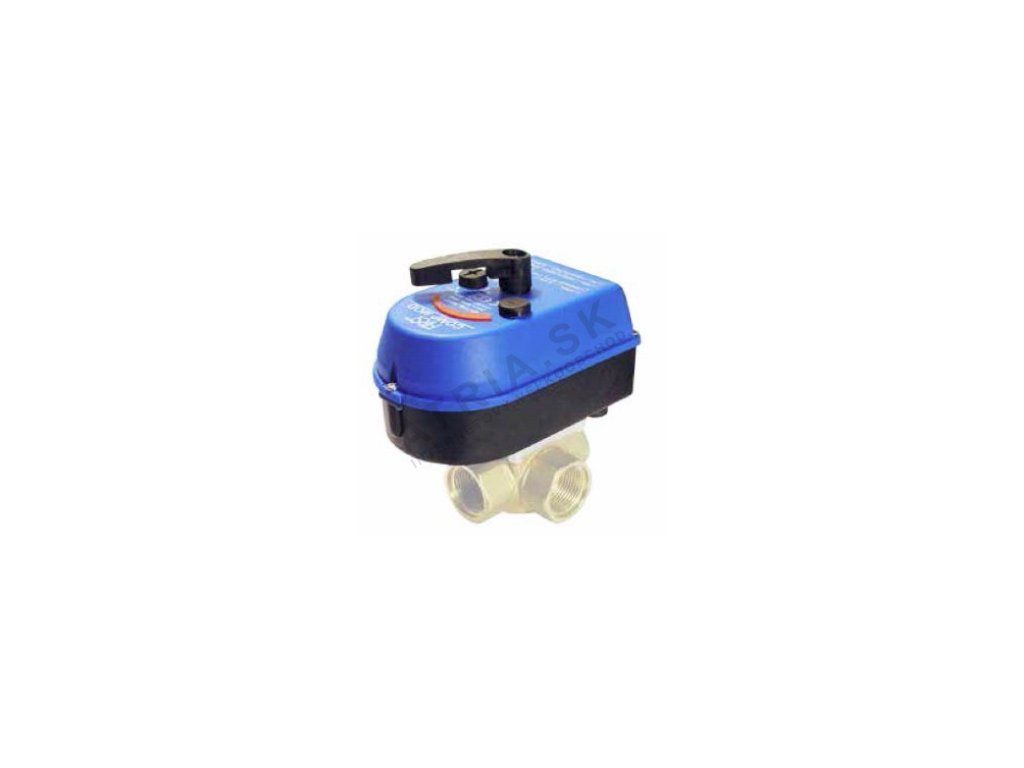

ACTUATOR MV 120, 0-10V / 24V
Code: F12118Related products
Product detailed description
ACTUATOR MV 120, 0-10V / 24V
- with modulation from 0...10V
- for 3-4 way mixing valves of the ROTOMIX type
Technical data:
- voltage: 24V 50Hz,
- rotation time: 105s/90°,
- control: manual/automatic,
- heating medium temperature: +2°C to +110°C,
- ambient temperature: +55°C,
- max. torque: 8Nm.
Frequently Asked Questions
- How do I check compatibility with my valve/system? Compare the connection type (e.g. M30x1,5 thread) and supply voltage with the technical parameters of your valve or controller.
- Must installation and wiring be done by a professional? Mechanical mounting onto the valve can be handled by a skilled DIYer, but we recommend having the electrical connection to the controller checked by an electrician or heating technician.
Additional parameters
| Category: | Actuators and valves |
|---|---|
| Warranty: | 2 years |
| Weight: | 5 kg |
| Control options: | manual/automatic, |
| Heating Medium Temperature: | +2°C to +110°C, |
| Max. rotational torque: | 8Nm. |
| Rotation time: | 105s/90°, |
| Teplota okolia: | +55°C, |
| Voltages: | 24V 50Hz, |
| With Modulation From: | 0...10V |
