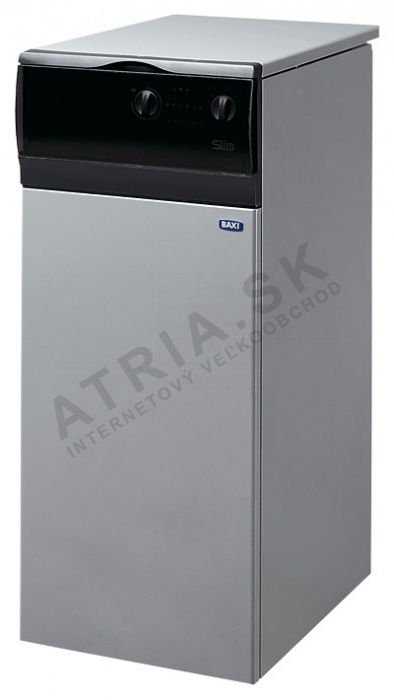

Baxi Slim 1.490 iN

Product detailed description

 Baxi Slim 1.490 iN: 24.5 – 48.7 kW, flue gas discharge into the chimney, includes:

• 1 pc boiler,
• 1 pc draught diverter KHW714068810

Extensive experience and advanced technology have enabled BAXI to develop the SLIM range of cast-iron floor-standing boilers.

The advantage is a wide selection within the output range while maintaining aboiler width of just 35 cm. You can choose a boiler version with flue gas discharge into the chimney up to 62 kW, or with forced discharge (turbo).

• smooth output modulation
• the boiler width always stays the same - only its depth and height increase with output
• models with flue gas discharge into the chimney up to 62 kW output
• turbo versions with a sealed combustion chamber up to 30 kW
• SIEMENS electronics with weather-compensated control, electronic ignition

Characteristics:

• electronic flame modulation
• electronic ignition
• patented AFR air control system for efficiency optimisation (forced flue gas discharge)
• connection to a DHW cylinder (heating-only models): DHW temperature can be controlled directly on the boiler's control panel
• boiler body made of cast-iron sections
• stainless-steel burners
• automatic pump overrun
• gas valve with smooth modulation of the heating and DHW system
• gradual automatic ignition
• anti-frost function
• DHW - option to connect a programmable timer (DHW production)
• heating - option to connect a programmable timer
• option to connect an outdoor sensor
• option to connect a Baxi by Siemens outdoor sensor
• radio interference suppression system
• coaxial/split flue gas discharge/air intake (forced flue gas discharge)

General parameters:

		Heating + DHW
		into the chimney
Name		SLIM 1.620 iN	SLIM 1.490 iN	SLIM 1.400 iN	SLIM 1.300 iN	SLIM 1.230 iN
Suitable for cascade
Rated heat output	(kW)	62,2	48,7	40	29,7	22,1
Reduced heat output	(kW)	31,6	24,5	20,6	14,9	11,8
Consumption at rated output	(kWh)	69	54,1	44,4	33	24,5
Consumption at reduced output	(kWh)	35	27,5	23	17	13,5
Flue diameter (into chimney)	(mm)	160	160	160	140	130
Electric three-way valve		No	No	No	No	No
Electrical voltage / frequency	(V/Hz)	230 / 50	230 / 50	230 / 50	230 / 50	230 / 50
Rated electrical input	(W)	15	15	15	15	15
Weight	(kg)	224	174	150	126	103
Dimensions
Height	(mm)	850	850	850	850	850
Width	(mm)	350	350	350	350	350
Depth	(mm)	875	715	635	680	600
