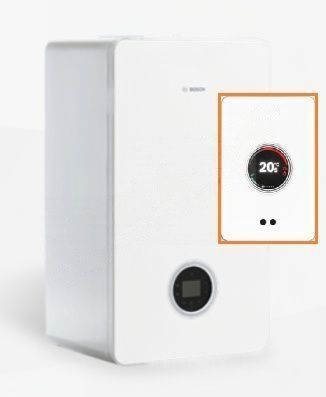

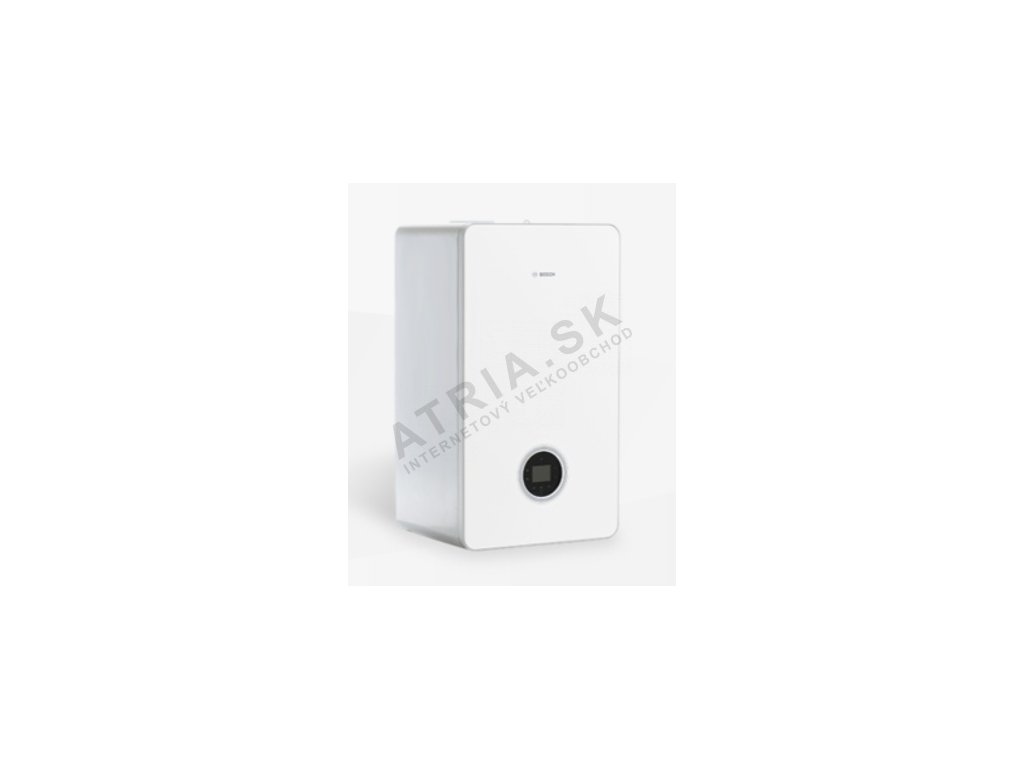

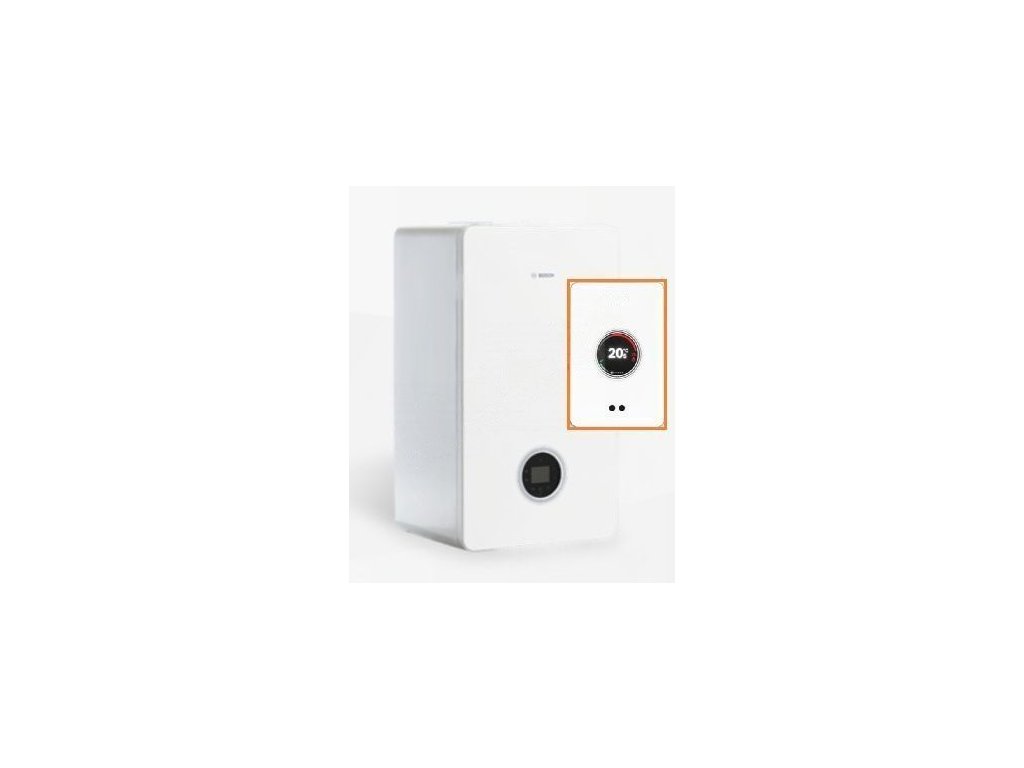

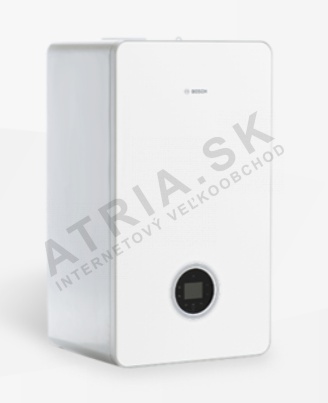

Bosch Condens GC8700iW 30/35 C + CT 200

Product detailed description

Consistently efficient

Saving energy can be this simple: the boiler automatically adjusts its output in the range of 10 to 100% to match your household's current heat demand. Thanks to this, it works efficiently even when you don't need its full output.



High quality

The high quality of the Bosch brand is represented by the boiler's flawless workmanship and technical equipment, which includes both long-proven components and new modern features.



Easy operation

Operating the boiler is very intuitive. All parameters can be set using the colour touch display. Combined with the intelligent CT200 controller, you can operate the Condens 8700i W boiler via the EasyControl app on your smartphone and tablet.



Quick and easy maintenance

The Condens 8700i W guarantees savings on all installation work. Access to the technical components is quick and easy thanks to the boiler's removable side casing. The boiler's front cover can be removed by loosening a single screw.



Advantages of the boiler

▶ high efficiency thanks to a wide modulation range of 1:10

▶ fascinating design in white and black finishes with control via a colour touch display

▶ simple wireless connection with the intelligent CT200 controller via the Control Key module /the controller and module are not included with the boiler, available to order separately/

▶ instantaneous (flow-through) hot water preparation

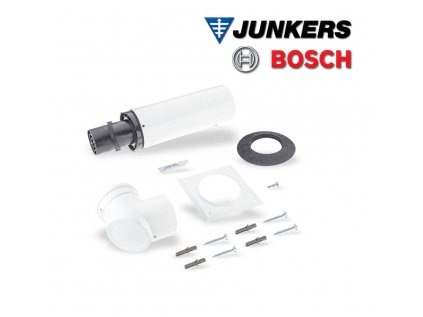

▶ the flue gas connection adapter is included with the boiler



Dimensions and connections









1 - Horizontal flue accessories

2 - Cover

3 - Distance of the boiler's top edge from the centre line of the horizontal flue pipe

B - Distance of the boiler's top edge from the ceiling

K - Opening diameter

S - Wall thickness



















































Technical data

Front panel colour: white

Max. rated heat output (50/30° C): 31,1 kW

Min. rated heat output (50/30° C): 5,5 kW

Maximum hot water output: 34,4 kW

Sound power level according to ErP15: 53 dB (A)

Seasonal space heating

energy efficiency according to ErP15: 94 %

Energy efficiency class: A

Water heating energy efficiency class: A

Declared load profile: XL

Equipment

Expansion vessel: 10,0 l

High-efficiency pump EEI ≤ 0.23: integrated

Diverter valve: integrated

Dimensions and weight

Height: 780 mm

Width: 440 mm

Depth: 365 mm

Net weight: 50 kg

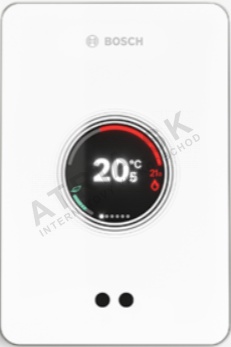

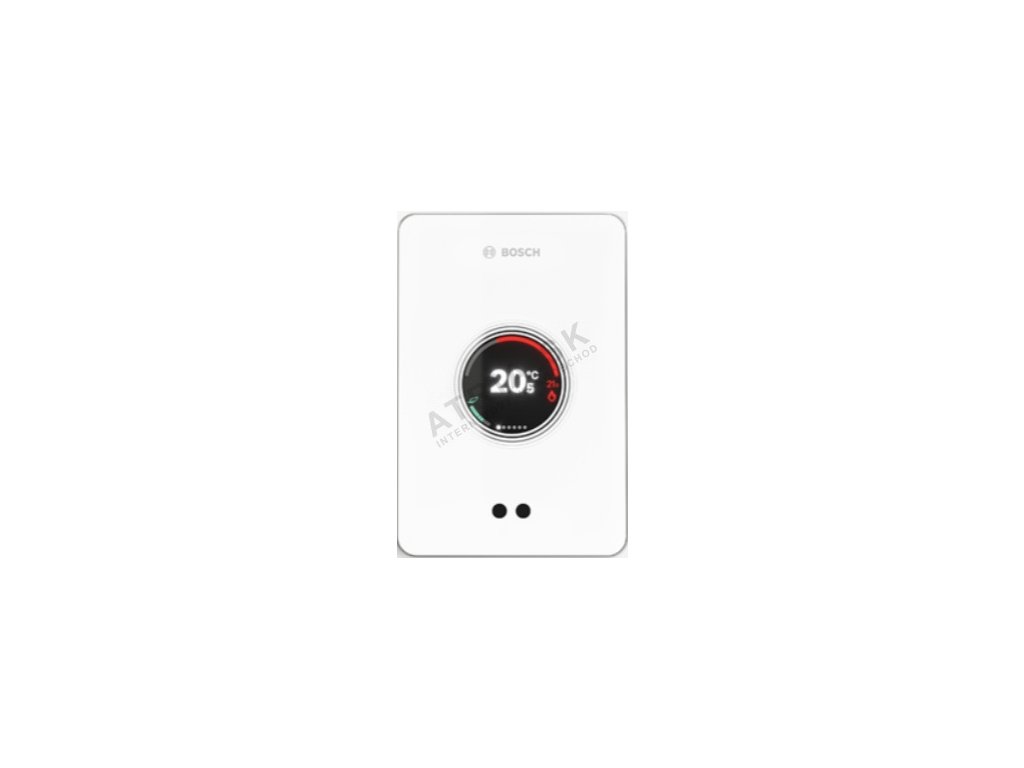

BOSCH EASYCONTROL CT 200 - intelligent touch controller

• Intelligent controller for 1 heating circuit and domestic hot water preparation
• Important functions can be set directly on the touch display, complete settings via the EasyControl app (for iOS, Android)
• Individual temperature setting in each room using smart thermostatic radiator heads
• Presence detection via GPS
• The controller cannot be combined with other controllers, e.g. CW 400
• farba: white



The controller EasyControl is a revolution. This intelligent controller with an app lets you easily control the heating in every room, providing maximum comfort whenever and wherever you want.



Presence detection

EasyControl registers when you are at home and automatically adapts the heating to your daily routine, without you having to do anything. This way, the heating is only on when you really need it. Saving energy can be this simple!



Individual room control

21 °C in the living room, 24 °C in the bathroom, and 18 °C in the bedroom - with the EasyControl controller you can manage them effortlessly. Simply enter the desired temperature for each room and that's it. The only additional technology required is the Bosch smart radiator thermostat (Smart TRV).



Individual room control for underfloor heating is not yet supported.



Easily control water heating

EasyControl saves you money not only on heating, but also on hot water preparation.

It offers three options:

• On: hot water is available at any time
• Automatic: water is heated according to a time programme
• Off: the hot water function is switched off



Simply modulates

EasyControl supports burner modulation - ensuring the highest possible efficiency and extending the service life of the heating unit.



Easy installation

The EasyControl controller does not need to be mounted on the wall. Simply use the desktop stand. You can place the intelligent EasyControl controller exactly where you want. All you have to do is plug the desktop stand into an outlet and insert the appropriate key into the corresponding slot on the heating appliance. Now the EasyControl controller can manage your heating.



Simply exceptional

A slim, attractive design with a glass touchscreen surface available in white and black makes the EasyControl controller a stylish accessory for any home.



The EasyControl controller will convince you not only with its attractive design, but also with its ability to save energy and heating costs. Having won the Safety and Energy Efficiency 2019 award, our product confirms its contribution to a sustainable environment.



Easy operation

The EasyControl app, with which you can operate the controller effortlessly, is self-explanatory.

You will be able to find your way around and recognise the functions right away: operating your

heating has never been this easy. And it doesn't matter whether you are at home or on the road.



Backlight

The EasyControl controller communicates with you not only through the app, but also through its backlight. As soon as you send a temperature increase command to the heating system, it lights up orange for one second, or blue if you are lowering the temperature. If you leave home, the backlight turns green, signalling that the heating has automatically switched to "away" mode. Red backlight signals a fault in the heating system. If everything is working as it should, the backlight remains off.

Frequently Asked Questions

• How exactly do I choose the output of a BOSCH condensing boiler? The starting point is the calculated heat loss of the heated building (most reliably taken from the project documentation or an energy certificate). If you don't have a project, you can roughly estimate about 60-100 W per m² of floor area for a commonly insulated house built after 2000, or 100-150 W/m² for an older, uninsulated house - the exact figure varies depending on the number of floors, ceiling height, the number and quality of windows, and the building's orientation. A boiler oversized for its output switches on and off more often (so-called cycling), which shortens its service life and reduces efficiency; an undersized boiler, on the other hand, cannot heat the house sufficiently on frosty days.
• Why is a condensing boiler more economical than a conventional one? A condensing boiler additionally uses the heat hidden in the water vapour produced when gas is burned - in a conventional boiler this heat escapes unused through the flue, while in a condensing unit it is cooled below the so-called dew point, the vapour condenses, and the released heat is returned to the heating circuit. Thanks to this, condensing boilers achieve an efficiency of approximately 105-110% relative to the calorific value of the gas, compared to the usual 85-92% for conventional boilers.
• What type of flue does this boiler need? Most modern condensing boilers are so-called “turbo” units (with a sealed combustion chamber) and require a concentric (coaxial) or separate flue gas outlet and combustion air intake routed through an outer wall or the roof - so a functioning chimney is not needed. The exact type and maximum length of the flue (depending on the 60/100 or 80/125 mm diameter) can be found in the technical documentation for the specific model, or you can consult our customer service.
• What does the ErP energy class stated for the boiler mean? This is a mandatory efficiency label for heating appliances under the EU ErP (Ecodesign) directive, similar to the energy labels used for refrigerators. Condensing boilers commonly achieve class A, or even higher in combination with room controls (e.g. A+ when using weather-compensated control and a room thermostat).
• Can I install and connect this boiler myself? No. Connection to the natural gas supply, the electrical network, and the flue is by law reserved exclusively for a person with the appropriate qualification (usually an authorised service technician for the given brand or a certified gas appliance inspector). After installation, the boiler must be commissioned by the manufacturer's authorised service, which is usually also a condition for the warranty to be valid.
• What about servicing and the warranty? Most manufacturers require a regular annual service inspection by an authorised service provider in order for the warranty to remain valid even after its standard expiry (an extended warranty subject to regular servicing is common especially with the brands Vaillant, Protherm, and Viessmann). The exact warranty terms can be found in the warranty certificate supplied with the boiler.
• What is included in the delivery of this specific product? The exact package contents (the boiler itself, possibly a hot water tank, room controls, and other accessories in the case of a set) are stated in the product name and in its technical parameters above on this page.
