Buderus Logamax plus GB172-24 T50 + Logafix 3/4" magnetic sludge separator

Code: 8730800139
Not rated Rating details
3 367,20 € –15 %
Buderus Logamax plus GB172-24 T50 + Logafix 3/4" magnetic sludge separator
3 367,20 € –15 % 2 847,81 € / pcs Measure price:
Sale ended or currently unavailable
The item has been sold out…

Detailed information

Product detailed description

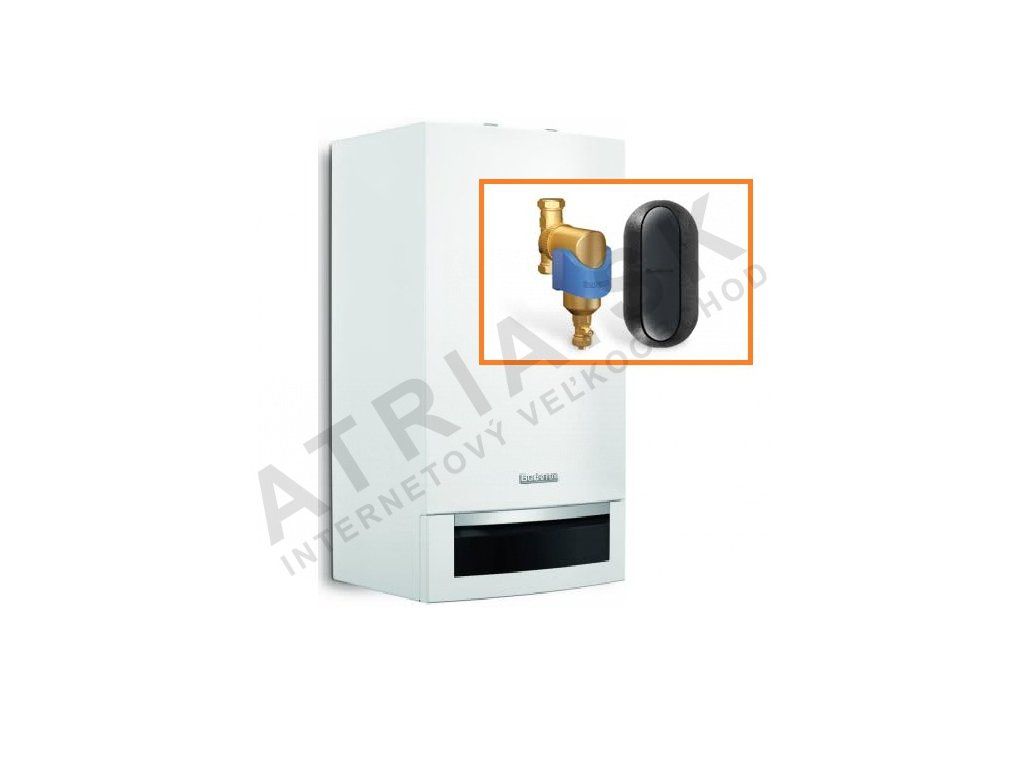

Set Buderus Logamax plus GB172-24 T50
- Logamax plus GB172-24 T50 - gas condensing boiler with built-in DHW cylinder
- Logafix 3/4" - magnetic sludge separator

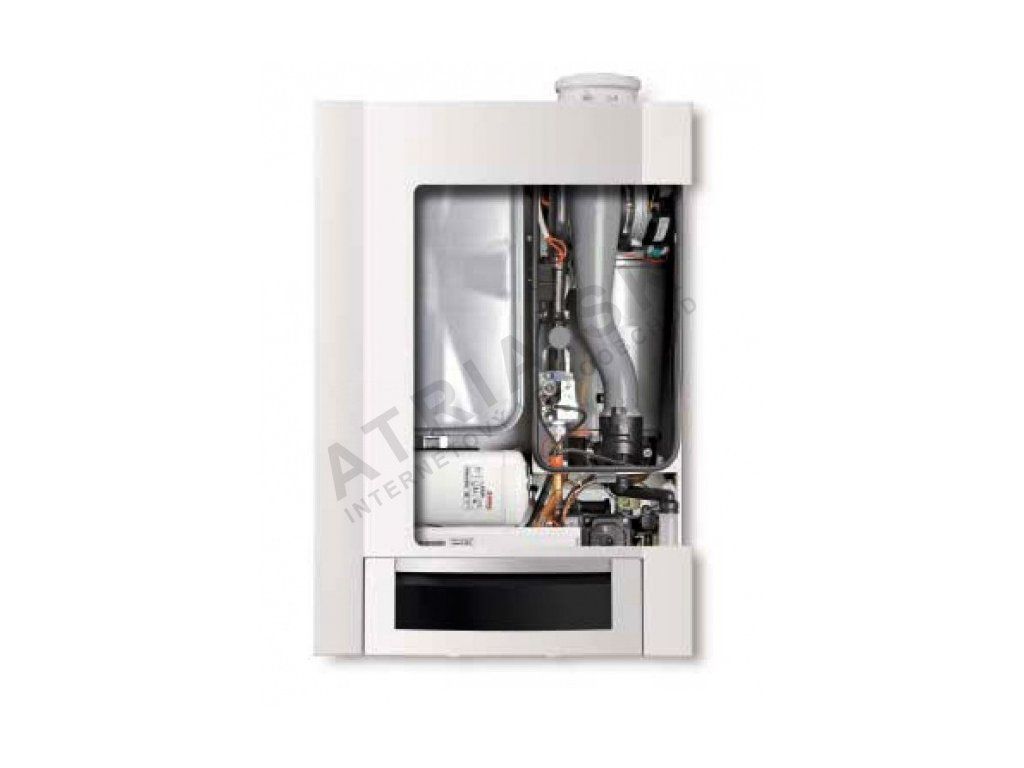

BUDERUS LOGAMAX PLUS GB172-24 T50
- gas condensing boiler with a built-in domestic hot water cylinder
- output: 23 kW

A small economical marvel - big prospects
Anyone thinking about tomorrow naturally wants to save energy. Energy consumption means spending money, after all, and energy prices keep rising. Economical appliances are also a valuable contribution to the environment. Modern condensing technology is the best current answer to these requirements, including for gas heating. Intensive research by Buderus engineers has produced an effective result - the Logamax plus GB172.

Economical and ecological
If you heat efficiently, you always have two reasons to be pleased. Besides your wallet, you also protect the natural foundations of our existence - you effectively help reduce CO2 emissions and improve the environmental balance. With a system from Buderus and advanced condensing technology, it is easier than you might think.

Make the most of everything possible
The Logamax plus GB172 impresses with standard utilisation rates of up to 109%. That is practically the theoretical limit of what is possible at all. However, Buderus thought further still - about electricity consumption. In standby mode, when heating is barely used, electricity consumption is reduced by more than half compared to comparable boilers thanks to intelligent solutions. All that remains for you is to enjoy the pleasant warmth.

Recovering heat from water vapour
A large part of the heat generated during the combustion process is contained in the vapour of the hot flue gases. The principle of condensing technology is to make use of this heat as well and thus achieve higher energy utilisation. Heat is extracted from the vapour by cooling and condensation in the heat exchanger and is then fed back into the heating circuit. The result is a high standard utilisation rate of up to 109%.

Consistent energy saving
Take a look at this energy balance: the Logamax plus GB172 boiler consumes gas or electricity only when it is actually needed. The modulating burner, for example, ensures that the heating output can be adapted from 23 to 100% (in the case of the Logamax plus GB172-14 variant). Even better, the new circulation pump needs an absolute minimum of electricity thanks to intelligent control and technology. One saving advantage adds up to another.

Hot water quickly and in sufficient quantity
When you want hot water, you want it right away, without a long wait. The Logamax plus GB172 combi boiler best fulfils this wish. Thanks to the practical THERMOquick warm-start function, you can turn the bath into a pleasant, relaxing soak even when the water heater has not yet reached its full output. The temperature of the outflowing water is of course precisely and constantly regulated. This prevents disruptive temperature fluctuations, e.g. while showering. There is no doubt that comfort is a major advantage at Buderus. Highly efficient condensing technology with standard utilisation rates of up to 109% saves energy and reduces emissions; the DHW cylinder with a coil heat exchanger, volume 48 l, is fitted with a DUOCLEAN MKT thermal glaze coating; a high-efficiency pump with speed control (energy efficiency class A **); a powerful control system and high operating comfort thanks to the Logamatic EMS controller in combination with the Logamatic RC35 control unit (accessory); low energy consumption in standby mode; proven connection technology for fast assembly and installation; a robust heat exchanger made of an aluminium-silicon alloy, tested millions of times over, with low sensitivity to fouling; easy maintenance thanks to good access to the components.

Advantages:

  • combination of a heating boiler and a domestic hot water cylinder with the smallest space requirement
  • an optimal combination for low-energy family
    houses and single/two-family houses, with a choice of hot water cylinder and boiler output
    for various uses - Logamax plus GB172-14T 120 or Logamax plus GB172-20T 150
  • modern condensing technology with a utilisation rate of up to 109% for economical and ecological heating
  • complete equipment saves installation time and installation costs
  • easy operation and maintenance
  • option to supply a special solar variant Logamax plus GB172-20T 210SR for immediate or later connection of solar collectors
  • high economy
  • low pollutant values
  • space-saving wall mounting
  • easy installation thanks to complete equipment
  • simple, low-cost maintenance
  • quiet operation
Technical parameters:
Rated heating output: 23 kW
Efficiency: 93 %
Weight: 84.65 kg
Dimensions (h/w/d): 880 x 600 x 482 mm


BUDERUS LOGAFIX 3/4" - magnetic sludge separator

A dirt separator with an external magnet for fast, continuous removal of ferromagnetic and non-magnetic dirt particles and sludge from heating or cooling circuits.
  • 3/4" connection
  • horizontal, vertical or diagonal installation thanks to a variable connection
  • made of brass
  • separates sludge down to 5 micrometres without interrupting operation
  • with a removable bottom section for cleaning and inspection

Additional parameters

Category: Buderus, s integrovaným zásobníkom vysoký výkon nad 16 kW Buderus
Warranty: 2 years
Weight: 30 kg
Boiler intended use: with an integrated storage tank
Boiler heating output: high output above 16 kW
Manufacturer: Buderus
