Dražice OKC 100 NTR/HV
Code: 110870601Related products
Product detailed description

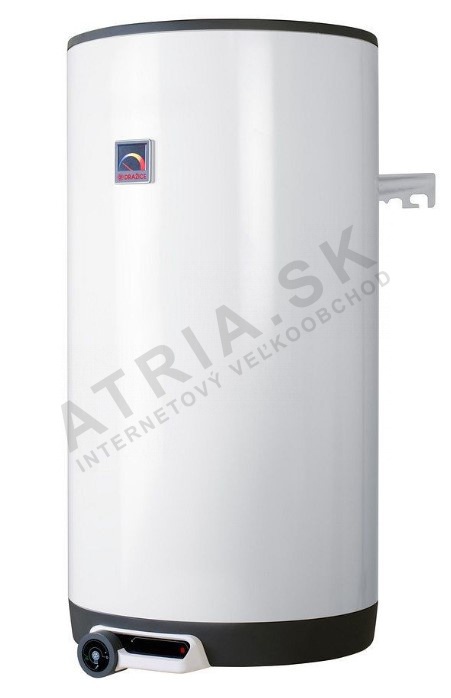

Indirectly heated stationary water heater Dražice OKC 100 NTR/HV for water heating

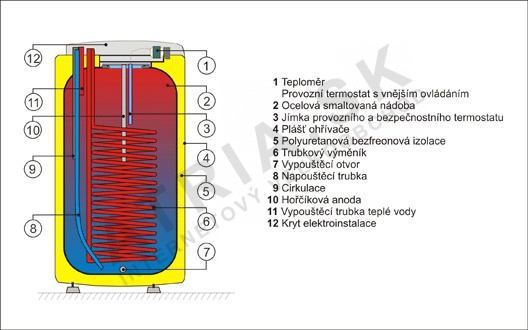

Design of the heaters:
Indirectly heated water heaters with a volume of 100–160 liters with an enamelled tank and a powerful heat exchanger for floor installation under a wall-mounted gas boiler. All outlets, including the heat exchanger outlets, are oriented upwards for easier connection to the wall-mounted gas boiler.
OKC – round heaters, OKH – square heaters
Most common use:
- Preparation of domestic hot water in buildings with a gas boiler
- without side flange
Technical parameters:
<td style="border-top-style: none; border-right-style: none; border-bottom-style: none; border-left-style: none; border-width: initial; border-color: initial; margin-top: 0px; margin-right: 0px; margin-bottom: 0px; margin-left: 0px; padding-top: 0.4em; pa
| Type | OKC 100 NTR/HV | OKC 125 NTR/HV | OKC 160 NTR/HV |
|---|---|---|---|
| Volume [l] | 95 | 120 | 160 |
| Weight [kg] | 56 | 70 | 80 |
| Heat transfer area [m2] | 1,08 | 1,45 | 1,45 |
| Maximum operating pressure of the tank [MPa] | 0,6 | 0,6 | 0,6 |
| Maximum operating pressure of the heat exchanger [MPa] | 1 | 1 | 1 |
| Heater height [mm] | 881 | 1 046 | 1 235 |
| Heater diameter [mm] | 524 | 524 | 524 |
| DHW connection DHW . | JS 3/4" | JS 3/4" | JS 3/4" |
| Heating water connection | JS 3/4" | JS 3/4" | JS 3/4" |
| Maximum DHW temperature. [°C] | 80 | 80 | 80 |
| Recommended DHW temperature. [°C] | 60 | 60 | 60 |
| Connection voltage | 1 P-EN AC 230 V/50 Hz | 1 P-EN AC 230 V/50 Hz | 1 P-EN AC 230 V/50 Hz |
| Rated thermal output at heating water temperature of 80 °C and flow rate of 720 l/h [W] | 24 000 | 32 000 | 32 000 |
| Heating time from 10 °C to 60 °C [min] | 14 | 14 |
Additional parameters
| Category: | indirect-heated stationary square |
|---|---|
| Warranty: | 2 years |
| Weight: | 10 kg |
| The item has been sold out… | |
