Dražice OKC 160 NTR/HV
Code: 110670601Related products
Product detailed description

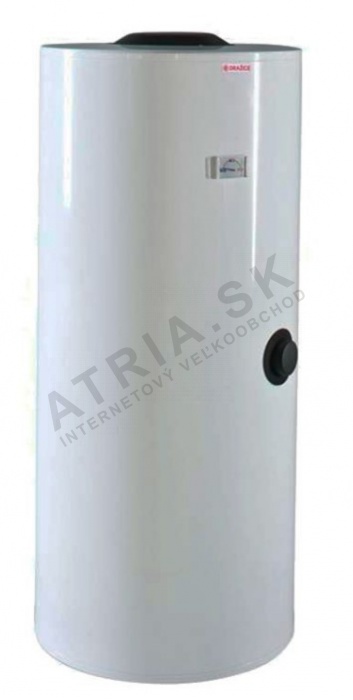

Indirectly heated stationary water heater, boiler Dražice OKC 160 NTR/HV for water heating

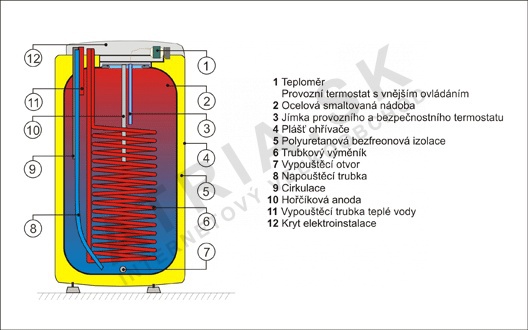

Water heater design:
Indirectly heated water heaters with capacities of 100–160 litres, featuring an enamelled tank and a powerful heat exchanger, designed to be placed on the floor under a wall-mounted gas boiler. All outlets, including the heat exchanger outlets, are oriented upwards for easier connection to the wall-mounted gas boiler.
OKC – round water heaters, OKH – square water heaters
Most common use:
- Domestic hot water preparation in buildings with a gas boiler
- without side flange
Technical parameters:
| Type | OKC 100 NTR/HV | OKC 125 NTR/HV | OKC 160 NTR/HV |
|---|---|---|---|
| Volume [l] | 95 | 120 | 160 |
| Weight [kg] | 56 | 70 | 80 |
| Heat transfer surface [m2] | 1.08 | 1.45 | 1.45 |
| Maximum operating pressure of the tank [MPa] | 0.6 | 0.6 | 0.6 |
| Maximum operating pressure of the heat exchanger [MPa] | 1 | 1 | 1 |
| Water heater height [mm] | 881 | 1 046 | 1 235 |
| Water heater diameter [mm] | 524 | 524 | 524 |
| Connection of DHW . | JS 3/4" | JS 3/4" | JS 3/4" |
| Heating water connection | JS 3/4" | JS 3/4" | JS 3/4" |
| Maximum temperature of DHW . [°C] | 80 | 80 | 80 |
| Recommended temperature of DHW . [°C] | 60 | 60 | 60 |
| Connection voltage | 1 P-EN AC 230 V/50 Hz | 1 P-EN AC 230 V/50 Hz | 1 P-EN AC 230 V/50 Hz |
| Rated thermal output at heating water temperature 80 °C and flow rate 720 l/h [W] | 24 000 | 32 000 | 32 000 |
| Heating time from 10 °C to 60 °C [min] | 14 | 14 | 17 |
| Electrical protection rating | IP 44 | IP 44 | IP 44 |
| Heat loss [kWh/24 h] | 0.9 | 1.1 | 1.39 |
Additional parameters
| Category: | indirect-heated stationary square |
|---|---|
| Warranty: | 2 years |
| Weight: | 10 kg |
