DRAŽICE OKC 160 NTR/Z
Code: 1106508101Related products
Product detailed description

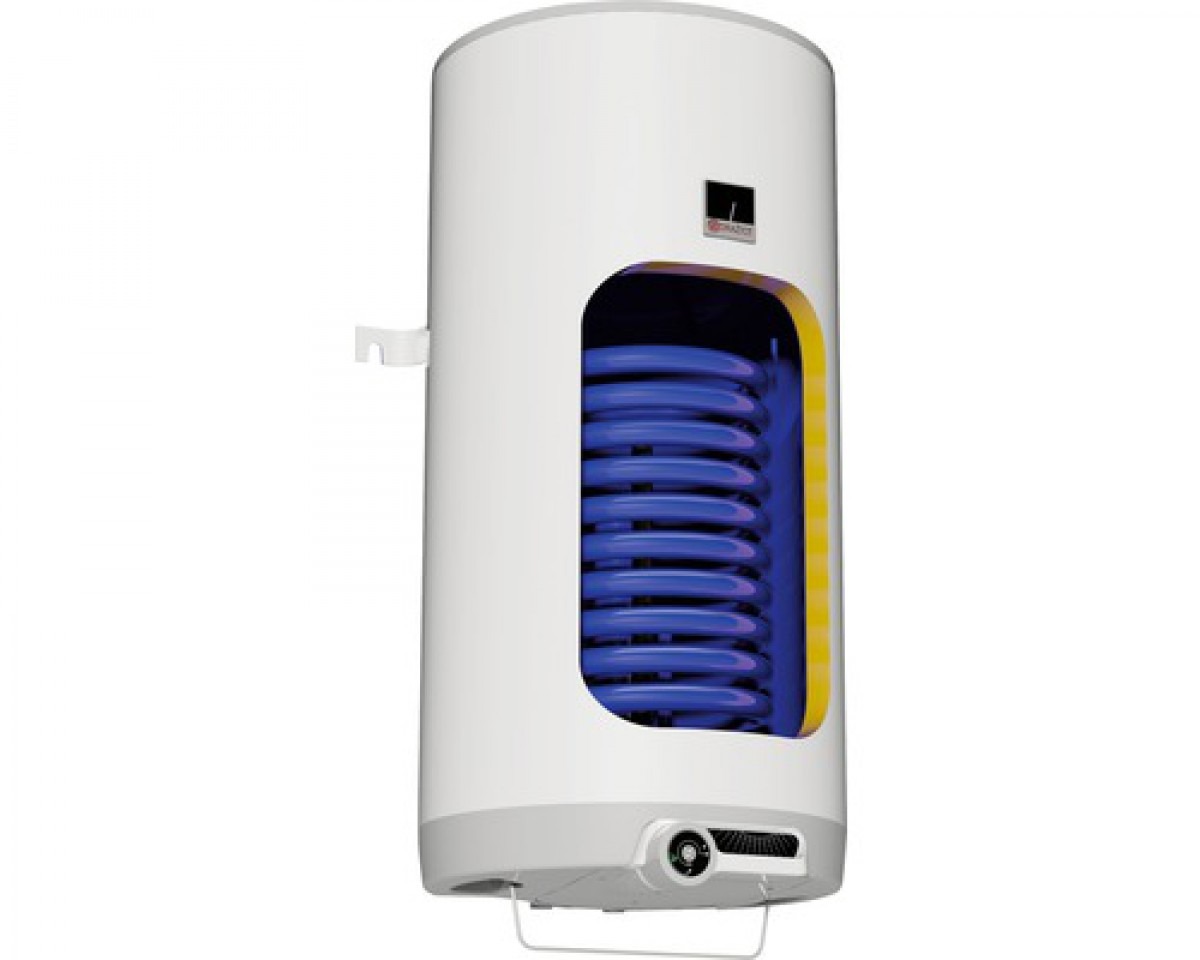

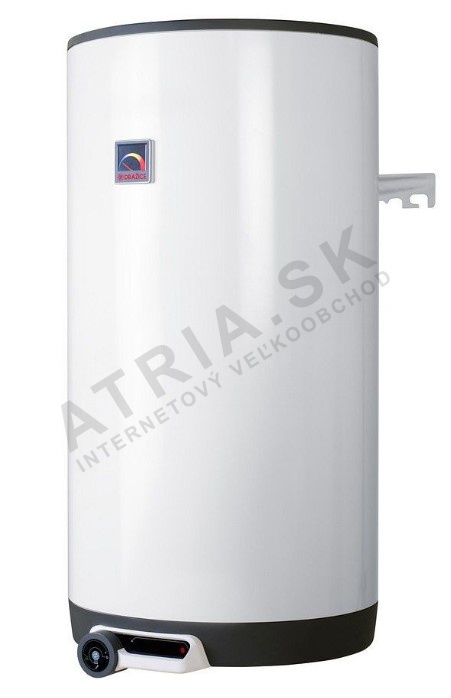

Indirect-heating storage water heater DRAŽICE OKC 160 NTR/Z
Indirectly heated enamelled water heater for wall mounting in volumes of 80-200 litres. Does not have electric heating.
Application:
- Indirect-heating water heater with a tubular coil heat exchanger - heating from an external heat source
- Supplying domestic hot water to households, apartments, family houses, small businesses, etc.
- Designed for year-round water heating from a gas boiler
- Vertical wall mounting - wall-mounted heater
- No electric heating
Designed for year-round water heating from a gas boiler or with solid fuel boilers.
Features:
- High-performance tubular exchanger - fast water heating
- Easy connection to all types of boilers
- High-performance exchanger ensures even and fast water heating
- Heating from an external source with a maximum temperature of 110°C and pressure of 1 MPa
- Built-in DHW regulation - thermostat for controlling a three-way valve or circulation pump
- Inner tank made of steel with special enamel
- Polyurethane insulation with minimal heat losses
- Magnesium anode protects against corrosion
- Built-in safety valve
- Circulation outlet
- For wall mounting in a vertical position
Technical parameters:
- Volume: 148 l
- Supply voltage: 230 V
- Protection rating: IP 45
- Active exchanger surface: 1 m2
- Rated output at heating water 80°C and flow rate of 720 l/h: 24000 W
- Heating time to 60°C at flow rate of 720 l/h: 23 min
- Maximum water temperature: 80°C
- Recommended temperature: 60°C
- Maximum tank overpressure: 0.6 MPa
- Maximum pressure in the exchanger: 1 MPa
- Heat losses: 1.39 kWh/24h
- DHW connection: 3/4"
- Heating water connection: 1"
- Heater height: 1235 mm
- Heater diameter: 524 mm
- Weight: 70 kg
Additional parameters
| Category: | vertical indirect-heated water heater - OKC/NTR Z |
|---|---|
| Warranty: | 2 years |
| Weight: | 70 kg |
| Active heat exchanger area: | 1 m² |
| DHW connection: | 3/4" |
| Doba ohrevu na 60°C pri prietoku 720 l/hod: | 23 min |
| Heat losses: | 1,39 kWh/24hod |
| Heater diameter: | 524 mm |
| Heating water connection: | 1" |
| Maximum pressure in heat exchanger: | 1 MPa |
| Maximum tank overpressure: | 0,6 MPa |
| Maximum water temperature: | 80°C |
| Nominal output at heating water temperature: | 80°C |
| Objem: | 148 l |
| Protection rating: | IP 45 |
| Recommended temperature: | 60°C |
| Supply voltage: | 230 V |
| Water heater height: | 1235 mm |
| Weight: | 70 kg |
