Dražice OKC 160 NTR
Code: 110670801Related products
Product detailed description

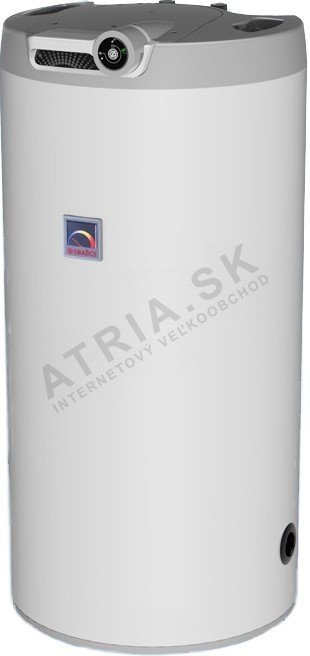

Indirectly heated stationary water heater/boiler Dražice OKC 160 NTR for water heating
Without side flange
Most common use:
Year-round DHW heating using heating water from a gas boiler for connection with priority DHW heating. For the OKC x NTRR type, a combination of a gas boiler and an alternative energy source is possible, or when connecting both heat exchangers in series, an indirectly heated storage tank for boilers over 24 kW.

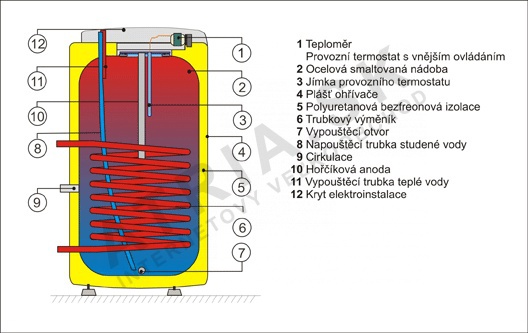

Indirectly heated floor-standing water heaters in volumes of 100–250 litres with an enamelled tank and a powerful heat exchanger for heating domestic hot water (DHW) from an external source. The 200-litre and 250-litre volumes are manufactured in a version with two heat exchangers for connecting two heating water sources (e.g. gas boiler + alternative source). By connecting both heat exchangers in series, a DHW source with an output of up to 44 kW can be achieved. The water heater is equipped with DHW heating temperature control (thermostat for controlling a three-way valve or circulation pump) for a voltage of 230 V/50 Hz, a safety valve and a circulation outlet.
| Type | OKC 100 NTR | OKC 125 NTR | OKC 160 NTR | OKC 200 NTR | OKC 250 NTR |
|---|---|---|---|---|---|
| Volume [l] | 95 | 115 | 145 | 210 | 250 |
| Weight [kg] | 57 | 69 | 77 | 95 | 107 |
| Water heater height [mm] | 881 | 1 046 | 1 235 | 1 330 | 1508 |
| Water heater diameter [mm] | 524 | 524 | 524 | 584 | 584 |
| Heat transfer surface [m2] | 1.08 | 1.45 | 1.45 | 1.45 | 1.45 |
| Maximum tank operating pressure [MPa] | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Maximum heat exchanger operating pressure [MPa] | 1 | 1 | 1 | 1 | 1 |
| Connection DHW . | JS 3/4" | JS 3/4" | JS 3/4" | JS 3/4" | JS 3/4" |
| Heating water connection | JS 1" | JS 1" | JS 1" | JS 1" | JS 1" |
| Maximum DHW temperature. [°C] | 80 | 80 | 80 | 80 | 80 |
| Recommended DHW temperature. [°C] | 60 | 60 | 60 | 60 | 60 |
| Connection voltage | 1 P-EN AC 230 V/50 Hz | 1 P-EN AC 230 V/50 Hz | 1 P-EN AC 230 V/50 Hz | 1 P-EN AC 230 V/50 Hz | 1 P-EN AC 230 V/50 Hz |
| Rated heat output at a heating water temperature of 80 °C and a flow rate of 720 l/h [W] | 24 000 | 32 000 | 32 000 | 32 000 | 32 000 |
| Heating time from 10 °C to 60 °C [min] | 14 | 17 | 23 | 28 | 36 |
| Electrical protection rating | IP 44 | IP 44 | IP 44 | IP 44 | IP 44 |
| Heat losses [kWh/24 h] | 0.9 | 1.1 | 1.39 | 1.4 | 1.73 |
Additional parameters
| Category: | indirect-heated stationary |
|---|---|
| Warranty: | 2 years |
| Weight: | 10 kg |
