Dražice OKC 80 NTR/Z

Indirectly heated enamelled water heater for wall mounting in volumes of 80-200 litres. Has no electric heating.

Use:

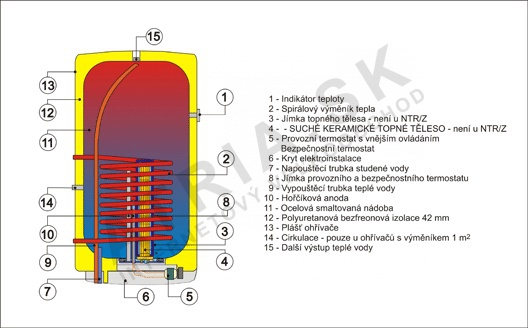

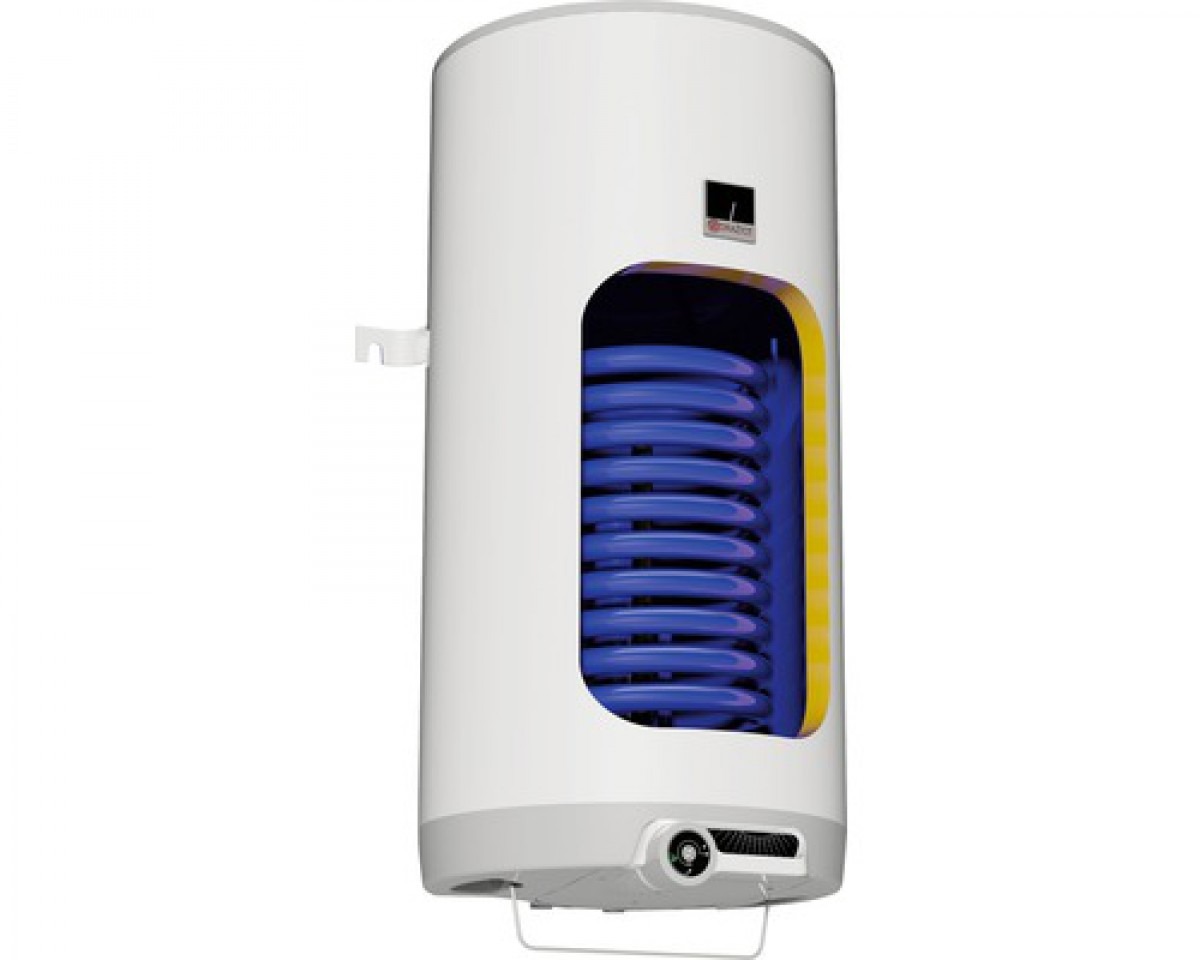

• Indirectly heated water heater with a tubular coil heat exchanger - heating from an external heat source
• Supplying domestic hot water to households, apartments, family houses, small businesses, etc.
• Designed for year-round water heating from a gas boiler
• Vertical wall mounting - wall-mounted water heater
• Without electric heating

Designed for year-round water heating from a gas boiler or solid fuel boilers.

Features:

• Powerful tubular exchanger - fast water heating
• Easy connection to all types of boilers
• High-performance exchanger ensures even and fast water heating
• Heating from an external source with a maximum temperature of 110°C and pressure of 1 MPa
• Built-in DHW control - thermostat for controlling a three-way valve or circulation pump
• Inner tank made of steel with special enamel
• Polyurethane insulation with minimal heat losses
• Magnesium anode protects against corrosion
• Built-in safety valve
• Circulation outlet
• For wall mounting in vertical position

Designed for year-round water heating from a gas boiler or solid fuel boilers.


Technical parameters:

• Volume: 76 l

• Weight: 39 kg

• Heater height: 736 mm

• Heater diameter: 524 mm

• Heat exchange surface: 0.41 m2

• Maximum operating pressure of the tank: 0.6 MPa

• Maximum operating pressure of the exchanger: 1 MPa

• Max. hot water temperature: 80 °C

• Recommended DHW temperature: 60 °C

• Electrical protection: IP 45

• Connection voltage: 1 P-EN AC 230 V / 50 Hz

• Rated heat output at a heating water temperature of 80 °C and flow rate of 720 l/hour: 9,000 W

• Heating time by exchanger from 10 °C to 60 °C: 32 min.

• Static loss: 40 W
• DHW connection: 3/4"
• Heating water connection: 3/4"
